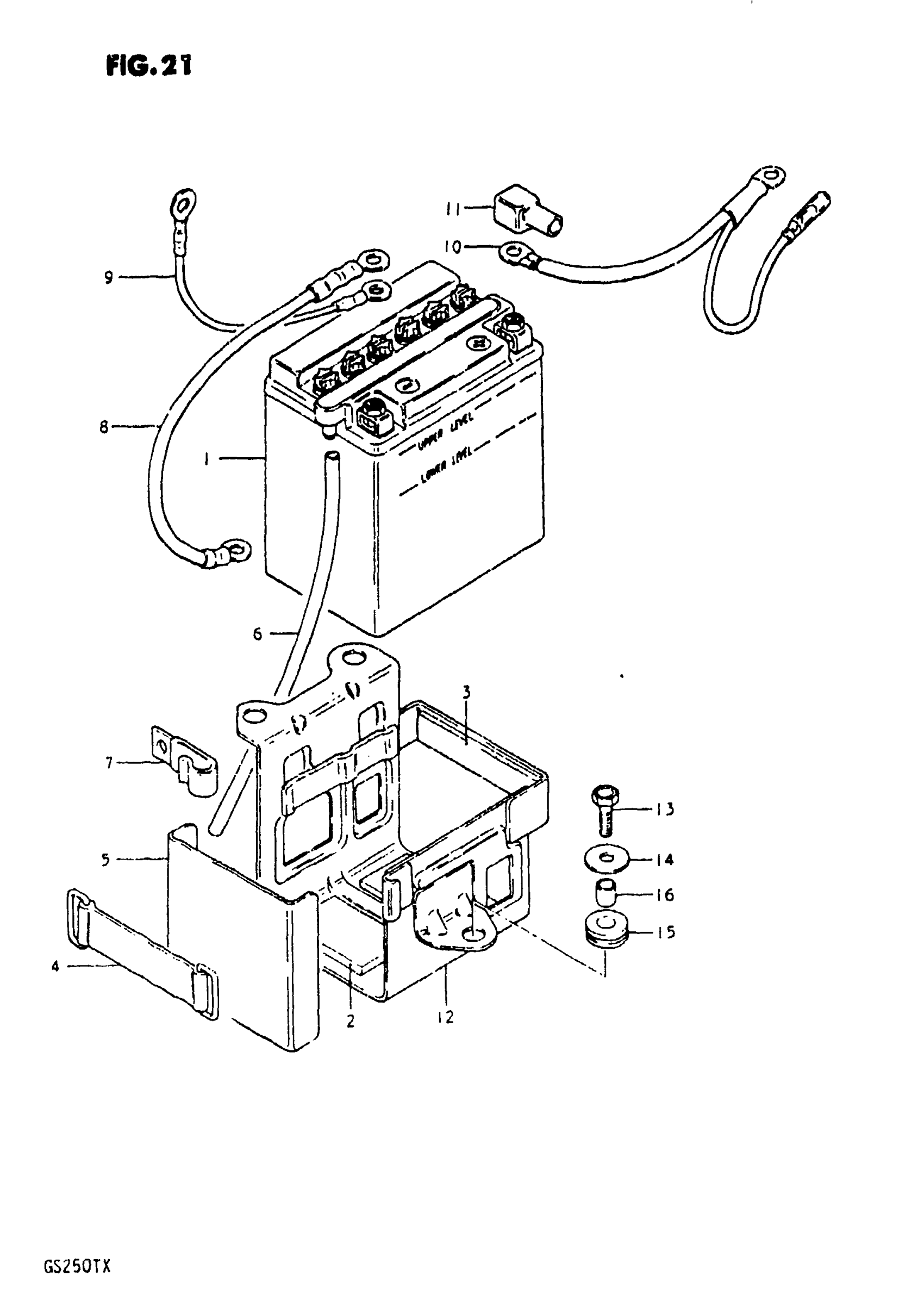

Suzuki GS250T (1981) BATTERY Diagram

#

Description
Price

1

BATTERY (12V, 10AH)

33610-44010

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 33651-25001.

94268-24A00

Unavailable

3

CUSHION, REAR FENDER REAR This part replaces 33652-29100.

33651-37000

$4.48

4

BAND

09462-00008

$4.77

5

COVER, BATTERY This part replaces 33661-44100.

33661-44101

Unavailable

6

HOSE,BATTERY EX This part replaces 33680-08401.

33680-16A11

$6.78

7

CLAMP This part replaces 09403-09303.

09403-09003

$2.20

8

LEAD WIRE, (-) This part replaces 33850-44120.

33850-03201

$9.94

9

LEAD WIRE, ENGINE (-) This part replaces 36852-44600.

36851-02331

Unavailable

10

WIRE,BATTERY PL | MODEL T This part replaces 33820-45001.

33820-44B01

Unavailable

10

WIRE,BATTERY PL | MODEL X This part replaces 33820-44100.

33820-44B01

Unavailable

11

CAP, TERMINAL

33624-45000

$4.58

12

HOLDER, BATTERY

41540-44100

Unavailable

13

BOLT This part replaces 01107-06208.

01500-06207

$2.28

14

WASHER This part replaces 09160-06007.

09160-06084

$1.78

15

CUSHION (8X18X10) This part replaces 09320-08001.

09320-08527

$2.06

16

SPACER (6.5X9X9) This part replaces 09180-06011.

09180-06263

$2.03
