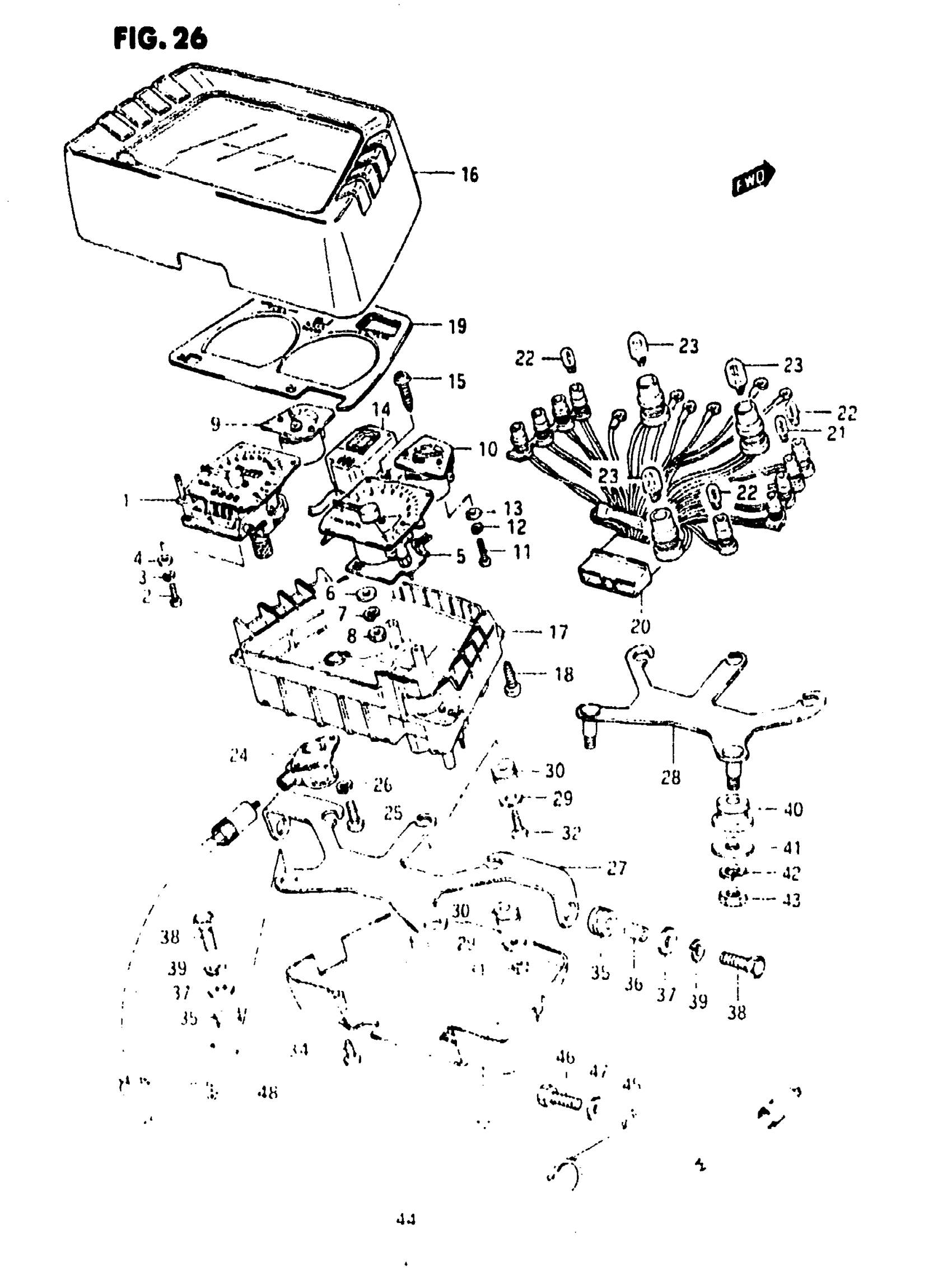

Suzuki GS1150EF (1986) SPEEDOMETER - TACHOMETER Diagram

#

Description
Price

1

SPEEDOMETER (MILE/KILO)

34120-00A31

Unavailable

2

SCREW This part replaces 02112-03106.

02112-0310B

$2.72

3

LOCK WASHER This part replaces 08321-21036.

08321-2103B

$1.49

4

WASHER This part replaces 08322-21036.

08322-0103B

$2.45

5

NO DESCRIPTION AVAILABLE This part replaces 34220-00A31.

34220-00A11

Unavailable

6

WASHER This part replaces 08322-21046.

08322-0104A

$1.91

7

LOCK WASHER

08321-31046

Unavailable

8

NUT This part replaces 08310-22048.

08310-00047

$2.23

9

FUELMETER

34320-00A11

Unavailable

10

OIL TEMPERATURE METER

34730-00A31

Unavailable

11

SCREW This part replaces 02112-03126.

02112-0312B

Unavailable

12

LOCK WASHER This part replaces 08321-21036.

08321-2103B

$1.49

13

WASHER This part replaces 08322-21036.

08322-0103B

$2.45

14

INDICATOR, GEAR POSITION

36450-49910

Unavailable

15

SCREW This part replaces 03212-04109.

03211-0410B

$1.93

16

HOOD SET, METER | GS1150ES3/ESE/ESF

34150-10830

Unavailable

16

HOOD, METER | GS1150EF/EF2/EG

34150-00A10

Unavailable

17

CASE, METER

34111-00A10

Unavailable

18

SCREW This part replaces 03212-04109.

03211-0410B

$1.93

19

PLATE, METER WINDOW

34153-00A10

Unavailable

20

SOCKET, METER

34170-00A10

Unavailable

21

BULB (12V,1.7W)

09471-12100

$4.13

22

BULB (12V,3W)

09471-12085

$5.01

23

BULB (12V,3.4W)

09471-12082

Unavailable

24

BOX, SPEEDOMETER GEAR

34131-49300

Unavailable

25

SCREW This part replaces 02112-04106.

02112-0410A

$1.49

26

LOCK WASHER This part replaces 08321-21046.

08321-0104A

$1.84

27

NO DESCRIPTION AVAILABLE | GS1150E53/ESE/ESF This part replaces 34950-10A10.

34950-10A11

Unavailable

28

BRACKET, METER | GS1150EF/EF2/EG

34950-00A10

Unavailable

29

WASHER (4.5X16X1.2) This part replaces 34181-49300.

09160-04026

$2.05

30

CUSHION

34955-28010

$3.84

31

NUT This part replaces 08310-22048.

08310-00047

$2.23

32

SCREW This part replaces 03142-04169.

03141-0416A

$2.27

33

COVER, LOWER | GS1150ES3/ESE/ESF

34193-10A10

Unavailable

33

COVER, LOWER | GS1150EF/EF2/EG

34193-00A10

Unavailable

34

SCREW This part replaces 03112-04125.

03111-0412A

$1.93

35

CUSHION | GS1150ES3/ESE/ESF

09320-09016

$1.97

36

SPACER (6.5X9X9) | GS1150ES3/ESE/ESF This part replaces 09180-06011.

09180-06263

$2.03

37

WASHER | GS1150ES3/ESE/ESF This part replaces 09160-06006.

09160-06084

$1.78

38

BOLT, GEAR SHIFT LINK | GS1150ES3/ESE/ESF This part replaces 01107-06206.

01500-0620A

$1.78

39

LOCK WASHER | GS1150ES3/ESE/ESF This part replaces 08321-21066.

08321-0106A

$1.84

40

CUSHION | GS1150EF/EF2/EG

34956-31001

$4.37

41

WASHER, EXHAUST SUPPORT | GS1150EF/EF2/EG This part replaces 09160-08057.

09160-08135

$2.35

42

LOCK WASHER | GS1150EF/EF2/EG This part replaces 08321-21084.

08321-0108A

$1.84

43

NUT | GS1150EF/EF2/EG This part replaces 08310-11085.

08310-0008A

$1.84

44

CABLE ASSY, SPE | GS1150ES3/ESE/ESF This part replaces 34910-10A01.

34910-08A00

Unavailable

44

CABLE ASSY,SPEE | GS1150EF/EF2/EG This part replaces 34910-33400.

34910-33401

Unavailable

45

GUIDE, METER CABLE

34938-45100

$6.57

46

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

47

WASHER This part replaces 08322-21067.

08322-01067

$2.13

48

GUIDE, METER CABLE

34938-00A10

Unavailable
