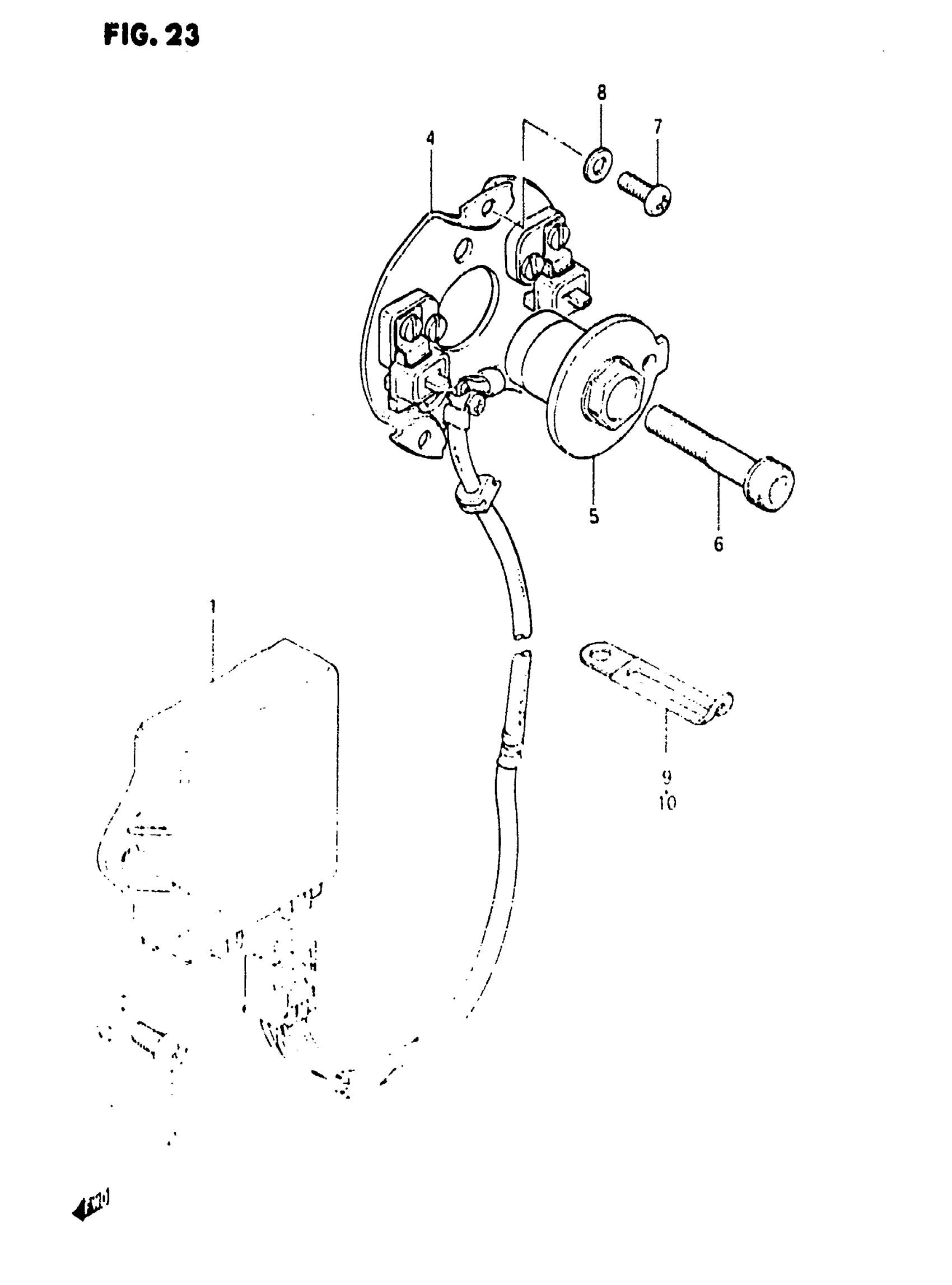

Suzuki GS1150EF (1986) SIGNAL GENERATOR Diagram

#

Description

Price

1

IGNITER UNIT

32900-00A10

Unavailable

2

SCREW This part replaces 02112-06166.

02112-0616A

$1.46

3

.WASHER This part replaces 08322-21066.

08322-0106B

$2.31

4

STATOR, SIG GEN This part replaces 33110-49421.

33110-493A0

$382.73

5

GOVERNOR ASSY, ADVANCE

33120-00A10

Unavailable

6

BOLT, MUFFLER SUPPORT This part replaces 07110-08456.

07130-0845B

$1.53

7

SCREW

09125-05024

$1.87

8

WASHER This part replaces 09160-05028.

08322-01057

$1.93

9

CLAMP This part replaces 09404-06401.

09404-06039

$1.79

10

CLAMP This part replaces 09404-08402.

09404-08420

$3.00
