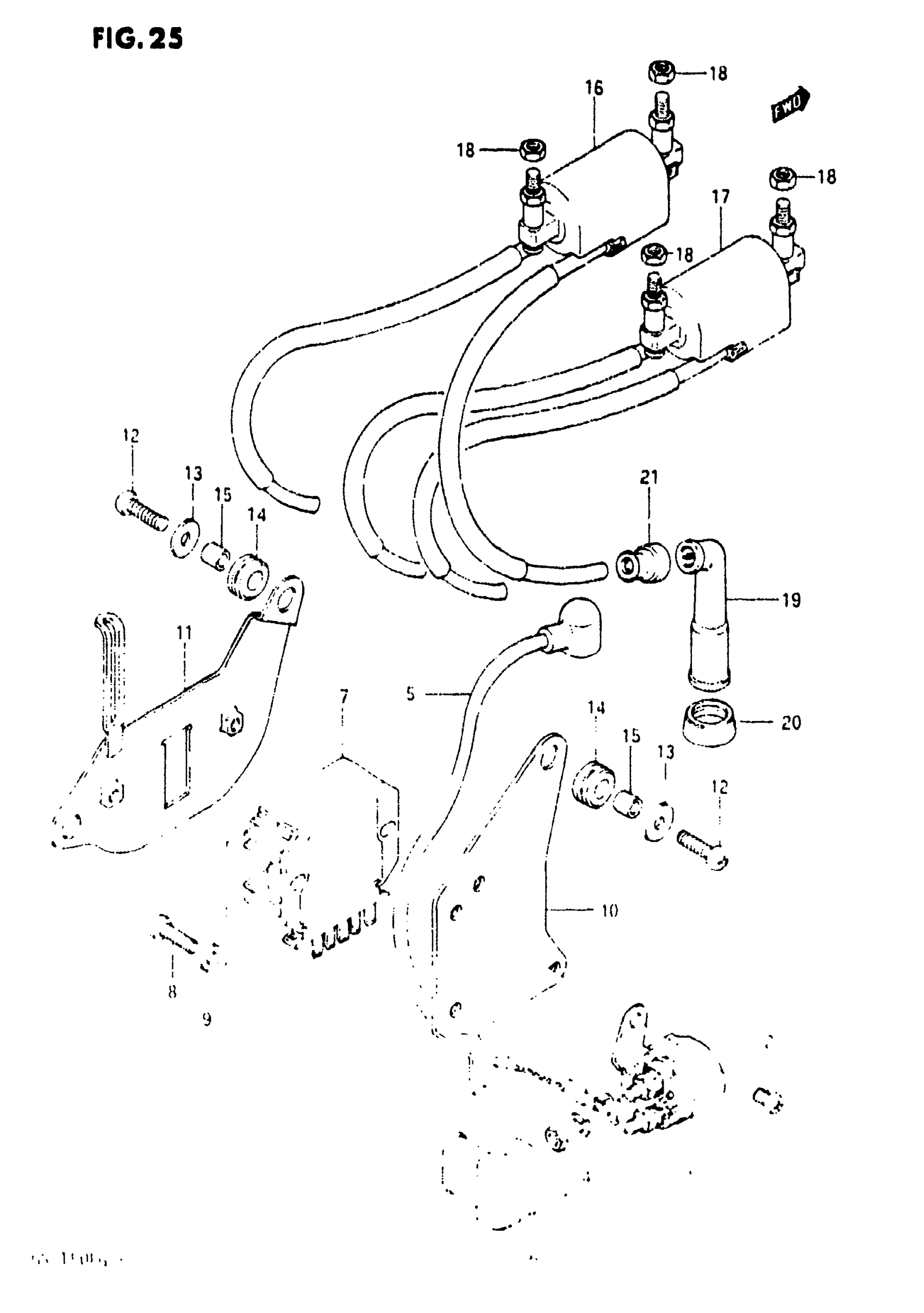

Suzuki GS1150EF (1986) ELECTRICAL Diagram

#

Description
Price

1

RELAY, STARTING MOTOR

31800-49100

$89.07

2

SCREW This part replaces 02112-06106.

02112-0610B

$1.83

3

NUT This part replaces 08310-11066.

08310-0006A

$1.83

4

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.83

5

WIRE, STARTING LEAD This part replaces 33850-00A00.

33850-00A01

Unavailable

6

CAP, TERMINAL This part replaces 33624-00A00.

33624-00A10

Unavailable

7

RECTIFIER ASSY This part replaces 32800-00A00.

32800-04A01

Unavailable

8

SCREW This part replaces 02112-06206.

02112-0620A

$1.45

9

.WASHER This part replaces 08322-21066.

08322-0106B

$2.24

10

PLATE, PARTS HOLDER, RH

47410-00A00

Unavailable

11

PLATE, PARTS HOLDER, LH

47420-00A00

Unavailable

12

SCREW This part replaces 02112-06168.

02112-06167

$1.43

13

WASHER This part replaces 09160-06007.

09160-06084

$1.77

14

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.70

15

SPACER This part replaces 09180-06027.

09180-06258

$1.82

16

COIL ASSY, IGNI | GS1150E53/ESE This part replaces 33410-00A00.

33410-31311

$210.93

16

COIL ASSY, IGNI | MODEL F/F2/G This part replaces 33410-31310.

33410-31311

$210.93

17

COIL ASSY, IGNI | GS1150ES3/ESE This part replaces 33420-00A00.

33410-31311

$210.93

17

COIL ASSY, IGNI | MODEL F/F2/G This part replaces 33420-31310.

33410-31311

$210.93

18

NUT This part replaces 08310-11066.

08310-0006A

$1.83

19

CAP, SPARK PLUG (L) This part replaces 33510-00A00.

33510-45010

$23.52

20

SEAL, SPARK PLUG This part replaces 33541-24510.

33541-47D00

$7.16

21

SEAL,HIGH TENSION CORD (SIDE) This part replaces 33542-98000.

33542-38B00

$3.97
