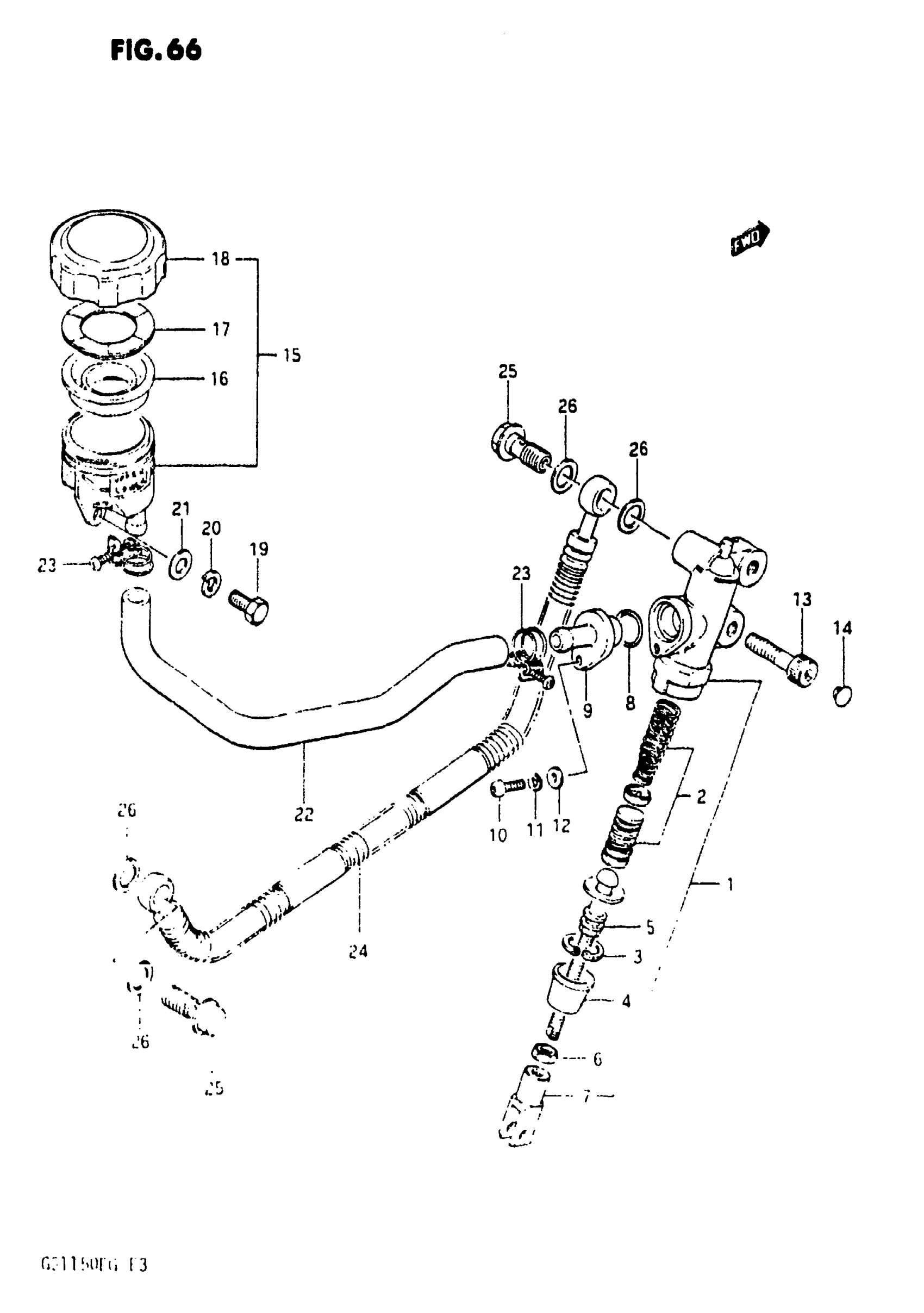

Suzuki GS1150EF (1986) REAR MASTER CYLINDER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 12 This part replaces 69600-00A00.

69600-00A01

Unavailable

2

PISTON & CUP SET

69600-34810

$56.48

3

CIRCLIP

51162-70040

$3.25

4

.BOOT

69691-00A00

$5.30

5

ROD, PUSH

69670-00A00

Unavailable

6

NUT This part replaces 69693-34300.

69693-05A00

$1.96

7

YOKE

69692-34300

Unavailable

8

O RING

69686-34200

$2.93

9

CONNECTOR

69672-00A00

Unavailable

10

SCREW This part replaces 02112-04124.

02112-0412A

$1.49

11

LOCK WASHER This part replaces 08321-21045.

08321-0104A

$1.84

12

WASHER This part replaces 08322-21045.

08322-0104A

$1.91

13

BOLT This part replaces 07110-08358.

07130-08357

$3.18

14

CAP This part replaces 09250-06008.

09250-06016

$1.96

15

TANK ASSY,RR RS | Includes Item(s) 16 - 18 This part replaces 69740-34250.

69740-31D00

Unavailable

16

DIAPHRAGM

59667-18441

$10.28

17

PLATE

59668-18441

$4.52

18

CAP

59669-39110

Unavailable

19

BOLT This part replaces 01107-06165.

01500-0616A

$1.78

20

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

21

.WASHER This part replaces 08322-21064.

08322-0106B

$2.26

22

HOSE

69731-00A00

Unavailable

23

CLAMP This part replaces 09400-16302.

09400-16304

$3.10

24

HOSE, REAR BRAKE

69480-00A01

Unavailable

25

BOLT

09360-10017

$3.42

26

WASHER (10X15X1.5)

09161-10009

$1.84
