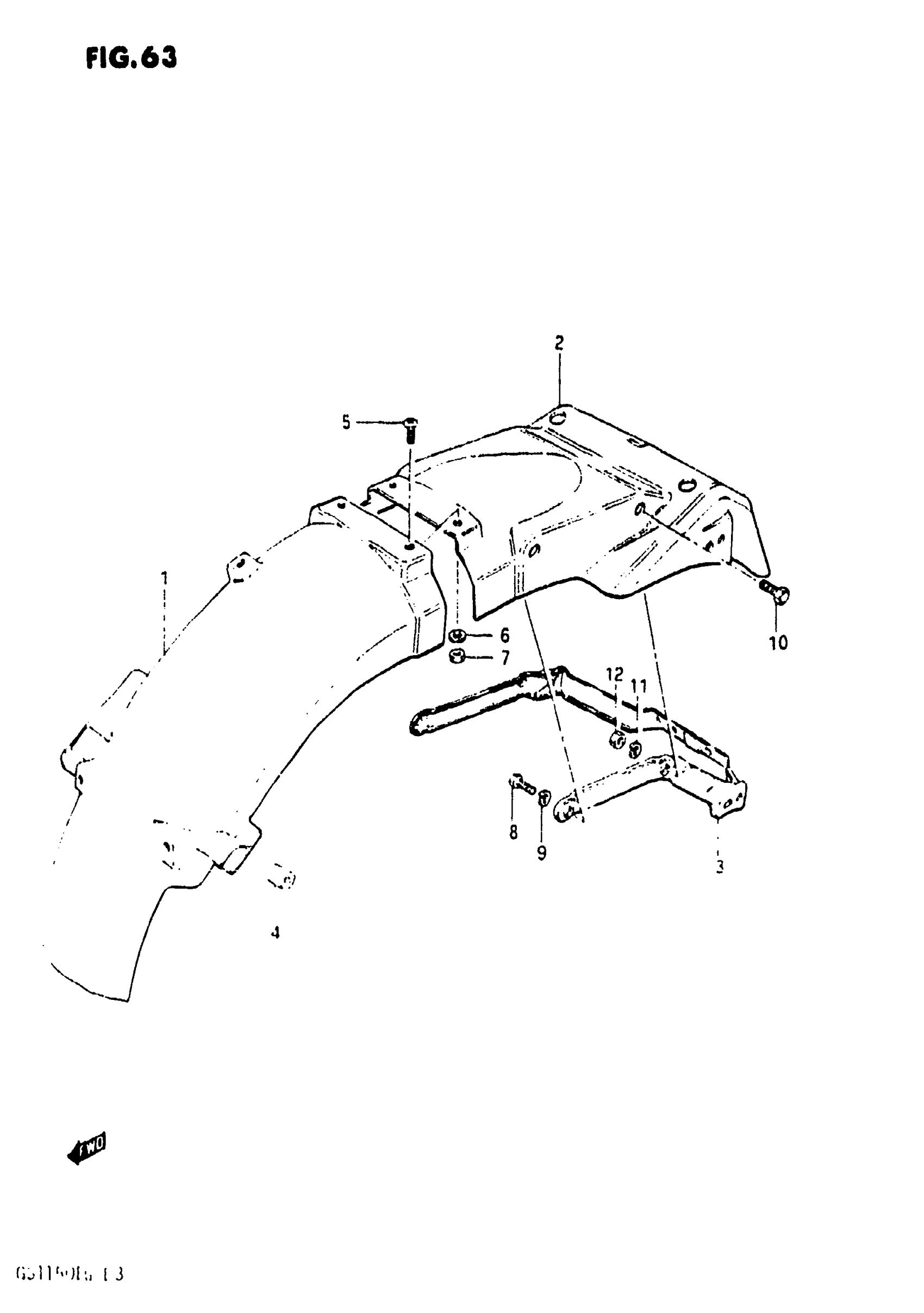

Suzuki GS1150EF (1986) REAR FENDER Diagram

#

Description
Price

1

FRONT, REAR FENDER | GS1150ES3/ESE This part replaces 63112-00A00.

63112-00A01

Unavailable

1

FRONT, REAR FENDER | MODEL F/F2/G; OTHER THAN CALIFORNIA

63112-00A01

Unavailable

1

(CA) FRONT, REAR FENDER | MODEL F/F2; CALIFORNIA ONLY

63112-00A10

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 63113-00A00.

63113-00X50

Unavailable

3

REINFORCEMENT

63120-00A01

Unavailable

4

CUSHION This part replaces 09329-05003.

09329-05009

$2.37

5

.SCREW This part replaces 02142-05124.

02142-0512A

$1.49

6

WASHER (5.5X16X1.2) This part replaces 09160-05017.

09160-05043

$2.30

7

NUT This part replaces 08310-11056.

08310-0005A

$1.84

8

BOLT This part replaces 01107-06166.

01500-0616A

$1.78

9

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.84

10

BOLT This part replaces 01107-08206.

01500-0820A

$2.28

11

LOCK WASHER This part replaces 08321-21086.

08321-0108A

$1.84

12

NUT This part replaces 08310-12088.

08310-00087

$2.13
