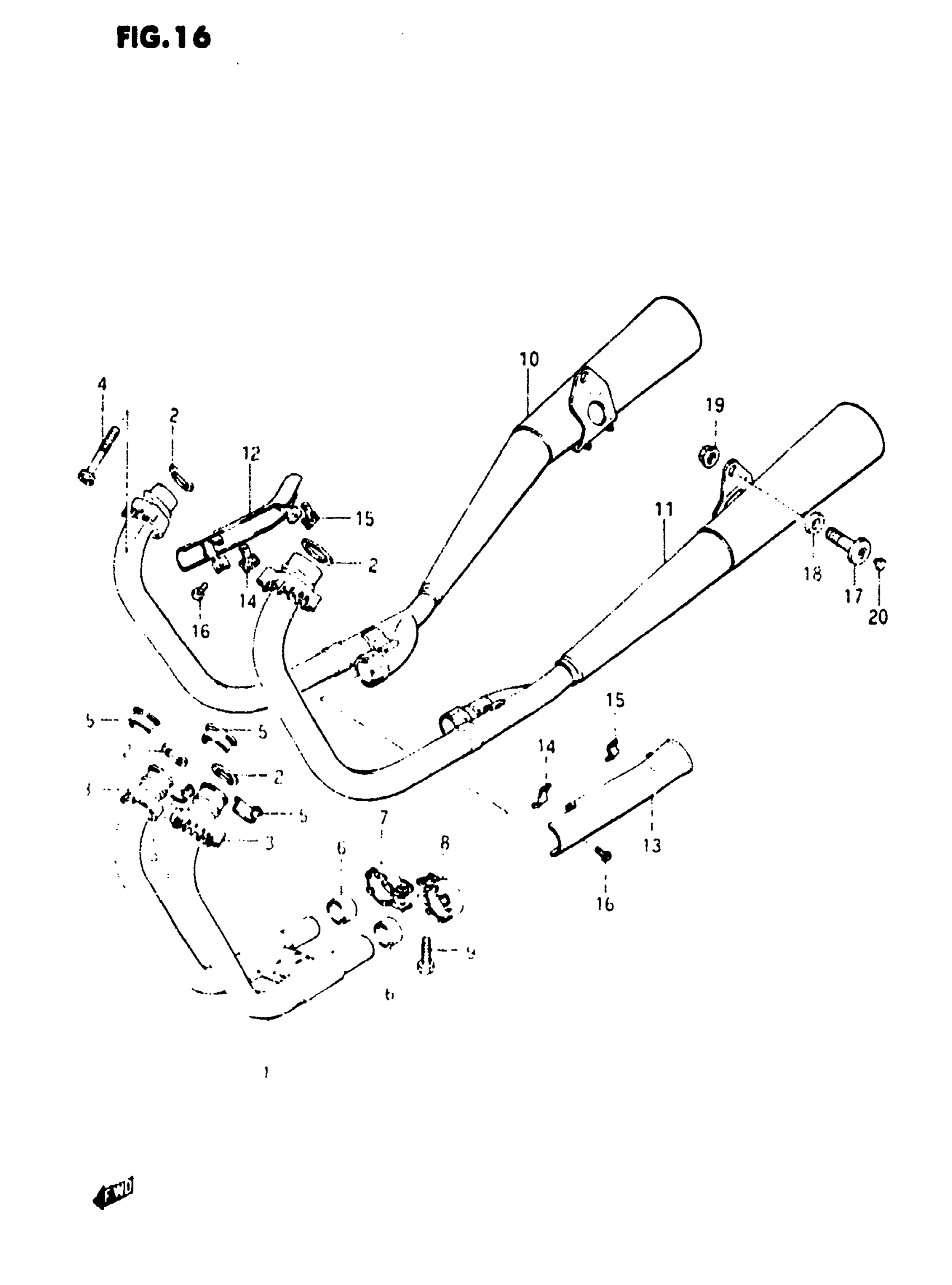

Suzuki GS1150EF (1986) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST CENTER

14100-00A01-H01

Unavailable

2

GASKET, EXHAUST PIPE This part replaces 14181-11020.

14181-01D00

$7.11

3

CLAMP

14182-49011

Unavailable

4

BOLT This part replaces 09106-08052.

07130-0840B

$3.91

5

PLATE, EXHAUST PIPE

14155-49000

$5.02

6

CONNECTOR,MUFF( This part replaces 14771-00A01.

14771-00A01-H17

Unavailable

7

CLAMP, MUFFLER CONNECTOR RH This part replaces 14459-31300.

14459-26D10

Unavailable

8

CLAMP, MUFFLER CONNECTOR LH This part replaces 14469-31300.

14469-26D10

Unavailable

9

BOLT This part replaces 01517-08254.

01550-0825A

$2.32

10

NO DESCRIPTION AVAILABLE This part replaces 14301-00A14-H01.

14301-00A25-H01

Unavailable

11

NO DESCRIPTION AVAILABLE This part replaces 14302-00A14-H01.

14302-00A25-H01

Unavailable

12

COVER, MUFFLER RH

14780-00A01

Unavailable

13

COVER, MUFFLER LH

14790-00A01

Unavailable

14

CLAMP

14785-00A00

Unavailable

15

CLAMP, REAR

14785-00A10

Unavailable

16

SCREW This part replaces 02112-05165.

02112-05164

$2.63

17

BOLT

09106-10015

Unavailable

18

WASHER (10.5X20X3.2)

09160-10005

$1.87

19

NUT This part replaces 08316-16105.

08316-1010B

$2.66

20

CAP

43575-34500

$1.72
