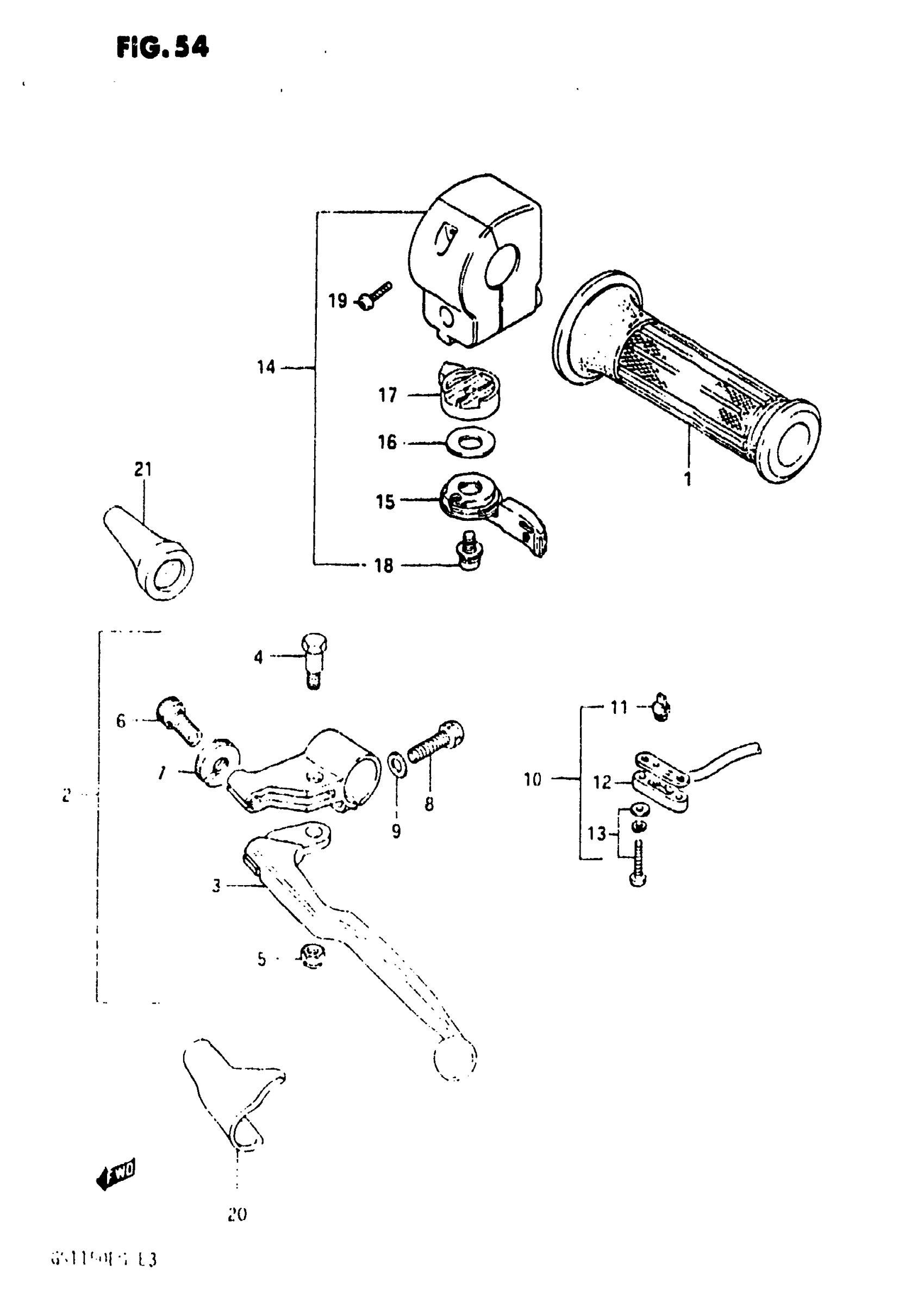

Suzuki GS1150EF (1986) LEFT HANDLE SWITCH (GS1150ES3/ESE/ESF) Diagram

#

Description
Price

1

GRIP, LH

57211-49500

$13.95

2

LEVER, CLUTCH | Includes Item(s) 3 - 13

57500-00A00

Unavailable

3

LEVER, CLUTCH

57620-49111

$23.23

4

BOLT

57431-49110

$6.31

5

.NUT This part replaces 08319-21065.

08319-2106B

$2.32

6

ADJUSTER, CABLE

57441-44400

$6.28

7

NUT This part replaces 57442-44400.

57442-11010

$2.79

8

BOLT

01204-06204

$2.72

9

.WASHER This part replaces 08322-21064.

08322-0106B

$2.26

10

SWITCH ASSY, CLUTCH This part replaces 57560-08A00.

57560-18D10

Unavailable

11

HOLDER

57465-18601

$4.34

12

COVER

57481-33010

$5.84

13

SCREW This part replaces 09125-03105.

09125-03105-XC0

$2.23

14

SWITCH ASSY,HAN | Includes Item(s) 15 - 19 This part replaces 37400-49573.

37400-45373

Unavailable

15

LEVER, STARTER

58721-27503

$7.51

16

WASHER

58722-03010

$3.71

17

BODY

37572-49441

$13.74

18

SCREW This part replaces 37574-49440.

02112-7516A

$2.41

19

SCREW This part replaces 02112-05165.

02112-05164

$2.63

20

COVER, CLUTCH LEVER

57661-31000

$7.25

21

BOOT, CLUTCH CABLE This part replaces 58273-31000.

58273-31001

$2.22
