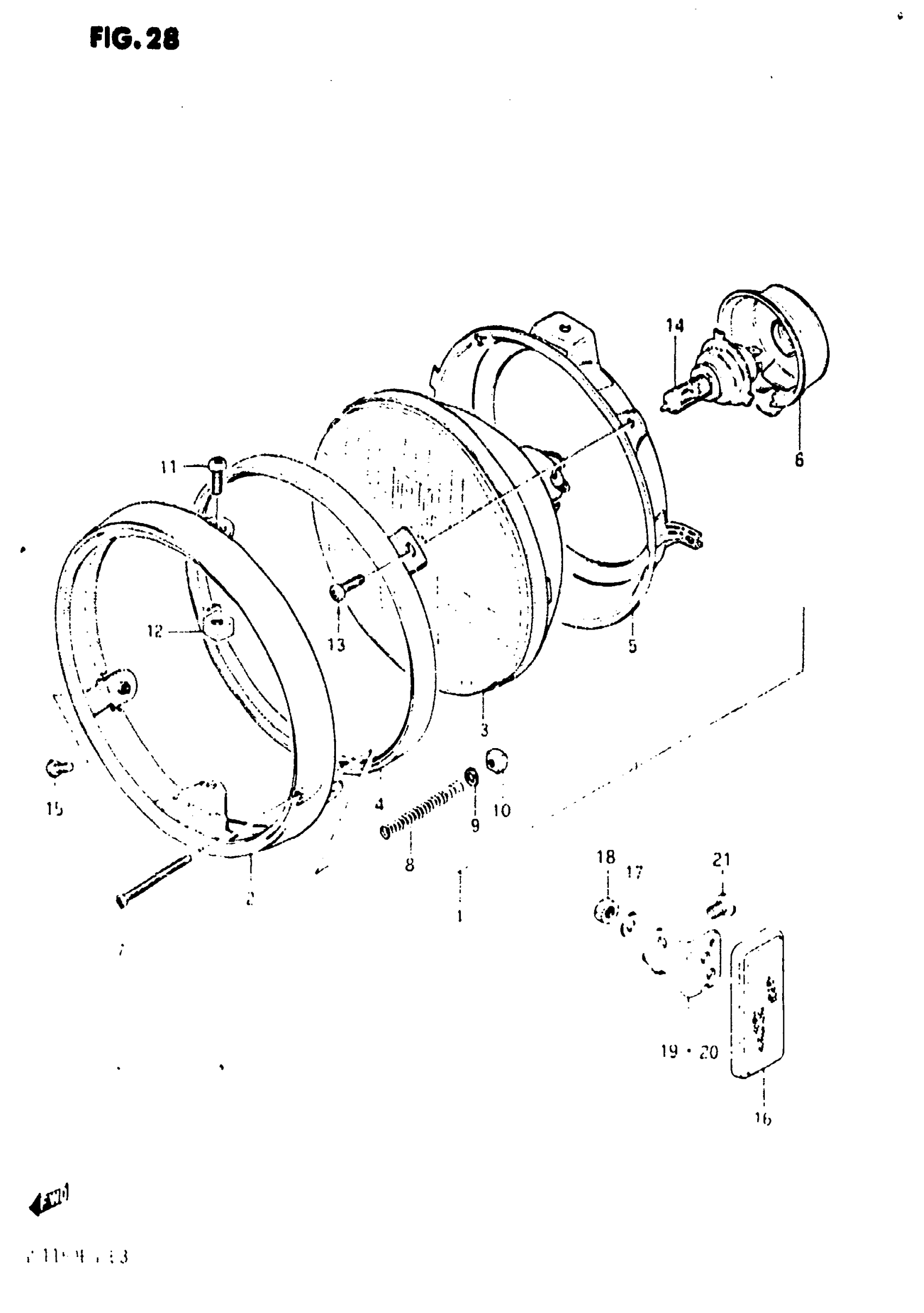

Suzuki GS1150EF (1986) HEADLAMP (GS1150EF/EF2/EG) Diagram

#

Description
Price

1

HEADLAMP ASSY | Includes Item(s) 2 - 14

35100-00A30-999

Unavailable

2

RIM This part replaces 35111-00A20.

35111-45900

Unavailable

3

UNIT

35121-45930

Unavailable

4

RING

35127-45900

Unavailable

5

RING, MOUNTING

35130-45900

Unavailable

6

COVER, SOCKET This part replaces 35173-49200.

35173-38A00

$16.87

7

SCREW

35151-45900

$3.65

8

SPRING This part replaces 35154-45900.

35154-49200

$5.50

9

WASHER

35157-27630

$3.25

10

NUT

35135-45600

$3.65

11

SCREW This part replaces 02112-05128.

02112-05127

$1.97

12

NUT

35135-45900

$3.25

13

SCREW This part replaces 02112-04088.

02112-04087

$1.49

14

BULB (12V,60/55W,H4)

09471-12060

$25.15

15

SCREW This part replaces 02132-05124.

02122-0512A

$1.86

16

REFLEX REFLECTOR, FRONT SIDE

35950-43431

$17.83

17

WASHER, FRONT This part replaces 08322-21055.

08322-0105A

$1.84

18

NUT This part replaces 08310-12055.

08310-0005A

$1.84

19

BRACKET, RH

35956-00A00

Unavailable

20

BRACKET, LH

35957-00A00

Unavailable

21

SCREW This part replaces 02142-05085.

02142-0508A

$1.49
