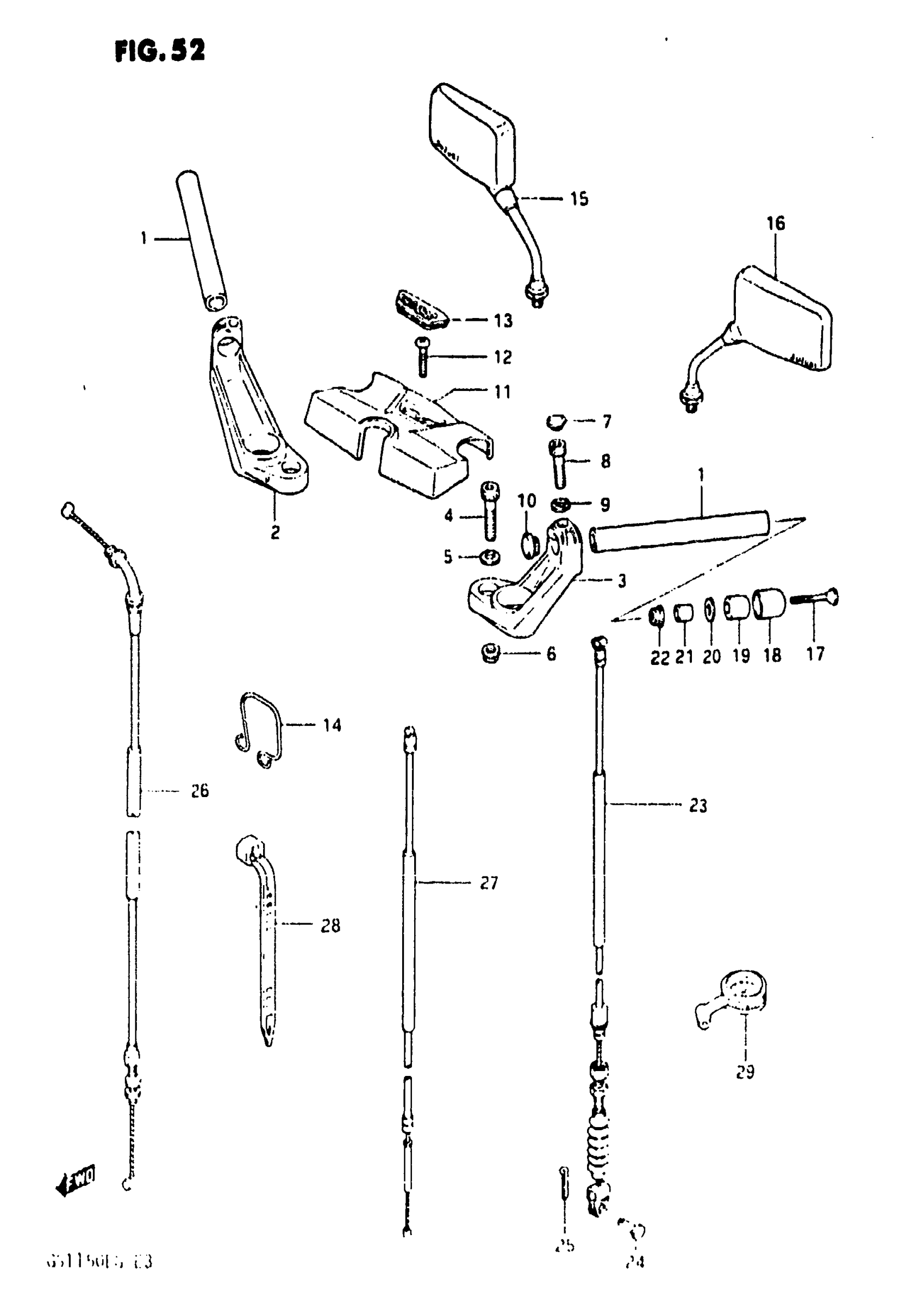

Suzuki GS1150EF (1986) HANDLEBAR (GS1150EF/EF2/EG) Diagram

#

Description
Price

1

HANDLEBAR

56111-00A00

Unavailable

2

HOLDER, RH (NEUTRAL TYPE)

56211-00A20

Unavailable

3

HOLDER, LH (NEUTRAL TYPE)

56221-00A20

Unavailable

4

BOLT

09106-10023

$5.78

5

WASHER This part replaces 09164-10005.

09164-10010

$4.83

6

NUT This part replaces 08319-31105.

08319-3110A

$2.73

7

CAP, BOLT HANDLEBAR

09250-06004

$1.49

8

BOLT This part replaces 07110-08355.

07130-0835B

$4.60

9

WASHER

09164-08015

$3.21

10

CAP This part replaces 57215-43401.

57215-33400

$5.50

11

PAD, HANDLE

56170-00A00

Unavailable

12

SCREW This part replaces 02112-06168.

02112-06167

$1.49

13

CAP, HANDLE PAD

56174-00A00

Unavailable

14

GUIDE, CABLE & HARNESS

58621-31310

Unavailable

15

MIRROR ASSY,RH This part replaces 56500-45401.

56500-43451

Unavailable

16

NO DESCRIPTION AVAILABLE This part replaces 56600-45401.

56600-43451

Unavailable

17

SCREW This part replaces 02132-06555.

02122-0655B

$2.83

18

CAP

56274-04700

Unavailable

19

BALANCER

56271-49410

$30.95

20

SPACER This part replaces 56275-34400.

56275-34401

$4.02

21

EXPANDER

56272-44500

$4.42

22

NUT

09159-06024

$2.11

23

CABLE, CLUTCH (NEUTRAL TYPE)

58200-00A10

Unavailable

24

PIN, CLUTCH CABLE

09200-06011

Unavailable

25

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

26

CABLE, THROTTL (NEUTRAL TYPE)

58300-00A10

Unavailable

27

NO DESCRIPTION AVAILABLE This part replaces 58410-00A10.

58410-00X01

Unavailable

28

CLAMP

09407-18402

$2.19

29

GAUGE, FRONT FORK AIR

96200-41330

Unavailable
