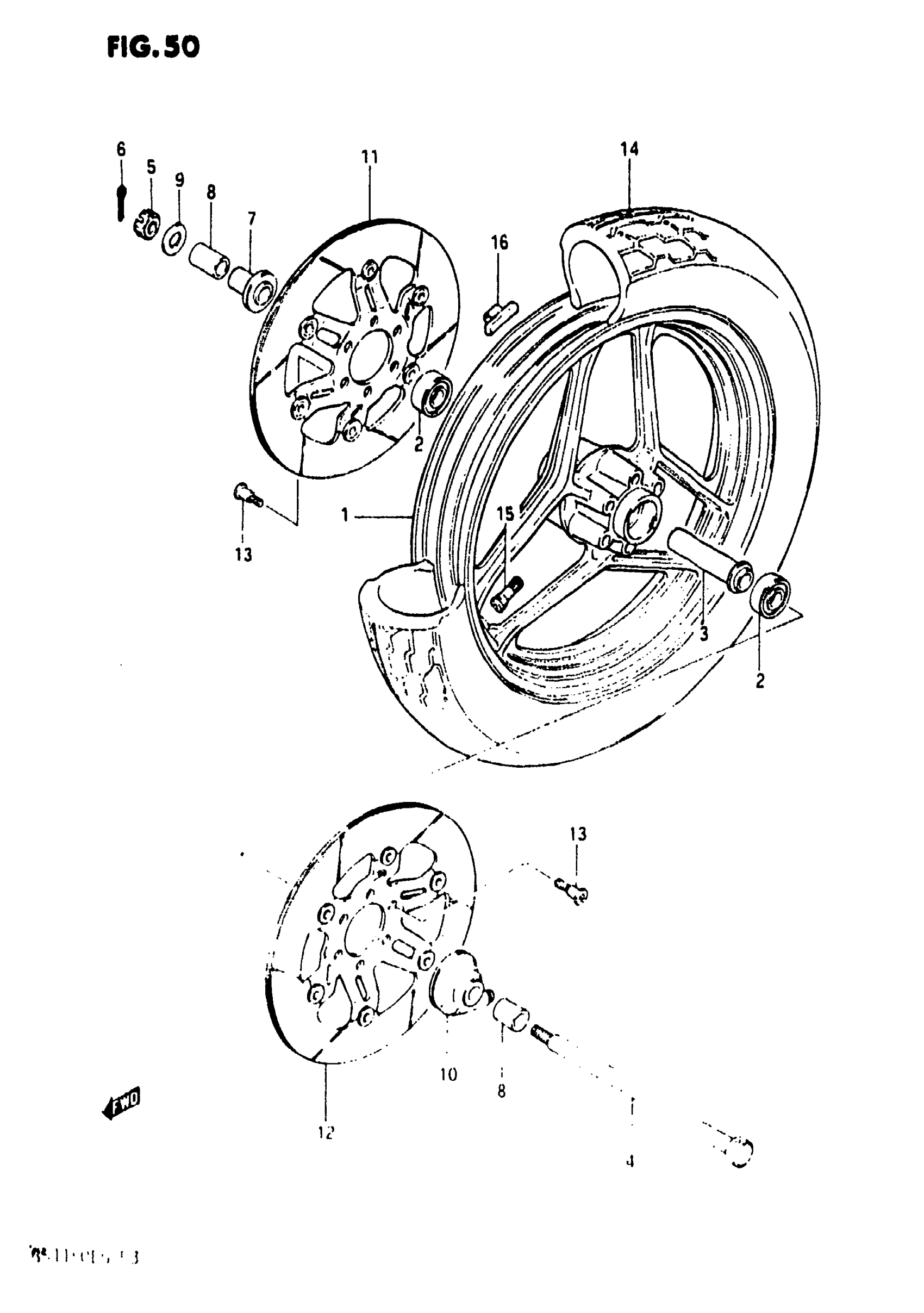

Suzuki GS1150EF (1986) FRONT WHEEL Diagram

#

Description
Price

1

WHEEL, FRONT (2.50x16) BLACK | GS1150ES3/ESE

54111-00A00-291

Unavailable

1

WHEEL, FRONT (2.75x16) BLACK | MODEL F/F2/G

54111-00A20-291

Unavailable

2

BEARING This part replaces 08123-63027.

08123-6302B

$22.74

3

SPACER

54730-00A00

Unavailable

4

AXLE, FRONT

54711-00A00

Unavailable

5

NUT This part replaces 08314-31128.

08314-3112A

$2.41

6

PIN This part replaces 04111-30308.

04111-3030A

$1.49

7

SPACER, BEARING RH

54740-18402

Unavailable

8

SPACER, AXLE (15X22X30)

09180-15034

Unavailable

9

WASHER This part replaces 08322-21128.

08322-01127

$1.84

10

BOX, SPEEDOMETER GEAR

54600-00A00

Unavailable

11

DISC, FRONT BRAKE RH | GS1150ES3/MODEL E/F/F2 This part replaces 59210-00A00.

59210-00A01

Unavailable

11

DISC, FRONT BRAKE RH | MODEL G

59210-00A01

Unavailable

12

DISC, FRONT BRAKE LH | GS1150ES3/MODEL E/F/F2 This part replaces 59220-00A00.

59220-00A01

Unavailable

12

DISC, FRONT BRAKE LH | MODEL G

59220-00A01

Unavailable

13

BOLT (8X33) | GS1150ES3/MODEL E/F/F2 This part replaces 09106-08041.

09106-08148

$4.80

14

BOLT | MODEL G

55100-00A35

Unavailable

14

TIRE, T/L (110/90V16) BS | GS1150ES3/ESE

55100-00A10

Unavailable

15

VALVE ASSY, WHEEL RIM This part replaces 43130-75150.

43130-78030

$9.25

16

BALANCER (10G) This part replaces 55411-00A00-291.

55411-00A00

$1.49

16

BALANCER, WHEEL NO.2 This part replaces 55412-00A00-291.

55412-17G00

$7.05

16

BALANCER (30G) This part replaces 55413-00A00-291.

55413-00A01

Unavailable
