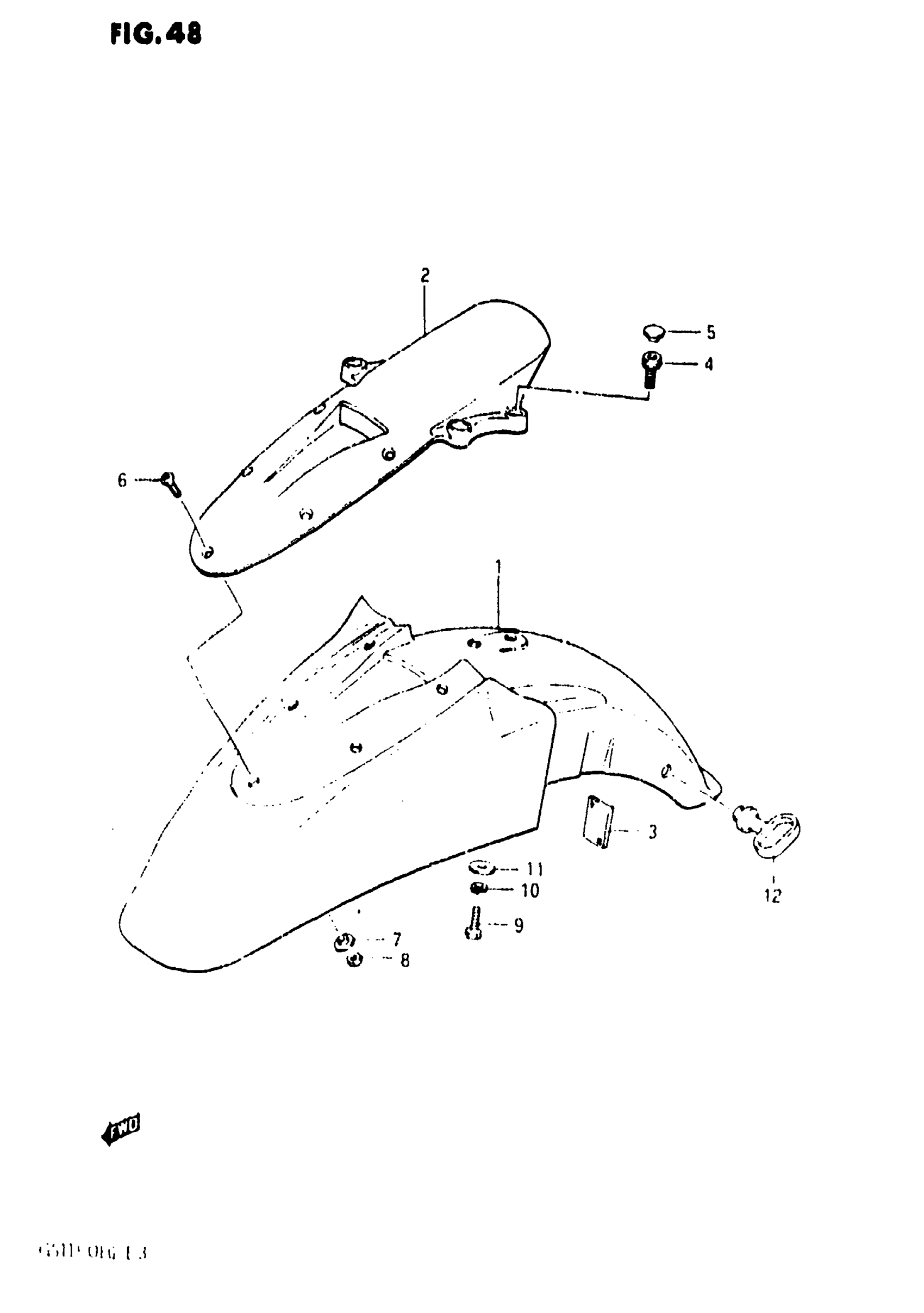

Suzuki GS1150EF (1986) FRONT FENDER (GS1150ES3/ESE/ESF) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | GS1150ES3/ESE This part replaces 53111-00A00-04Y.

53111-00A20-13L

Unavailable

1

NO DESCRIPTION AVAILABLE | GS1150ES3/ESE This part replaces 53111-00A00-17R.

53111-00A20-13L

Unavailable

1

NO DESCRIPTION AVAILABLE | GS1150ESF This part replaces 53111-00A00-12F.

53111-00A20-13L

Unavailable

1

NO DESCRIPTION AVAILABLE | GS1150ESF This part replaces 53111-00A00-22P.

53111-00A20-13L

Unavailable

2

BRACE, FRONT FENDER

53114-00A00

Unavailable

3

CUSHION This part replaces 53431-00A00.

61374-08010

Unavailable

4

BOLT This part replaces 07110-08165.

07130-0816A

$3.16

5

CAP

09250-06004

$1.49

6

SCREW This part replaces 02132-05164.

02122-0516B

Unavailable

7

WASHER This part replaces 09169-05011.

09169-05024

$2.06

8

.NUT This part replaces 08319-21055.

08319-2105A

$2.19

9

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

10

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

11

WASHER This part replaces 09160-06007.

09160-06084

$1.78

12

GUIDE, METER CABLE This part replaces 58621-21203.

58621-21204

$6.68
