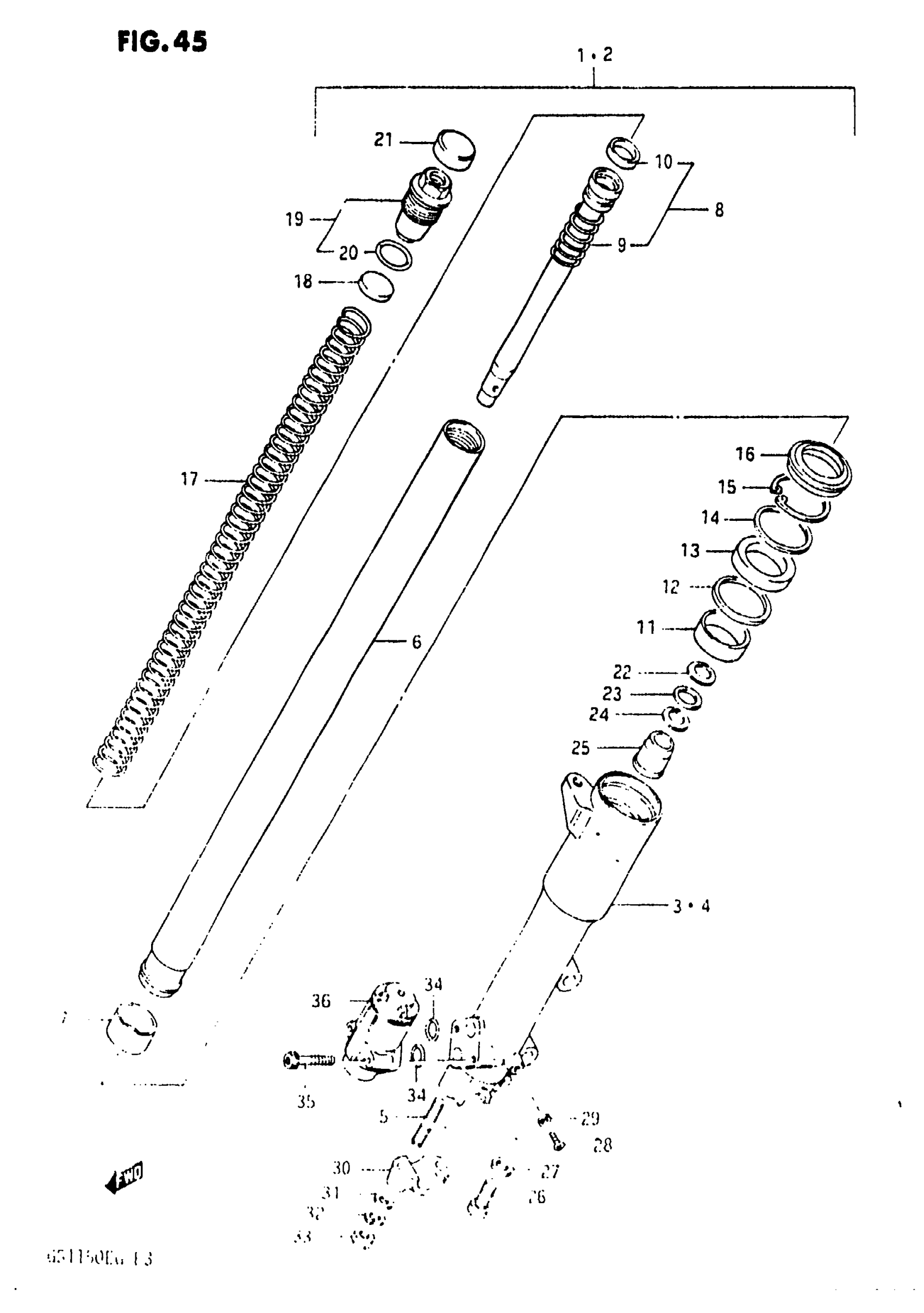

Suzuki GS1150EF (1986) FRONT DAMPER Diagram

#

Description
Price

1

DAMPER ASSY, RH | GS1150ES3/ESE/ESF

51103-00A40

Unavailable

1

DAMPER ASSY, RH | GS1150EF/EF2/EG

51103-00A10

Unavailable

2

DAMPER ASSY, LH | GS1150ES3/ESE/ESF

51104-00A40

Unavailable

2

DAMPER ASSY, LH | GS1150EF/EF2/EG; Includes Item(s) 3 - 36

51104-00A10

Unavailable

3

OUTER TUBE, RH (BLACK)

51130-00A00-15T

Unavailable

4

OUTER TUBE, LH (BLACK)

51140-00A00-15T

Unavailable

5

BOLT,STUD This part replaces 01411-08308.

01411-0830A

$2.28

6

INNER TUBE | GS1150ES3/ESE/ESF

51110-00A40

Unavailable

6

INNER TUBE | GS1150EF/EF2/EG

51110-00A10

Unavailable

7

PISTON

51121-49510

Unavailable

8

CYLINDER

51146-00A00

Unavailable

9

SPRING, REBOUND

51177-49200

Unavailable

10

RING, PISTON

51196-00A00

Unavailable

11

METAL, SLIDE This part replaces 51167-49510.

51167-01D00

$12.63

12

WASHER

51158-49500

$4.45

13

OIL SEAL

51153-00A00

Unavailable

14

WASHER

51158-00A00

Unavailable

15

SNAP RING

51156-40301

$5.05

16

DUST SEAL

51173-00A00

Unavailable

17

SPRING

51171-00A11

Unavailable

18

WASHER

51172-49540

Unavailable

19

CAP

51351-49540

$69.77

20

O RING

51117-38260

$3.78

21

CAP

51189-00A00

Unavailable

22

SPRING, LEAF

51125-45420

$3.65

23

WASHER

51123-45420

$3.65

24

SPRING, LEAF

51125-45420

$3.65

25

PIECE, OIL LOCK

51195-45420

Unavailable

26

BOLT

51147-16510

$4.34

27

GASKET

51148-41310

$2.26

28

SCREW This part replaces 02112-04085.

02112-0408A

$1.49

29

GASKET

51183-03010

$2.07

30

HOLDER, AXLE (BLACK)

51132-49500-15T

Unavailable

31

WASHER This part replaces 08322-11084.

08322-0108A

$1.92

32

LOCK WASHER This part replaces 08321-21084.

08321-0108A

$1.84

33

NUT This part replaces 08310-11085.

08310-0008A

$1.84

34

O RING This part replaces 51799-00A00.

51799-00A01

Unavailable

35

BOLT This part replaces 07110-06408.

07130-06407

$3.68

36

P.D.F ASSY

51770-00A10

Unavailable

30

HOLDER, AXLE (BLACK)

51132-49500-15T

Unavailable

31

WASHER This part replaces 08322-11084.

08322-0108A

$1.92

32

LOCK WASHER This part replaces 08321-21084.

08321-0108A

$1.84

33

NUT This part replaces 08310-11085.

08310-0008A

$1.84

34

O RING This part replaces 51799-00A00.

51799-00A01

Unavailable

35

BOLT This part replaces 07110-06408.

07130-06407

$3.68

36

P.D.F ASSY

51770-00A10

Unavailable
