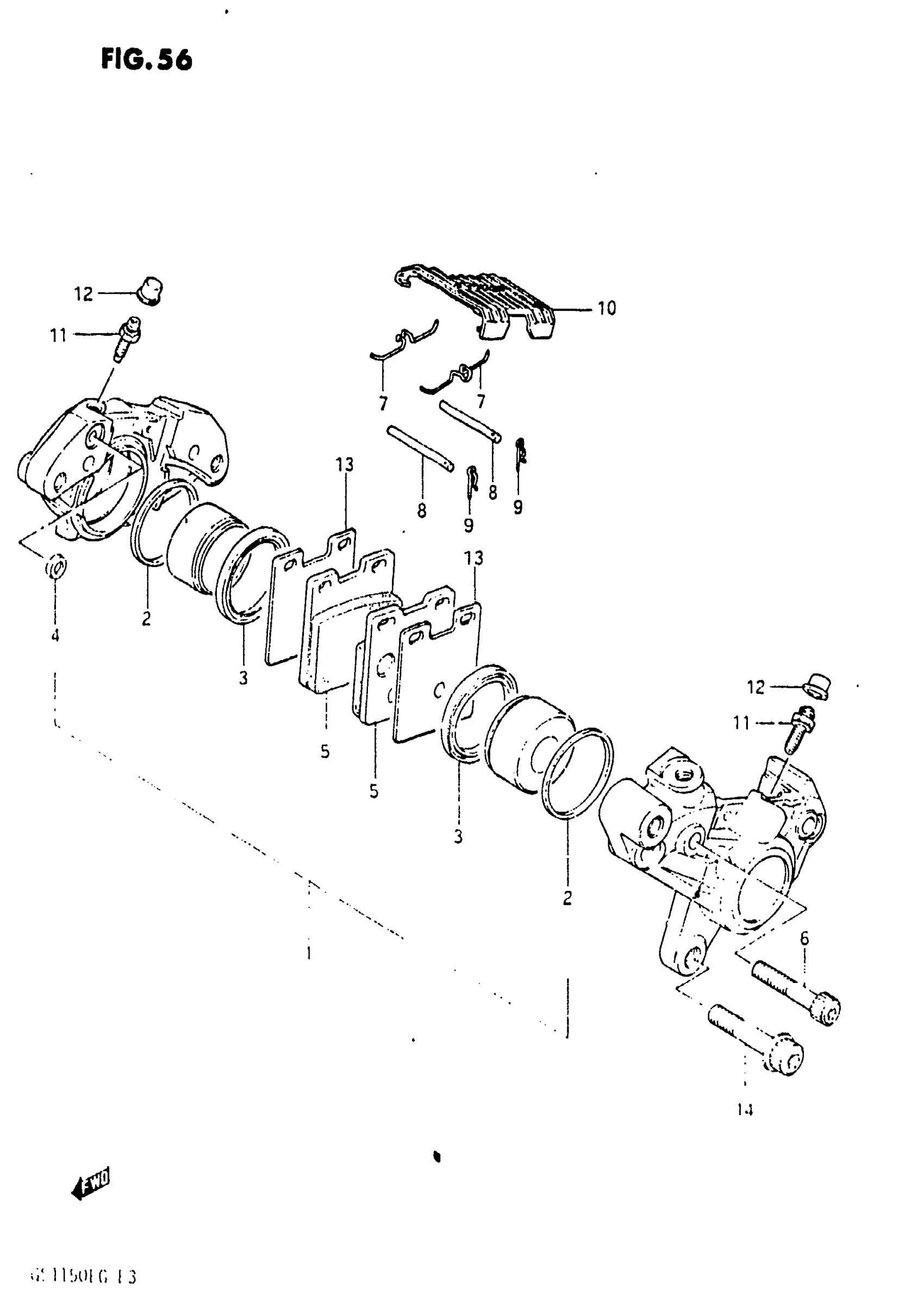

Suzuki GS1150EF (1986) FRONT CALIPERS Diagram

#

Description
Price

0

CALIPER ASSY, RH

59100-00A00

Unavailable

0

CALIPER ASSY, LH | Includes Item(s) 1 - 13

59300-00A00

Unavailable

1

PISTON SET This part replaces 69100-00810.

69100-34851

Unavailable

2

SEAL,PISTON This part replaces 59107-18410.

69107-05CF0

$9.07

3

BOO1

69108-45000

$8.50

4

SEAL

69107-34200

$10.71

5

PAD SET This part replaces 59130-00A00.

59100-00810

Unavailable

6

BOLT, HOUSING

59145-00A00

Unavailable

7

SPRING

59143-16700

$5.80

8

PIN

69141-45000

$5.17

9

.CLIP, PAD PIN

69142-45000

$4.34

10

COVER This part replaces 59151-00A00.

59151-00A01

Unavailable

11

BREATHER

59121-18410

$8.73

12

CAP, BLEEDER This part replaces 59122-18410.

55156-66310

$5.17

13

SHIM

59371-33410

$12.57

14

BOLT This part replaces 09106-10025.

09106-10051

Unavailable
