Partiron

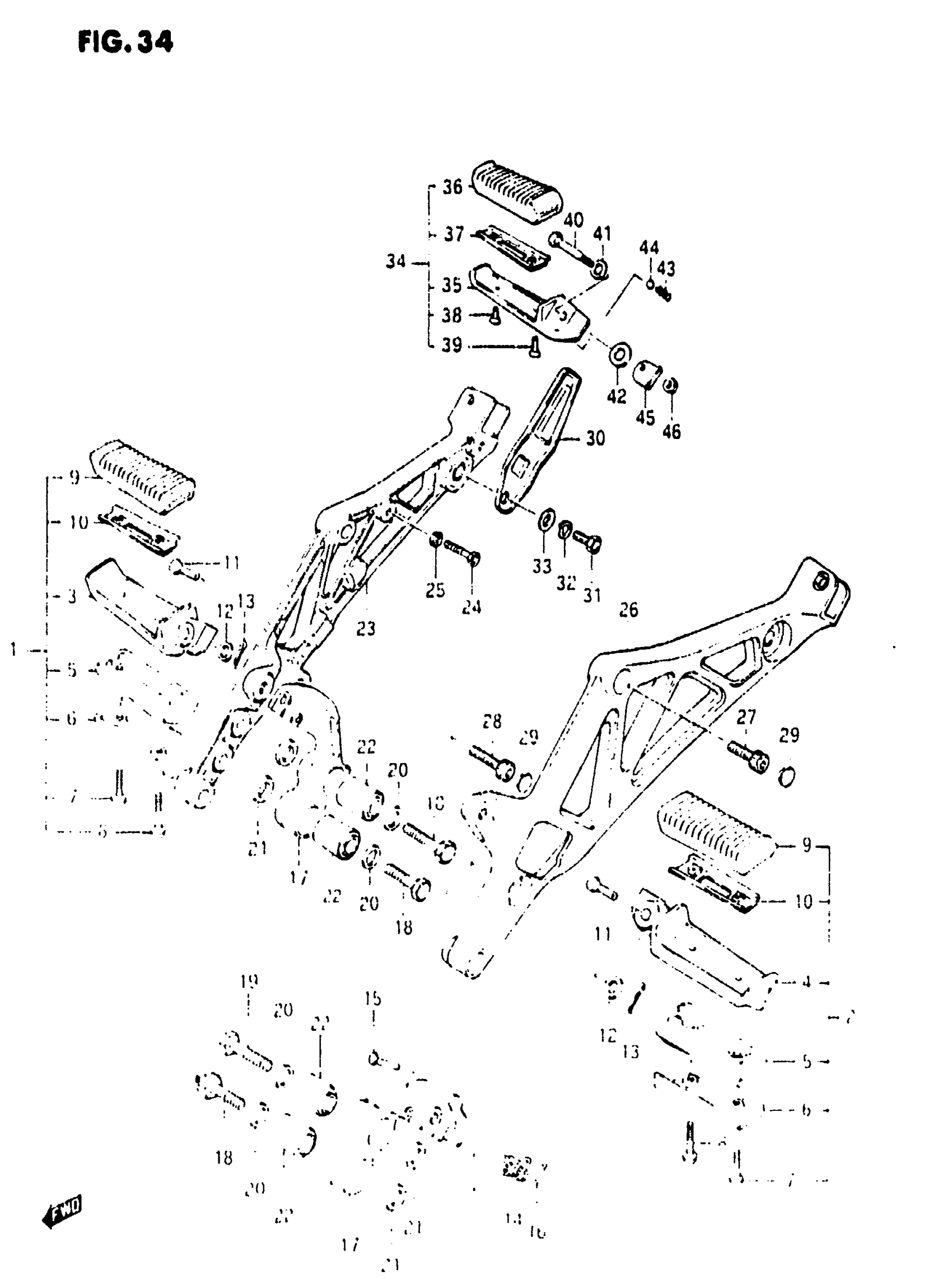

Suzuki GS1150EF (1986) FOOTREST Diagram

#

Description
Price

1

FOOTREST ASSY, FRONT RH | GS1150ES3/ESE

43501-31300

Unavailable

1

FOOTREST ASSY, FRONT RH | MODEL F/F2/G

43501-00A00

Unavailable

2

FOOTREST ASSY, FRONT LH | GS1150ES3/ESE

43502-31300

Unavailable

2

FOOTREST ASSY, FRONT LH | MODEL F/F2/G; Includes Item(s) 3 - 10

43502-00A00

Unavailable

3

BAR, FRONT FOOTREST RH

43510-31300

Unavailable

4

BAR, FRONT FOOTREST LH

43520-31300

Unavailable

5

BAR, FRONT FOOTREST NO.2 | MODEL F/F2/G

43533-00A00

Unavailable

6

COVER | MODEL F/F2/G

43534-00A00

Unavailable

7

SCREW | GS1150ES3/ESE This part replaces 02112-05128.

02112-05127

$1.97

7

SCREW | MODEL F/F2/G

02112-05257

$1.49

8

SCREW | GS1150ES3/ESE This part replaces 02112-05168.

02112-05167

$1.97

8

SCREW | MODEL F/F2/G This part replaces 02112-05308.

02112-0530A

$2.05

9

RUBBER,FR FOOTR This part replaces 43551-31300.

43550-31300

$25.83

10

PLATE, FRONT FOOTREST RUBBER

43580-33301

Unavailable

11

PIN

09200-08002

$2.05

12

WASHER This part replaces 08322-11088.

08322-01087

$2.13

13

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

14

SPRING

09448-12014

Unavailable

15

PIN

09200-06010

$1.72

16

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

17

HOLDER, FOOTREST

43530-00A00

Unavailable

18

BOLT

09100-10191

Unavailable

19

NO DESCRIPTION AVAILABLE This part replaces 09101-10033.

09101-10041

Unavailable

20

WASHER This part replaces 08322-11107.

08322-01107

$2.15

21

WASHER, INNER

09160-10005

$1.87

22

BUSH

09319-10040

Unavailable

23

BRACKET, MUFFLER RH | Includes Item(s) 24 - 25

43810-00A00

Unavailable

24

BOLT This part replaces 01107-06257.

01500-06257

$1.97

25

.NUT This part replaces 08310-11067.

08310-00067

$2.13

26

BRACKET, MUFFLER LH

43820-00A00

Unavailable

27

BOLT This part replaces 07110-10258.

07130-10257

$4.60

28

BOLT, LH This part replaces 07110-10358.

07130-10357

$5.18

29

CAP

43575-34500

$1.72

30

FOOT GUARD, REAR

43671-00A00

Unavailable

31

BOLT This part replaces 01107-08127.

01500-08127

$2.62

32

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

33

WASHER This part replaces 08322-11088.

08322-01087

$2.13

34

FOOTREST ASSY, PILLION RH

43600-31300

Unavailable

34

FOOTREST ASSY, PILLION LH | Includes Item(s) 35 - 39

43700-31300

Unavailable

35

BAR, PILLION FOOTREST RH

43610-45501

Unavailable

35

BAR, PILLION FOOTREST LH

43710-45501

Unavailable

36

RUBBER, PILLION FOOTREST

43612-31300

$13.05

37

PLATE, RUBBER STOP

43632-45501

$3.70

38

SCREW This part replaces 02132-05127.

02122-05127

$1.93

39

SCREW This part replaces 02132-05167.

02122-05167

$2.47

40

BOLT

09111-06035

Unavailable

41

WASHER This part replaces 08322-11088.

08322-01087

$2.13

42

SHIM

09181-08004

Unavailable

43

SPRING

09440-05028

Unavailable

44

STEEL BALL

06111-08003

$1.49

45

PLATE, SPRING STOP RH

43635-43400

Unavailable

45

PLATE, SPRING STOP LH

43735-43400

Unavailable

46

NUT

08319-31067

$2.03

30

FOOT GUARD, REAR

43671-00A00

Unavailable

31

BOLT This part replaces 01107-08127.

01500-08127

$2.62

32

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

33

WASHER This part replaces 08322-11088.

08322-01087

$2.13

34

FOOTREST ASSY, PILLION RH

43600-31300

Unavailable

34

FOOTREST ASSY, PILLION LH | Includes Item(s) 35 - 39

43700-31300

Unavailable

35

BAR, PILLION FOOTREST RH

43610-45501

Unavailable

35

BAR, PILLION FOOTREST LH

43710-45501

Unavailable

36

RUBBER, PILLION FOOTREST

43612-31300

$13.05

37

PLATE, RUBBER STOP

43632-45501

$3.70

38

SCREW This part replaces 02132-05127.

02122-05127

$1.93

39

SCREW This part replaces 02132-05167.

02122-05167

$2.47

40

BOLT

09111-06035

Unavailable

41

WASHER This part replaces 08322-11088.

08322-01087

$2.13

42

SHIM

09181-08004

Unavailable

43

SPRING

09440-05028

Unavailable

44

STEEL BALL

06111-08003

$1.49

45

PLATE, SPRING STOP RH

43635-43400

Unavailable

45

PLATE, SPRING STOP LH

43735-43400

Unavailable

46

NUT

08319-31067

$2.03
