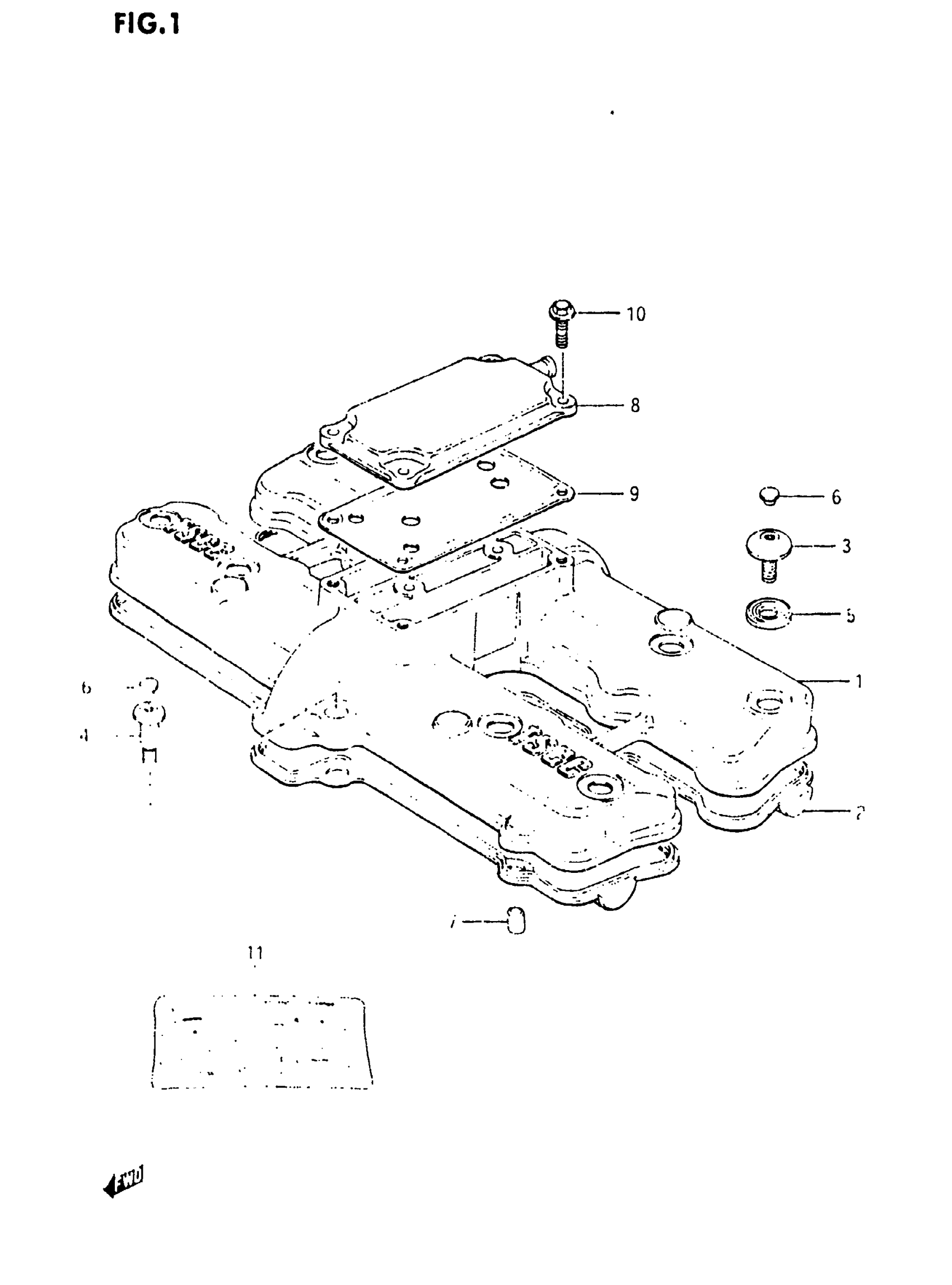

Suzuki GS1150EF (1986) CYLINDER HEAD COVER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 11171-00A01.

11171-00A01-291

Unavailable

2

GASKET, HEAD COVER

11173-31302

$49.16

3

BOLT (L:5.5)

09106-07001

Unavailable

4

BOLT (L:19)

09106-07002

Unavailable

5

WASHER This part replaces 09161-11006.

09161-11008

$4.49

6

CAP This part replaces 09250-06008.

09250-06016

$1.96

7

PIN

04221-08129

$1.99

8

COVER, BREATHER This part replaces 11176-00A00.

11176-31301

Unavailable

9

GASKET, BREATHER COVER This part replaces 11177-31300.

11177-27A00-H17

$6.05

10

BOLT This part replaces 01517-06208.

01550-06207

$2.30

11

NO DESCRIPTION AVAILABLE | OPT GS1150ES3/ESE ~E.NO.101424 This part replaces 11400-00841.

11400-00842

Unavailable

11

GASKET SET | OPT GS1150ES3/ESE E.NO.101425~ MODEL F/F2/G This part replaces 11400-00850.

11400-00855

Unavailable
