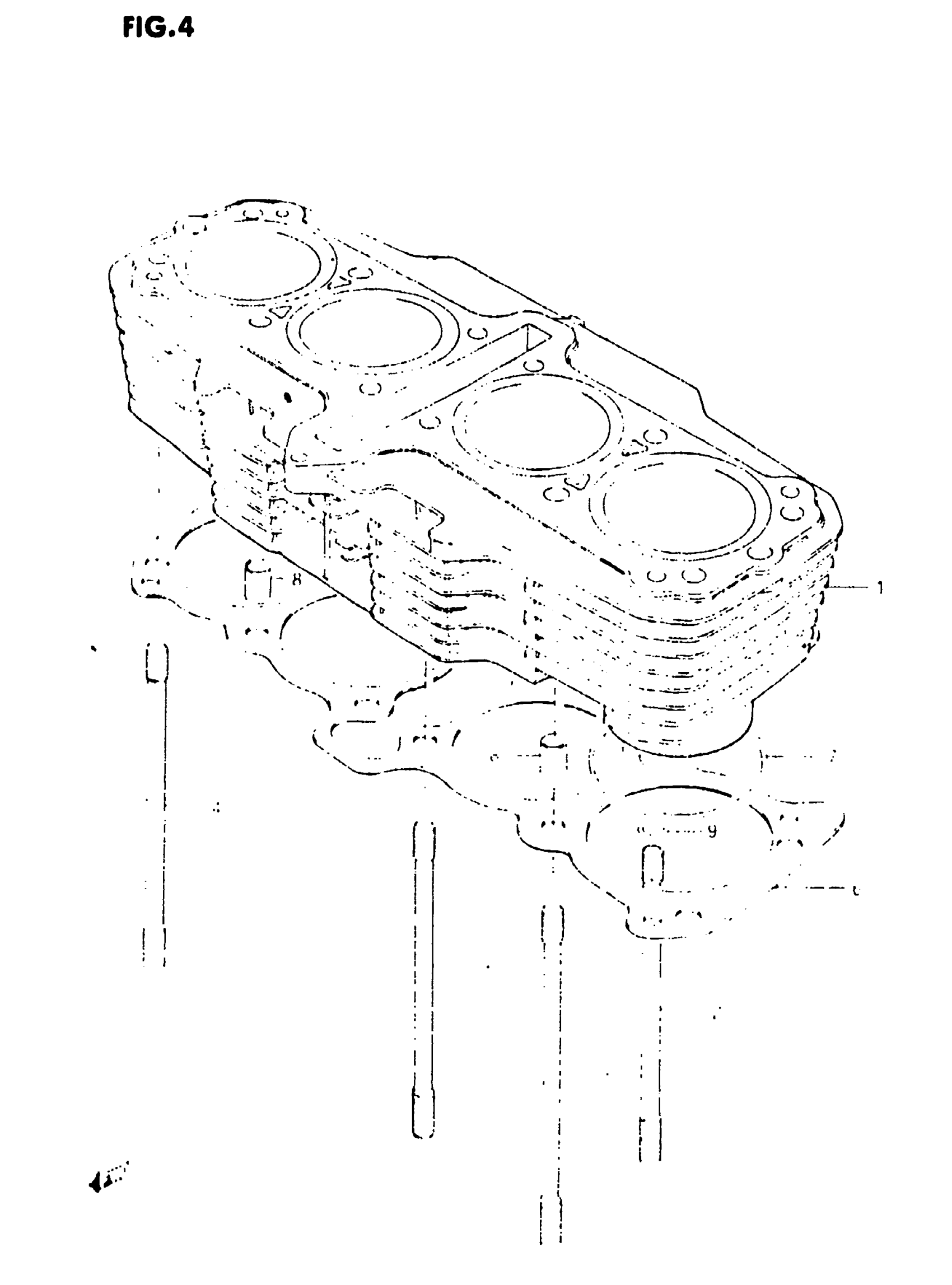

Suzuki GS1150EF (1986) CYLINDER (GS1150ES3/ESE E.NO.101425-/MODEL F/F2/G) Diagram

#

Description

Price

1

CYLINDER

11210-00A06

Unavailable

2

STUD BOLT (L:165)

09108-10070

Unavailable

3

STUD BOLT (L:161)

09108-10069

Unavailable

4

STUD BOLT (L:168) This part replaces 09108-10071.

09108-10112

$12.49

5

STUD BOLT (L:176)

09108-10068

Unavailable

6

GASKET, CYLINDER

11241-00A10

Unavailable

7

O RING

09280-77002

Unavailable

8

PIN This part replaces 09206-13006.

09206-13017

$7.61

9

O RING

09280-11005

$4.36
