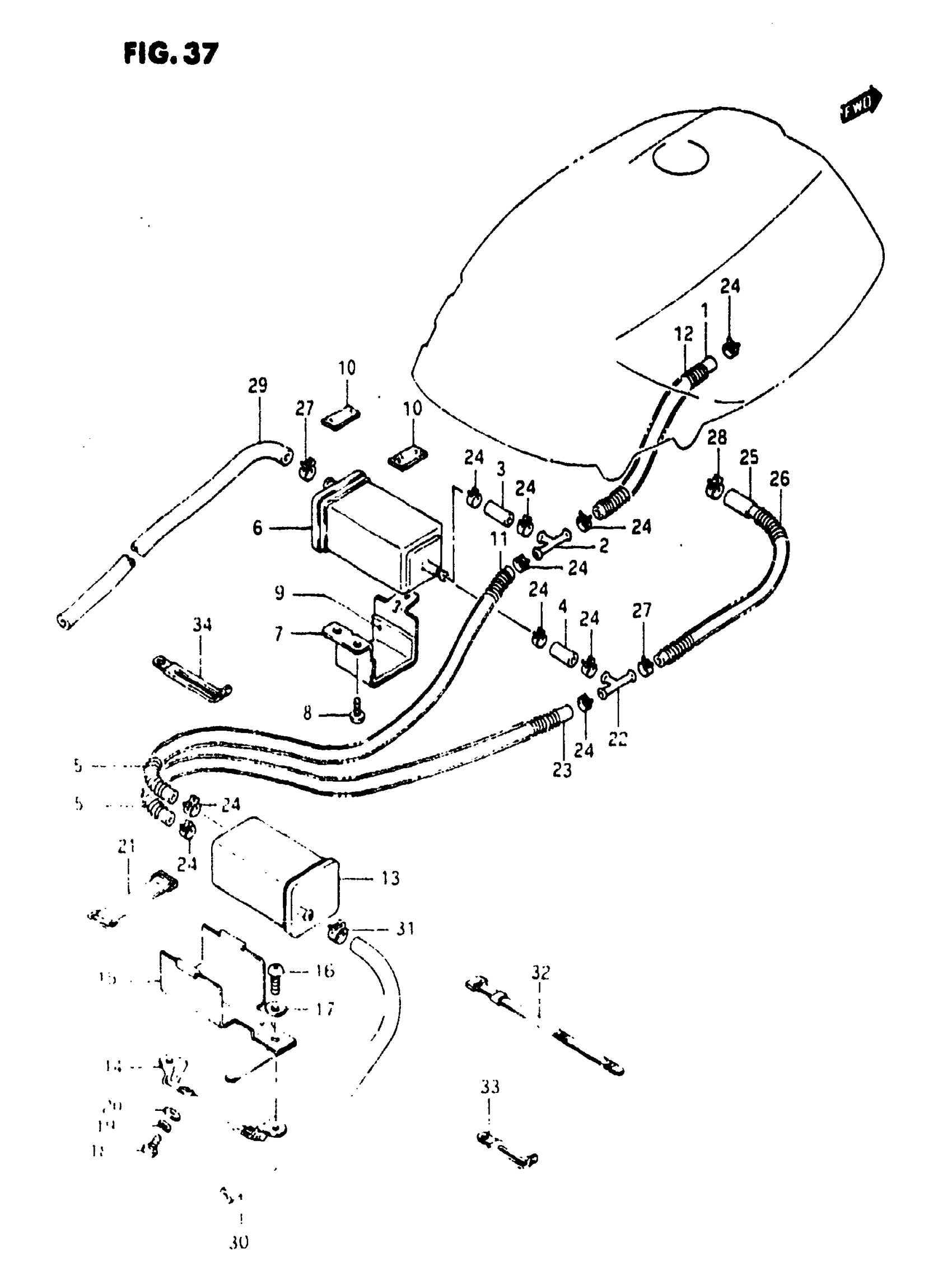

Suzuki GS1150EF (1986) CANISTER (FOR MODEL F OF CALIFORNIA) Diagram

#

Description
Price

1

HOSE, TANK & JOINT PIPE

09343-05334

Unavailable

2

PIPE, TANK & CANISTER IN

44950-14A00

Unavailable

3

HOSE, TANK & BREATHER VALVE This part replaces 09343-05304.

09355-54115-600

$14.59

4

HOSE, TANK & BREATHER VALVE This part replaces 09343-05335.

09355-54115-600

$14.59

5

NO DESCRIPTION AVAILABLE This part replaces 09440-13040.

09440-13040-XC0

Unavailable

6

CANISTER This part replaces 17210-05222.

17210-14A00

$156.07

7

PLATE, CANISTER FRONT

44880-00A00

Unavailable

8

SCREW This part replaces 02112-06106.

02112-0610B

$1.84

9

CUSHION, CANISTER NO. 1

44882-00A00

Unavailable

10

CUSHION, CANISTER NO. 2

44883-00A00

Unavailable

11

HOSE, JOINT PIPE This part replaces 09343-05331.

09343-05332

Unavailable

12

SPRING This part replaces 09440-13018.

09440-13043

$6.04

13

CANISTER This part replaces 17210-05222.

17210-14A00

$156.07

14

BRACKET, REAR CANISTER

44885-00A00

Unavailable

15

PLATE, REAR CANISTER

44870-00A00

Unavailable

16

SCREW This part replaces 02112-06106.

02112-0610B

$1.84

17

.WASHER This part replaces 08322-21066.

08322-0106B

$2.26

18

SCREW This part replaces 02142-06128.

02142-06127

$1.49

19

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

20

WASHER This part replaces 09160-06006.

09160-06084

$1.78

21

BAND

09462-00033

$3.20

22

PIPE, TANK & CANISTER OUT

44940-14A00

Unavailable

23

HOSE, JOINT PIPE

09343-05332

Unavailable

24

CLIP (ID:10.5,H:8)

09401-10409

$2.26

25

HOSE, CARB This part replaces 09343-05330.

09359-54111-00A

Unavailable

26

SPRING

09440-13042

$7.84

27

CLIP (ID:10.5,H:8)

09401-10409

$2.26

28

CLIP

09401-12404

$2.34

29

NO DESCRIPTION AVAILABLE This part replaces 09343-07165.

09343-07186

Unavailable

30

NO DESCRIPTION AVAILABLE This part replaces 09343-07166.

09343-07186

Unavailable

31

CLIP

09401-12404

$2.34

32

CLAMP

09407-18401

$2.07

33

CLAMP This part replaces 09404-06402.

09404-06039

$1.74

34

CLAMP(L:80) This part replaces 09404-06404.

09404-06036

$1.74
