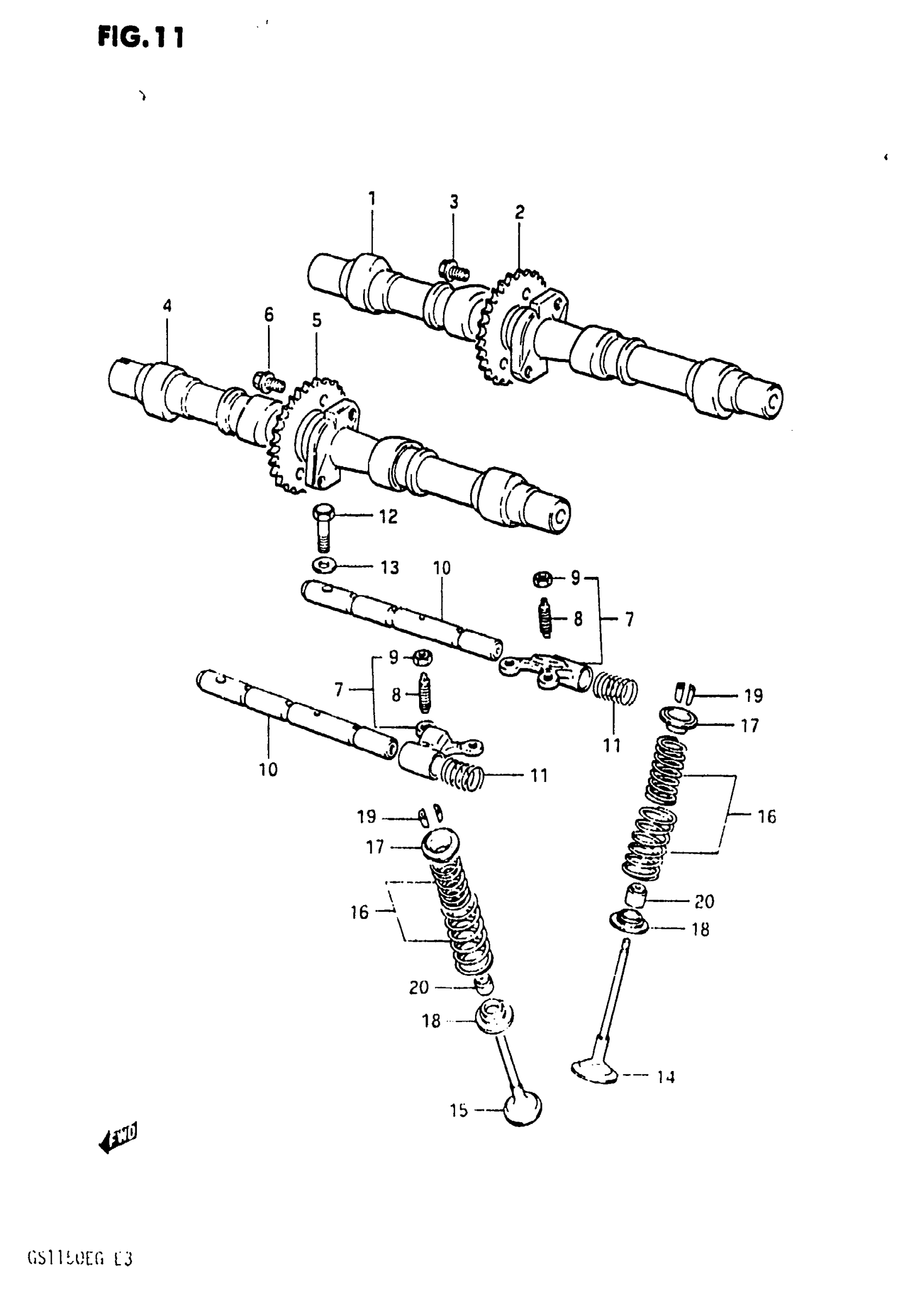

Suzuki GS1150EF (1986) CAM SHAFT - VALVE Diagram

#

Description
Price

1

CAM SHAFT, INTAKE

12711-00A00

Unavailable

2

SPROCKET, INTAKE (NT:30)

12741-49011

Unavailable

3

BOLT

09103-07001

$2.43

4

CAM SHAFT, EXHAUST

12721-00A02

Unavailable

5

SPROCKET, EXHAUST (NT:30)

12741-49011

Unavailable

6

BOLT

09103-07001

$2.43

7

ARM, VALVE ROCKER | Includes Item(s) 8 - 9

12840-49201

$81.62

8

SCREW, TAPPET ADJUSTING This part replaces 12842-49210.

12842-49201

$6.63

9

.NUT,TAPPET ADJUSTING This part replaces 12843-04A00.

12843-27A00

$2.94

10

SHAFT, VALVE ROCKER ARM

12860-31300

Unavailable

11

SPRING

09440-13014

$2.45

12

BOLT This part replaces 01107-06306.

01500-0630A

$2.19

13

.WASHER This part replaces 08322-21066.

08322-0106B

$2.26

14

VALVE, INTAKE

12911-00A00

Unavailable

15

VALVE, EXHAUST

12912-49220

$64.30

16

SPRING SET, VALVE

12920-49210

Unavailable

17

RETAINER, VALVE SPRING This part replaces 12931-49200.

12931-49201

$6.91

18

SEAT, VALVE SPRING This part replaces 12933-49200.

12933-49201

$5.84

19

COTTER, VALVE

12932-49200

$2.28

20

OIL SEAL (5.5X11X8.2) This part replaces 09289-05003.

09289-05015

$6.70
