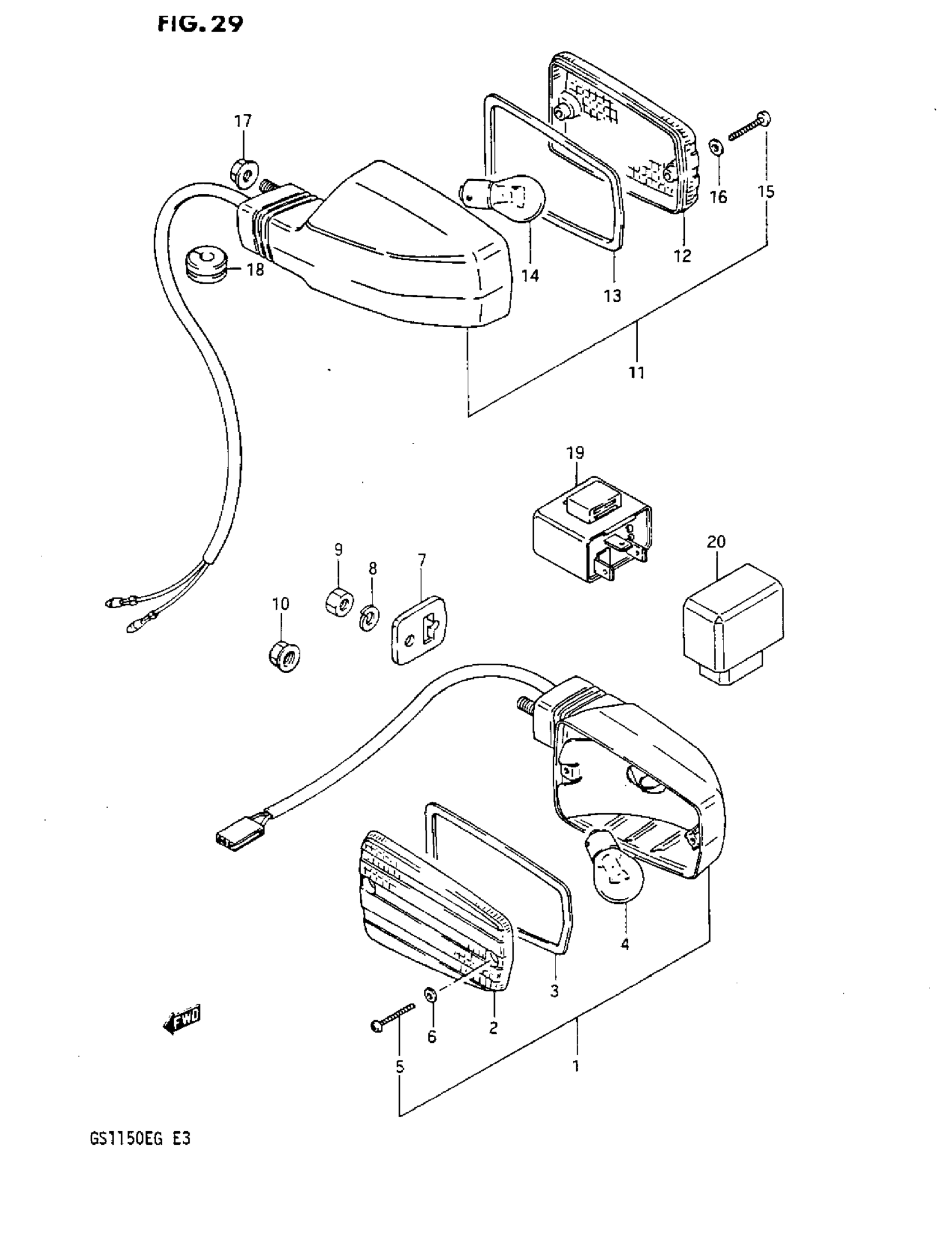

Suzuki GS1150 (1984) TURN SIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURN SIGNAL | GS1150ES3/ESE/ESF

35601-00A50

Unavailable

1

LAMP ASSY, FRONT TURN SIGNAL | GS1150EF/EF2/EG

35601-00A30

Unavailable

2

LENS

35612-49510

$12.59

3

GASKET

35613-43410

Unavailable

4

BULB (12V, 23/8W)

09471-12035

$4.49

5

SCREW This part replaces 03211-04208.

03211-04207

$1.49

6

GASKET

35627-43010

$2.28

7

SPACER, TURN SIGNAL LAMP | GS1150ES3/ESE/ESF

35695-00A00

Unavailable

8

.LOCK WASHER | GS1150ES3/ESE/ESF This part replaces 08321-21088.

08321-01087

$2.13

9

NUT | GS1150ES3/ESE/ESF

09159-08037

Unavailable

10

NUT | GS1150EF/EF2/EG This part replaces 08316-26086.

08316-20087

$2.77

11

LAMP ASSY, REAR TURN SIGNAL This part replaces 35601-43431.

35603-31331

Unavailable

12

LENS,FR TURNS,G This part replaces 35612-43410.

35612-00A80

Unavailable

13

GASKET

35613-43410

Unavailable

14

BULB (12V, 23W)

09471-12006

$3.98

15

SCREW This part replaces 03211-04208.

03211-04207

$1.49

16

GASKET

35627-43010

$2.28

17

NUT This part replaces 08316-26086.

08316-20087

$2.77

18

GROMMET

09308-05011

Unavailable

19

RELAY, TURN SIGNAL

38610-49231

Unavailable

20

UNIT,TURN SIG C This part replaces 38830-49500.

38830-49X00

Unavailable
