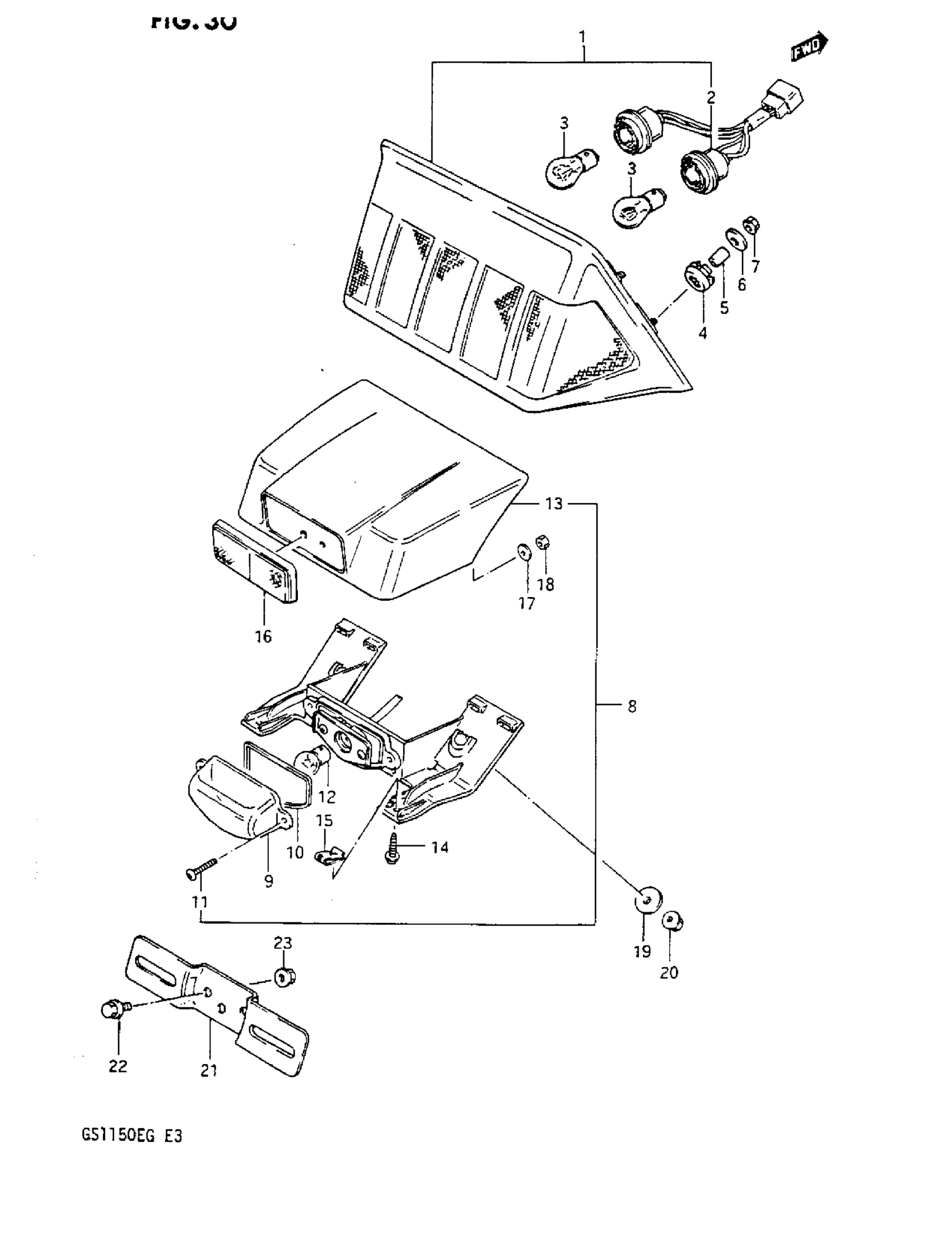

Suzuki GS1150 (1984) TAIL LAMP-LICENSE LAMP Diagram

#

Description
Price

1

LAMP ASSY, REAR COMBINATION

35710-00A30

Unavailable

2

SOCKET

35718-00A10

Unavailable

3

BULB (12V, 23/8W)

09471-12084

Unavailable

4

CUSHION

09320-09015

$3.40

5

SPACER This part replaces 09180-06062.

09180-06268

$2.19

6

WASHER (6.5X20X1.2) This part replaces 09160-06060.

09160-06077

$1.91

7

NUT This part replaces 08316-26066.

08316-1006B

$2.50

8

LAMP ASSY, LICENSE

35910-00A10

Unavailable

9

LENS

35912-00A10

Unavailable

10

GASKET

35913-04A00

Unavailable

11

SCREW This part replaces 03211-04208.

03211-04207

$1.49

12

BULB (12V, BW) This part replaces 09471-12037.

09471-12141

Unavailable

13

COVER

35917-00A10

Unavailable

14

SCREW This part replaces 03151-04165.

03141-0416A

$2.27

15

NUT

35657-16700

Unavailable

16

REFLECTOR, REAR This part replaces 35970-00A00.

35970-00A10

Unavailable

17

WASHER (5.2X16X1)

09160-05013

$1.49

18

NUT This part replaces 08310-11056.

08310-0005A

$1.84

19

WASHER (6.5X20X1.2) This part replaces 09160-06060.

09160-06077

$1.91

20

NUT This part replaces 08316-26066.

08316-1006B

$2.50

21

BRACKET, LICENSE PLATE

35927-00A30

Unavailable

22

BOLT This part replaces 01517-06164.

01550-0616A

$1.97

23

NUT This part replaces 08316-26066.

08316-1006B

$2.50
