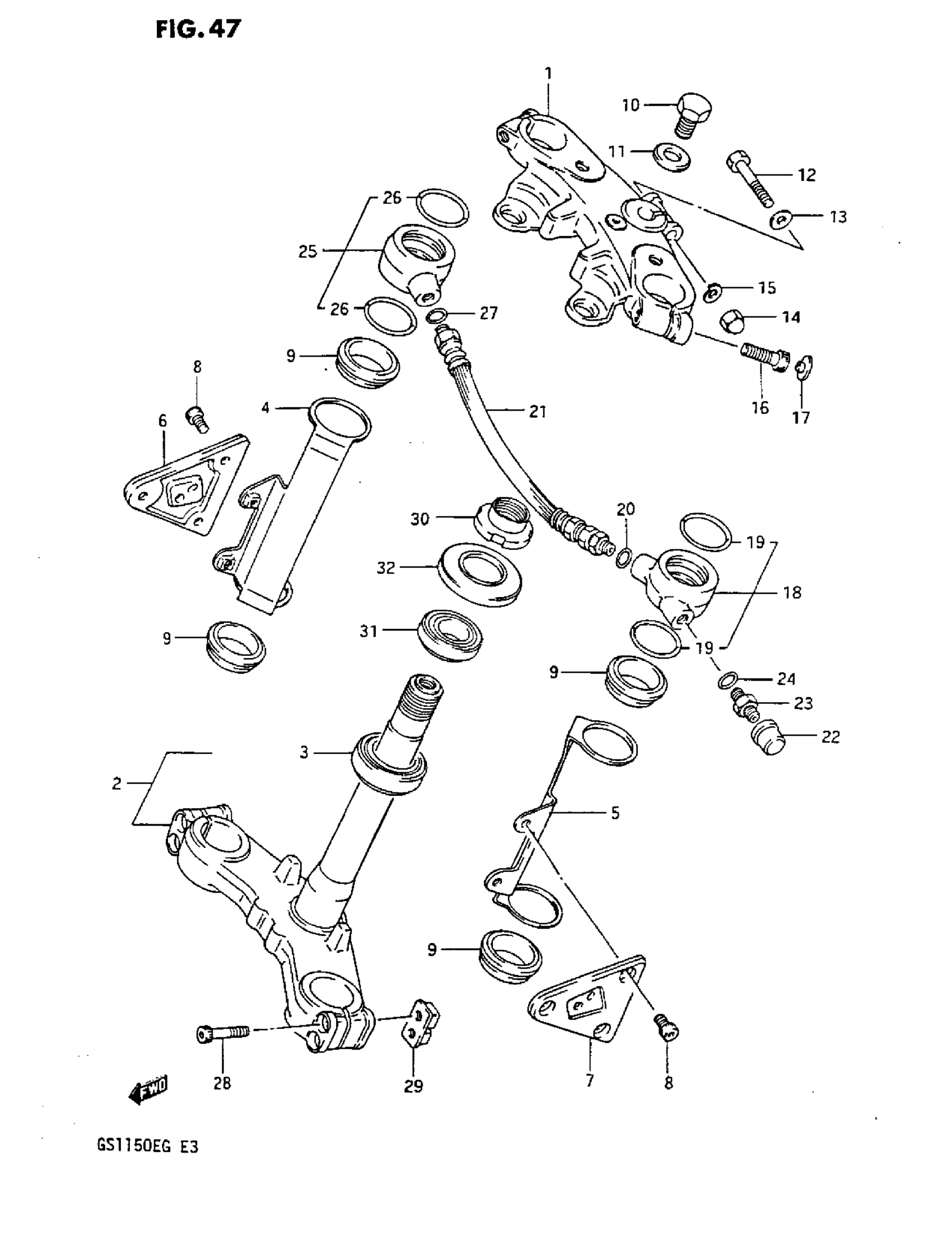

Suzuki GS1150 (1984) STEERING STEM (GS1150EF/EF2/EG) Diagram

#

Description
Price

1

STEM HEAD, STEERING (BLACK)

51311-00A00-15T

Unavailable

2

STEM, STEERING (BLACK)

51410-00A20-15T

Unavailable

3

RT 30X55X17 BEA This part replaces 09265-30005.

09265-30034

$57.05

4

NO DESCRIPTION AVAILABLE This part replaces 51530-00A10-15T.

51500-00820-15T

Unavailable

5

COVER, FORK LH (BLACK)

51540-00A10-15T

Unavailable

6

BRACKET, HEADLAMP RH (BLACK)

51532-00A00-15T

Unavailable

7

BRACKET, HEADLAMP LH (BLACK)

51542-00A00-15T

Unavailable

8

BOLT This part replaces 51753-04700.

07130-0616B

$2.39

9

CUSHION, BRACKET This part replaces 51553-49000.

51553-34300

$4.52

10

BOLT This part replaces 51353-45380.

51352-43530

$15.42

11

WASHER This part replaces 51356-49400.

51356-43530

$6.55

12

BOLT This part replaces 01107-08505.

01500-0850B

$3.77

13

WASHER This part replaces 08322-11084.

08322-0108A

$1.92

14

NUT This part replaces 08313-11085.

08313-1008B

$2.80

15

LOCK WASHER This part replaces 08321-21084.

08321-0108A

$1.84

16

BOLT

51352-00A00

Unavailable

17

CAP, UPPER SIDE

09250-08010

$2.33

18

JOINT, AIR LH (BLACK)

51432-00A10-15T

Unavailable

19

O RING | GS1150EF This part replaces 51436-49470.

51356-34370

Unavailable

19

O-RING | GS1150EF2/EG

51356-34370

Unavailable

20

.O RING (D:1.9,ID:5.7) This part replaces 51117-14210.

09280-06005

$1.49

21

TUBE, JOINT

51433-00A10

Unavailable

22

CAP, VALVE

51294-49020

Unavailable

23

NO DESCRIPTION AVAILABLE This part replaces 51293-43400.

62274-14400

Unavailable

24

.O RING (D:1.9,ID:5.7) This part replaces 51117-14210.

09280-06005

$1.49

25

JOINT, AIR RH (BLACK)

51431-00A10-15T

Unavailable

26

O RING | GS1150EF This part replaces 51436-49470.

51356-34370

Unavailable

26

O-RING | GS1150EF2/EG

51356-34370

Unavailable

27

.O RING (D:1.9,ID:5.7) This part replaces 51117-14210.

09280-06005

$1.49

28

BOLT, MUFFLER SUPPORT This part replaces 07110-08455.

07130-0845B

$3.99

29

NUT

51458-49000

Unavailable

30

NUT, STEERING STEM

51631-34200

Unavailable

31

BEARING, UPPER

09265-25008

Unavailable

32

SEAL,DUST This part replaces 51643-40502.

51643-40503

$6.15
