Partiron

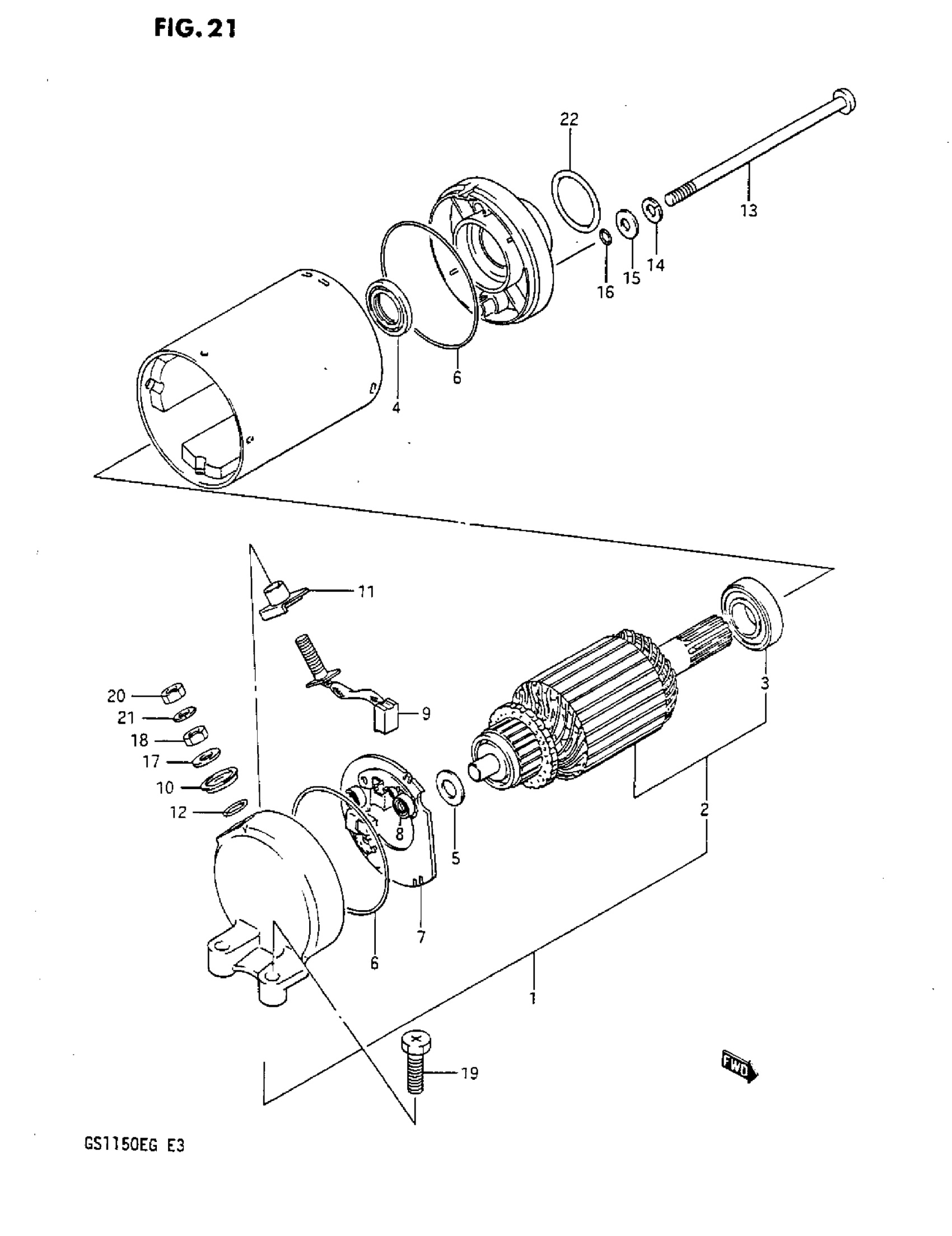

Suzuki GS1150 (1984) STARTING MOTOR Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 31100-00A00.

31100-00A00-H17

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 31310-00A00.

31310-00A01-H17

Unavailable

3

NO DESCRIPTION AVAILABLE This part replaces 31155-45010.

31155-45C00

Unavailable

4

OIL SEAL

31153-49210

$24.20

5

.SHIM SET This part replaces 31361-47010.

31170-43400

Unavailable

6

O-RING

31264-44110

$11.87

7

BRUSH HOLDER ASSY This part replaces 31132-44110.

31132-27A01

$73.55

8

SPRING

31135-65010

$4.52

9

BRUSH (+)

31130-38300

$18.43

10

BUSHING (A)

31172-38300

$6.55

11

BUSHING (B)

31171-38300

$8.93

12

O-RING

31143-38300

$5.10

13

BOLT This part replaces 31281-05300.

31281-88C00

Unavailable

14

LOCK WASHER This part replaces 08321-21057.

08321-0105A

$1.84

15

WASHER

31161-38300

Unavailable

16

O-RING

31156-38300

$4.52

17

WASHER This part replaces 08322-21067.

08322-01067

$2.13

18

.NUT This part replaces 08310-22068.

08310-00067

$2.13

19

BOLT, STARTING MOTOR This part replaces 09128-06024.

09103-06212

$2.47

20

NUT This part replaces 08310-11066.

08310-0006A

$1.84

21

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.84

22

.O-RING (D:3,ID:24.5)

09280-24003

$1.55
