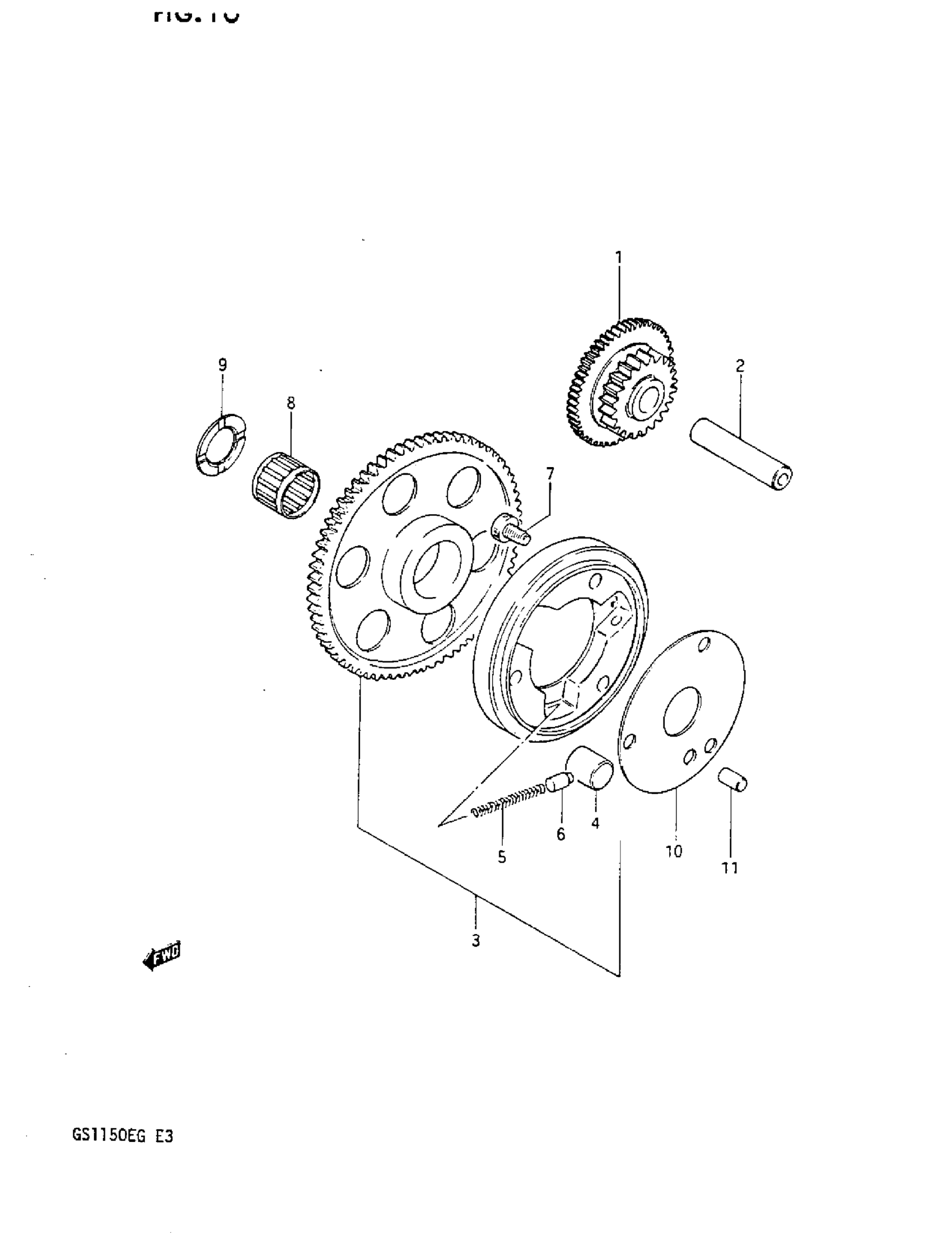

Suzuki GS1150 (1984) STARTER CLUTCH Diagram

#

Description
Price

1

GEAR, IDLE (NT:70/17)

12611-00A01

Unavailable

2

PIN

09206-13003

$15.70

3

CLUTCH SET, STA This part replaces 12600-49863.

12600-49865

Unavailable

4

ROLLER

09261-15001

$3.29

5

SPRING

09440-04015

$2.22

6

PIECE, PUSH

12633-31000

$8.77

7

BOLT This part replaces 09106-08043.

07130-0816A

$3.16

8

BEARING

09263-29005

Unavailable

9

WASHER

09160-29010

Unavailable

10

SHIM, STARTER CLUTCH

12649-49601

Unavailable

11

PIN

04221-08149

$1.96
