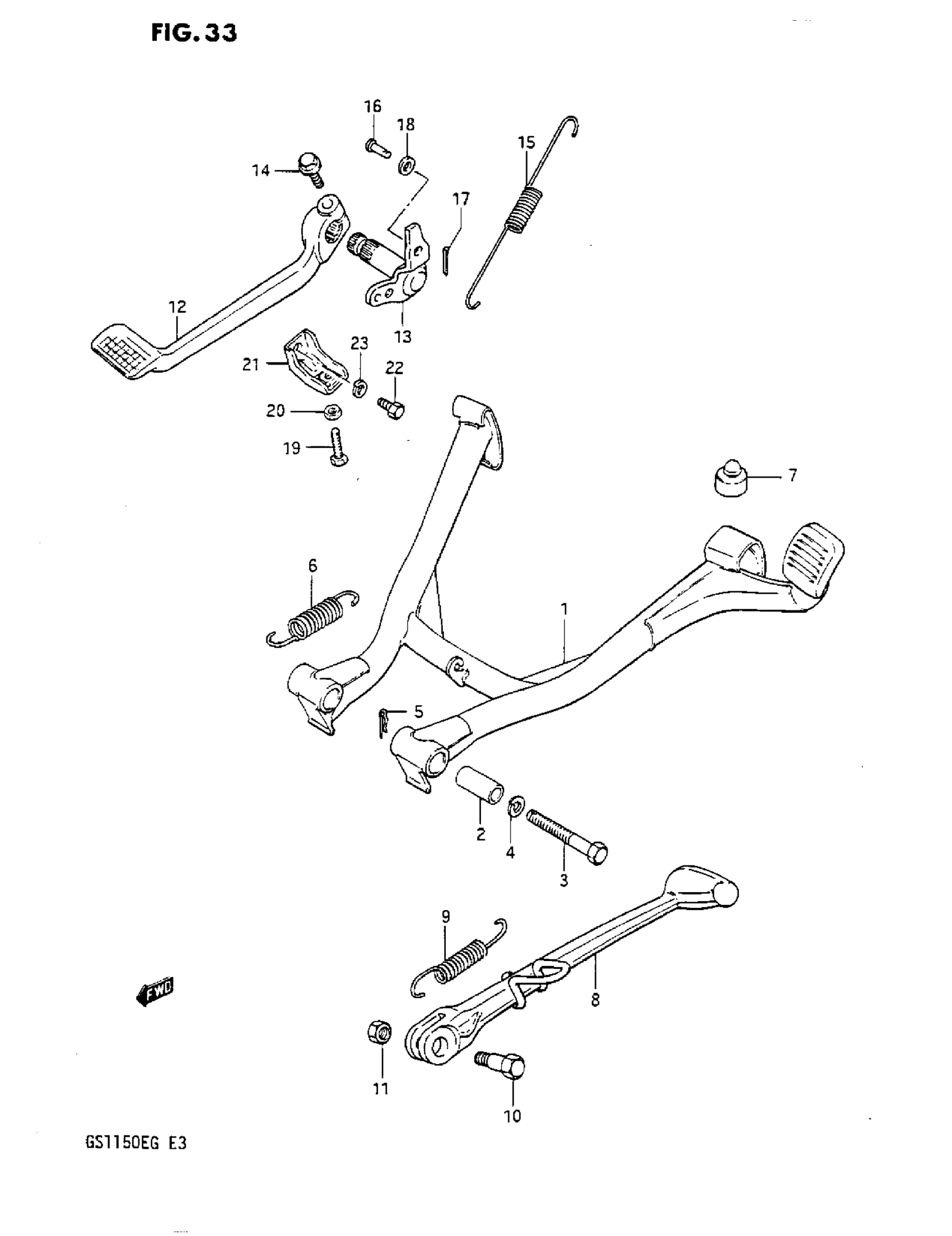

Suzuki GS1150 (1984) STAND Diagram

#

Description
Price

1

STAND, CENTER

42100-00A01

Unavailable

2

SPACER (10.7x15.9x38)

09180-10040

$2.56

3

BOLT This part replaces 09101-10034.

09117-10029

Unavailable

4

LOCK WASHER This part replaces 08321-21107.

08321-01107

$1.84

5

CLIP This part replaces 09385-10001.

09385-10005

$1.56

6

SPRING

09443-18012

Unavailable

7

CUSHION

09321-10002

$2.22

8

STAND, PROP (BLACK)

42310-00A00-019

Unavailable

9

SPRING

09443-15017

Unavailable

10

BOLT

09111-10024

Unavailable

11

NUT This part replaces 08310-22106.

08310-0010A

$1.84

12

PEDAL, BRAKE

43111-00A00

Unavailable

13

ARM, BRAKE PEDAL ROD

43120-00A00

Unavailable

14

BOLT This part replaces 01517-08258.

01550-08257

$2.81

15

SPRING

09443-12027

Unavailable

16

PIN (6X18.2) This part replaces 09200-06037.

09200-06068

$4.11

17

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

18

WASHER This part replaces 08322-21067.

08322-01067

$2.13

19

BOLT, ADJUSTER

09100-06055

$2.38

20

.NUT This part replaces 08310-11067.

08310-00067

$2.13

21

BRACKET, BRAKE PEDAL ADJUSTER

43261-00A00

Unavailable

22

BOLT This part replaces 01107-06127.

01500-06127

$1.97

23

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13
