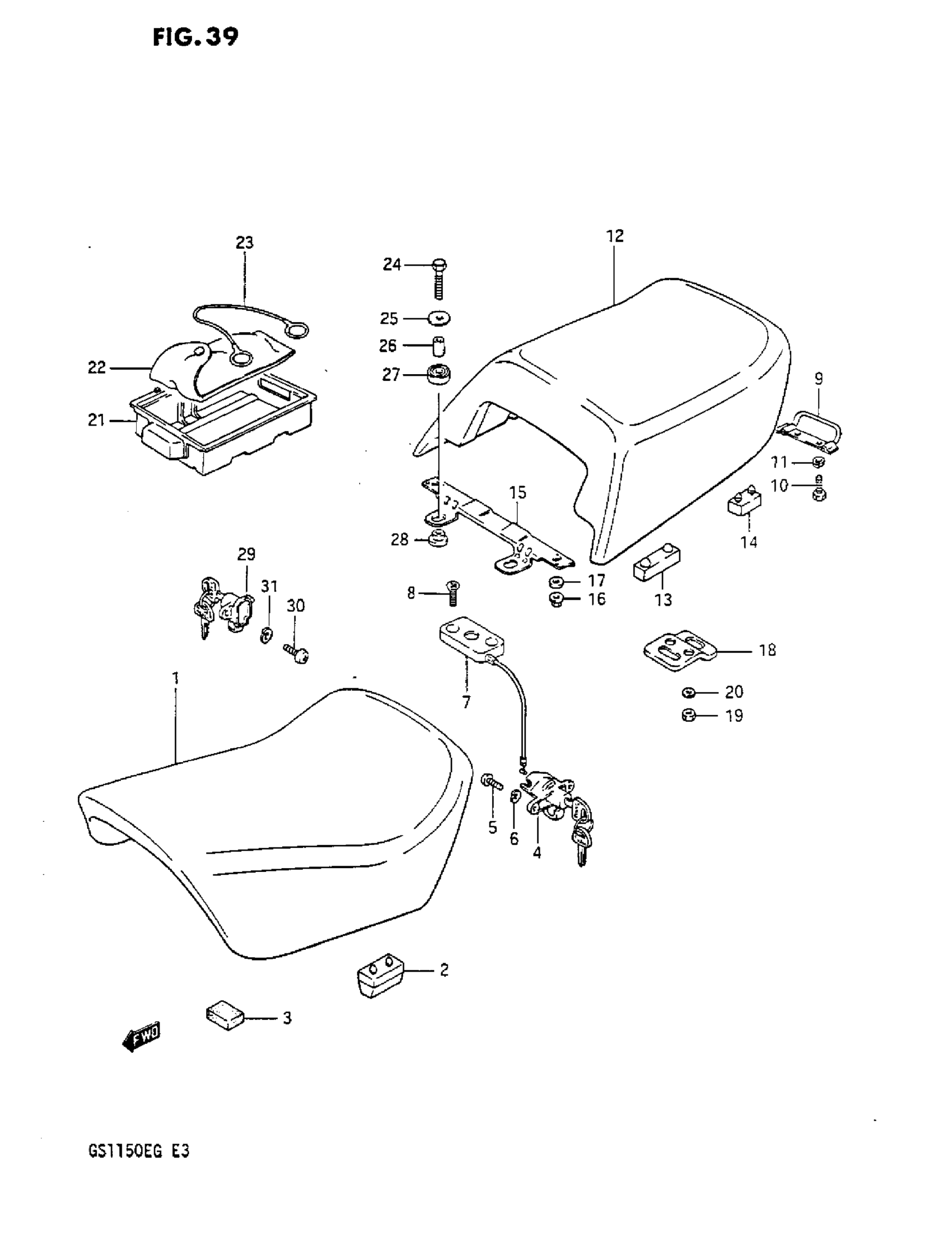

Suzuki GS1150 (1984) SEAT Diagram

#

Description
Price

1

SEAT ASSY (BLACK) | GS1150ES3/ESE This part replaces 45100-00A00-58R.

45100-00A01-58R

Unavailable

1

SEAT ASSY (BLACK) | MODEL F/F2/G

45100-00A01-58R

Unavailable

2

CUSHION

45149-00A00

Unavailable

3

CUSHION, BATTERY STOPPER

45255-15510

Unavailable

4

LOCK, SEAT AND HELMET

45700-00A00-KEY

Unavailable

5

SCREW This part replaces 02112-06126.

02112-0612A

$1.49

6

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.84

7

BRACKET, REAR SUPPORT

45220-00A00

Unavailable

8

SCREW This part replaces 02122-06255.

02122-0625A

$1.49

9

NO DESCRIPTION AVAILABLE This part replaces 45210-00A00.

45230-00A00

Unavailable

10

BOLT This part replaces 01107-06126.

01500-0612A

$1.78

11

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.84

12

SEAT SET, PILLION (BLACK)

45300-00A10-58R

Unavailable

13

CUSHION

45149-43500

$6.85

14

CUSHION

09321-08012

$3.85

15

PLATE, PILLION SEAT FRONT

45321-00A00

Unavailable

16

NUT This part replaces 08310-11066.

08310-0006A

$1.84

17

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.84

18

PLATE, SEAT HOOK REAR

45330-00A00

Unavailable

19

NUT This part replaces 08310-11066.

08310-0006A

$1.84

20

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.84

21

BOX, TOOL

45115-00A00

Unavailable

22

TOOL ASSY This part replaces 09800-00275.

09800-21073

$96.88

23

BAND

45151-00A00

Unavailable

24

BOLT

09128-06010

$1.65

25

WASHER, FRONT This part replaces 09160-06004.

09160-06134

$1.91

26

SPACER This part replaces 09180-06072.

09180-06271

$2.35

27

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

$2.60

28

CUSHION, LOWER

09320-14013

$2.11

29

LOCK ASSY, HELMET

95700-00A00-KEY

Unavailable

30

SCREW This part replaces 02112-06126.

02112-0612A

$1.49

31

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.84
