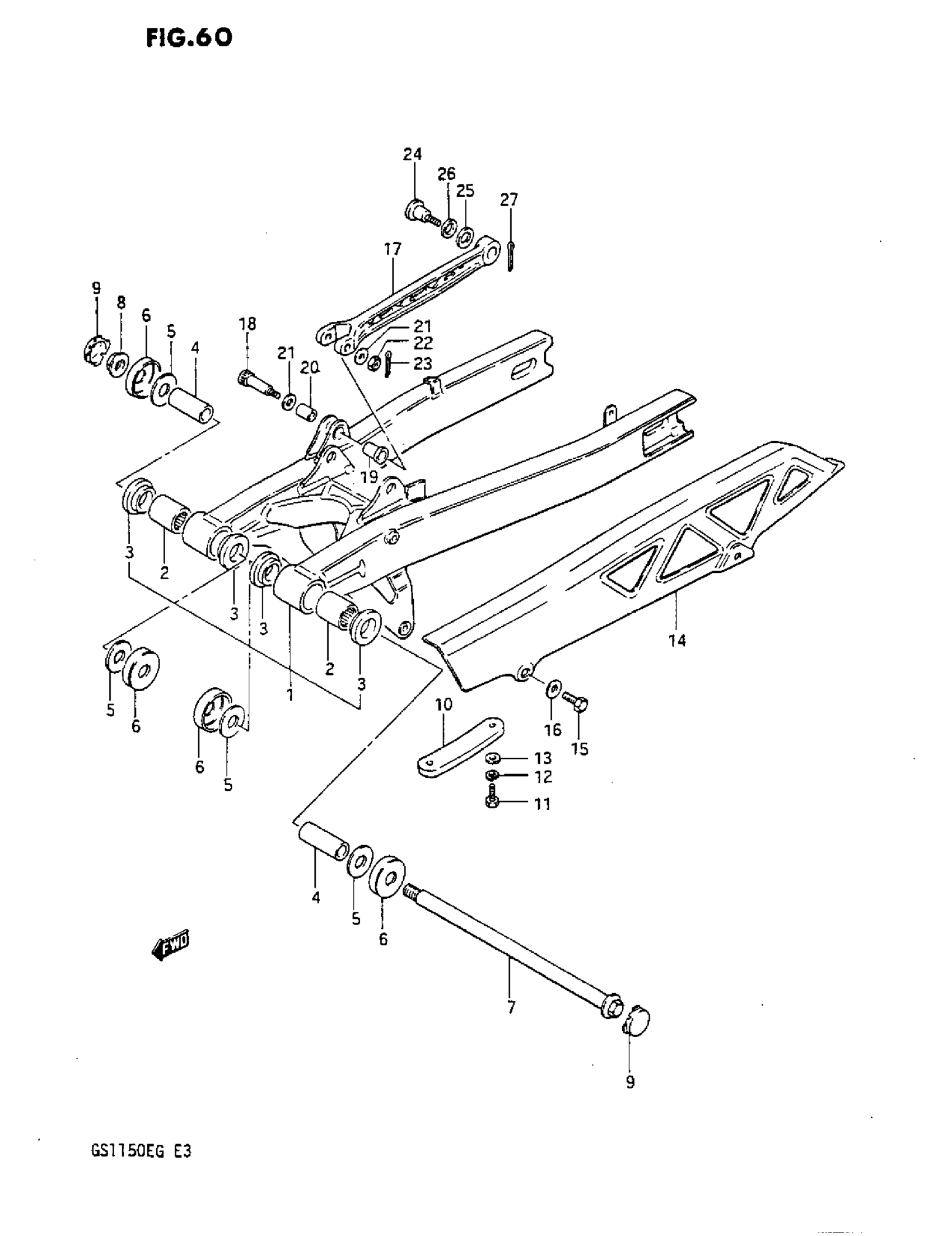

Suzuki GS1150 (1984) REAR SWINGING ARM Diagram

#

Description
Price

1

SWINGING ARM, REAR

61000-00A00

Unavailable

2

BEARING

09263-25024

$25.92

3

BUSHING

61261-31300

Unavailable

4

SPACER

61251-00A00

Unavailable

5

WASHER

08211-16381

$2.42

6

COVER,RR SWINGI This part replaces 61262-49201.

61262-49202

$10.33

7

SHAFT

61211-00A00

Unavailable

8

NUT This part replaces 09159-14017.

08319-3114A

$9.66

9

CAP

61222-31301

Unavailable

10

BUFFER

61273-00A00

Unavailable

11

BOLT This part replaces 01107-06125.

01500-0612A

$1.78

12

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

13

WASHER

09160-06056

$1.72

14

CHAIN CASE | GS1150ES3/ESE This part replaces 61310-00A00.

61310-00A01

Unavailable

14

CHAIN CASE | MODEL F/F2/G

61310-00A01

Unavailable

15

BOLT This part replaces 01107-06125.

01500-0612A

$1.78

16

WASHER This part replaces 09169-06034.

09169-06071

$2.50

17

TORQUE LINK, REAR (SILVER)

64311-00A00-13L

Unavailable

18

BOLT, FRONT

09101-08019

Unavailable

19

SPACER

64353-00A00

Unavailable

20

SPACER

64354-00A00

Unavailable

21

WASHER This part replaces 08322-11088.

08322-01087

$2.13

22

NUT This part replaces 08314-41088.

08314-4008B

$3.03

23

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

24

BOLT, REAR

64331-00A00

Unavailable

25

CUSHION

09320-18003

Unavailable

26

WASHER

09160-18014

Unavailable

27

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49
