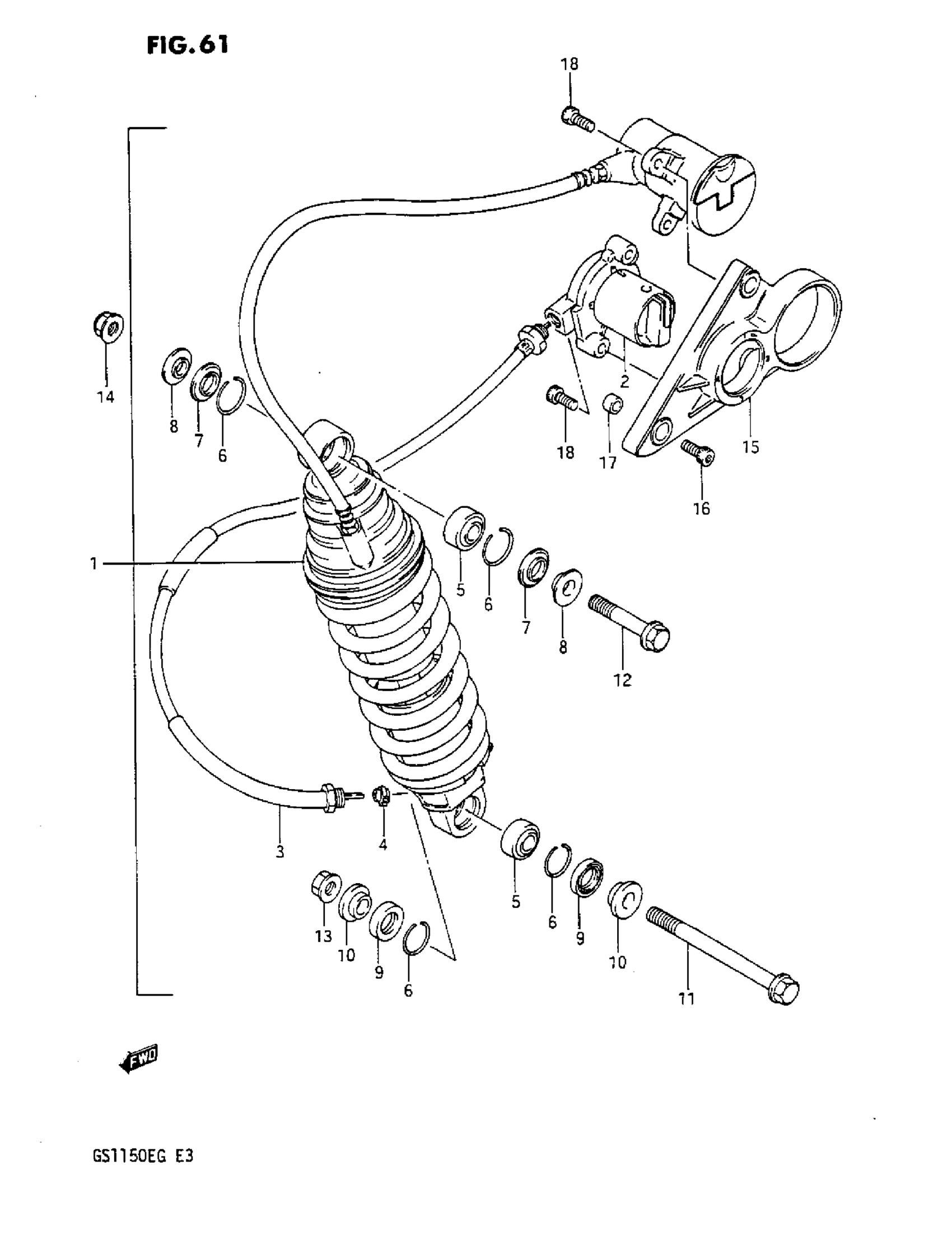

Suzuki GS1150 (1984) REAR SHOCK ABSORBER Diagram

#

Description
Price

1

SHOCK ABSORBER ASSY, REAR | GS1150ES3/ESE This part replaces 62100-00A10.

62100-00A11

Unavailable

1

SHOCK ABSORBER ASSY, REAR | MODEL F/F2/G

62100-00A11

Unavailable

2

ADJUSTER

62350-00A00

Unavailable

3

CABLE

62358-00A00

Unavailable

4

GEAR

62355-33300

Unavailable

5

BEARING, REAR (10x24x14.5) This part replaces 62175-43400.

62175-00B00

$61.15

6

RING, STOPPER This part replaces 62277-14200.

62657-34A01

$1.99

7

DUST SEAL, UPPER

62226-00A00

Unavailable

8

COLLAR, UPPER

62684-00A00

Unavailable

9

DUST SEAL

62226-43410

Unavailable

10

COLLAR

62684-43401

$10.75

11

BOLT, LOWER

09103-10063

$8.73

12

BOLT, UPPER

09103-10064

$5.52

13

NUT This part replaces 08319-31105.

08319-3110A

$2.73

14

NUT This part replaces 08319-31108.

08319-31107

$2.73

15

BRACKET

62361-00A00

Unavailable

16

BOLT This part replaces 07110-06305.

07130-0630B

$3.37

17

SPACER

09180-06010

Unavailable

18

BOLT This part replaces 07110-06166.

07130-0616B

$2.39
