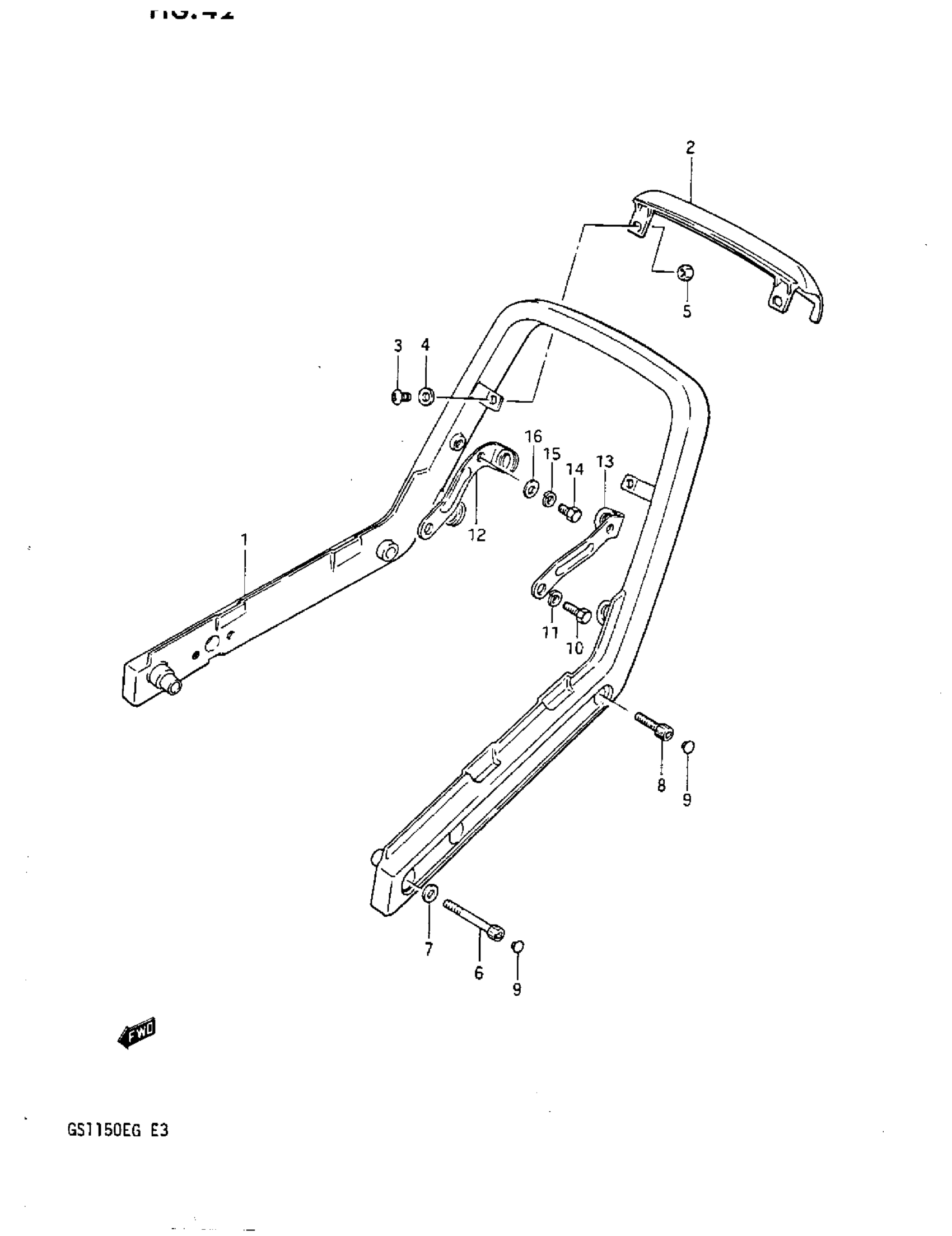

Suzuki GS1150 (1984) PILLION RIDER HANDLE Diagram

#

Description
Price

1

HANDLE, PILLION RIDER

46210-00A00

Unavailable

2

COVER, PILLION RIDER UPPER

46222-00A02

Unavailable

3

.SCREW This part replaces 02142-05126.

02142-0512A

$1.49

4

WASHER, FRONT This part replaces 08322-21056.

08322-0105A

$1.84

5

NUT This part replaces 08316-16056.

08316-1005A

$2.19

6

BOLT This part replaces 07110-08505.

07130-0850A

$4.17

7

WASHER This part replaces 08322-11084.

08322-0108A

$1.92

8

BOLT This part replaces 07110-08255.

07130-0825B

$3.37

9

CAP | GS1150ES3/ESE

09250-06004

$1.49

9

CAP | MODEL F/F2/G This part replaces 09250-06008.

09250-06016

$1.96

10

PLUG, DRAIN This part replaces 01107-08166.

01500-0816B

$2.50

11

LOCK WASHER This part replaces 08321-21086.

08321-0108A

$1.84

12

PLATE, RH

46230-00A00

Unavailable

13

PLATE, LH

46240-00A00

Unavailable

14

BOLT This part replaces 01107-08126.

01500-0812A

$2.28

15

LOCK WASHER This part replaces 08321-21086.

08321-0108A

$1.84

16

WASHER This part replaces 08322-11086.

08322-0108A

$1.92
