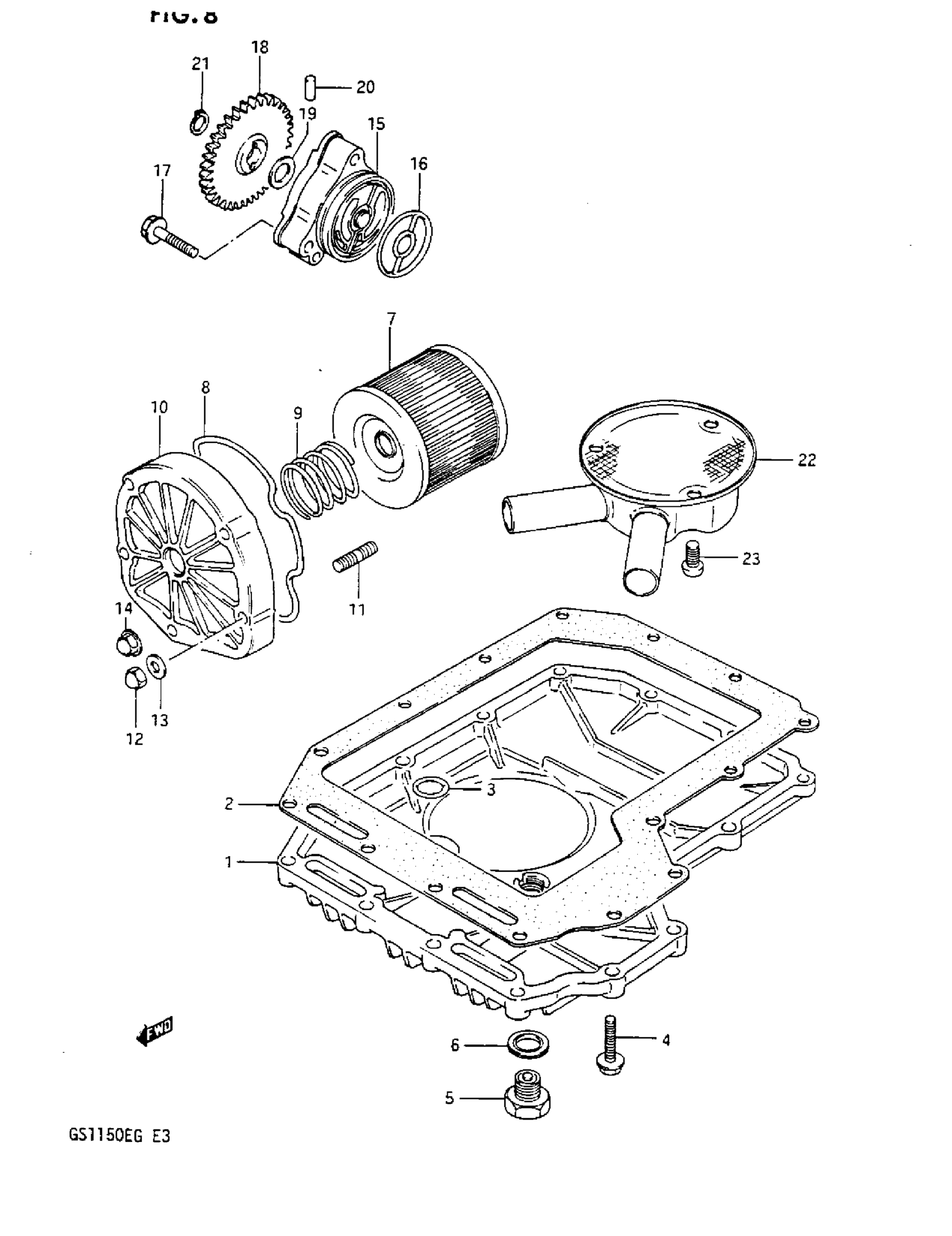

Suzuki GS1150 (1984) OIL PUMP-OIL FILTER Diagram

#

Description
Price

1

PAN OIL This part replaces 11511-49200.

11511-49201

Unavailable

2

GASKET,OIL PAN( | GS1150ES3/ESE ~E.NO.102247 This part replaces 11489-49200.

11489-49201-H17

$11.71

2

GASKET,OIL PAN( | GS1150ES3/ESE E.NO.102248~ MODEL F/F2/G This part replaces 11489-49201.

11489-49201-H17

$11.71

3

O-RING

09280-13001

$2.72

4

BOLT This part replaces 01517-06254.

01550-0625A

$1.97

5

PLUG (MAGNETO) This part replaces 09247-14001.

09247-14002

$5.24

6

GASKET

09168-14004

$1.83

7

FILTER, ENGINE OIL

16510-45040

$5.96

8

O-RING

16518-49200

$6.26

9

SPRING

09440-32004

$2.92

10

CAP

16531-00A00

Unavailable

11

STUD BOLT (L:25) This part replaces 01421-06258.

01421-06257

$2.85

12

NUT This part replaces 08313-11065.

08313-1006A

$1.84

13

.WASHER This part replaces 08322-21064.

08322-0106B

$2.26

14

NUT This part replaces 08313-21065.

08313-2006A

$1.97

15

PUMP, ENGINE OIL

16400-49220

Unavailable

16

O-RING

16491-31300

$13.90

17

BOLT

09103-06045

$2.53

18

GEAR, DRIVEN (NT:33)

16331-49000

Unavailable

19

WASHER

08221-10185

$2.15

20

PIN

09261-04009

$1.56

21

CIRCLIP

08331-31109

$1.78

22

STRAINER, ENGINE OIL

16520-49200

Unavailable

23

SCREW This part replaces 02112-06128.

02112-06127

$1.84
