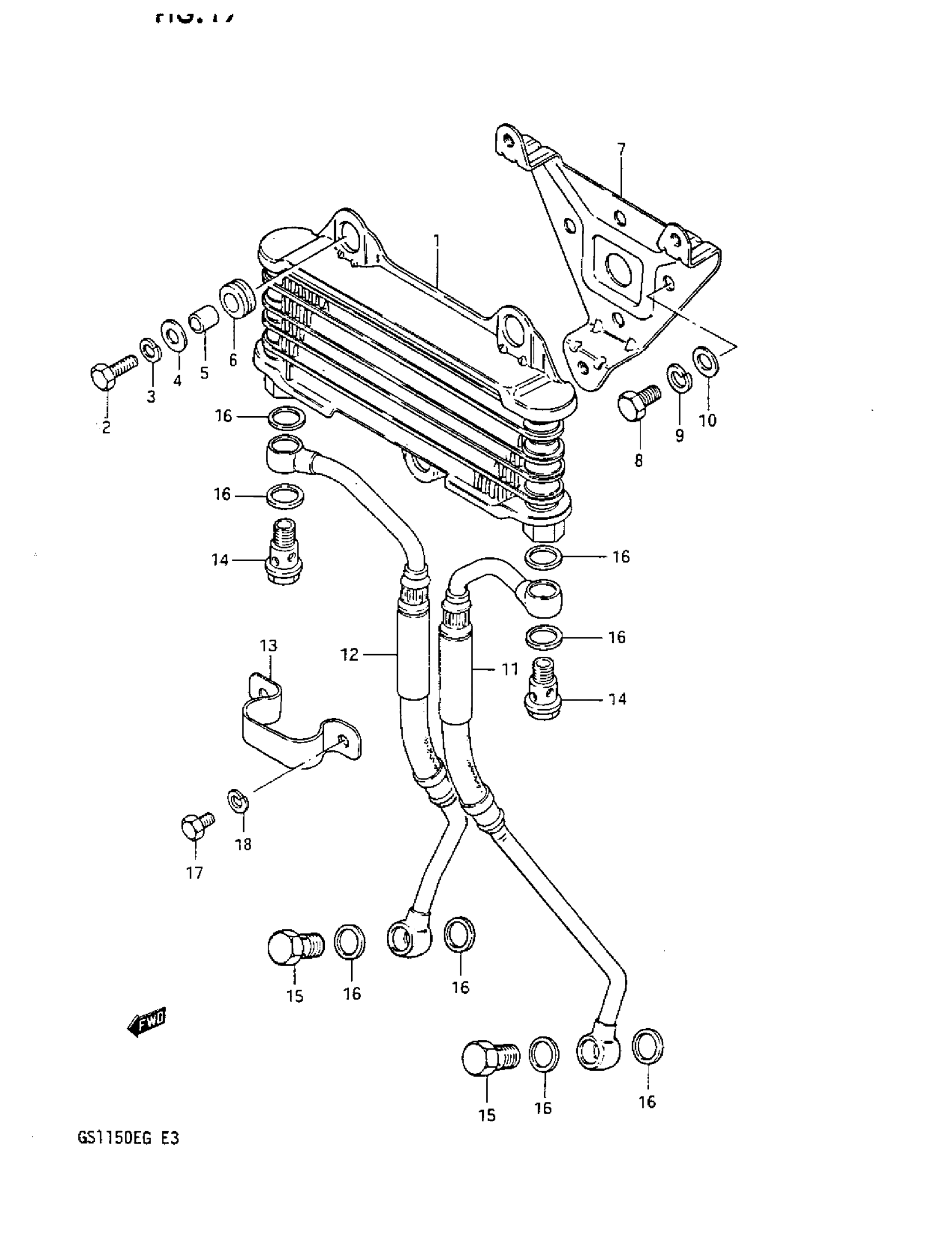

Suzuki GS1150 (1984) OIL COOLER Diagram

#

Description
Price

1

COOLER ASSY, ENGINE OIL

16600-00A00

Unavailable

2

BOLT, GEAR SHIFT ARM This part replaces 01107-06255.

01500-0625A

$1.78

3

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

4

WASHER (6.5X18X1.6) This part replaces 09160-06039.

09160-06109

$1.49

5

SPACER (6.5X10X10) This part replaces 09180-06030.

09180-06310

$1.91

6

CUSHION

09320-10015

$2.54

7

BRACKET

16620-00A00

Unavailable

8

PLUG, DRAIN This part replaces 01107-08165.

01500-0816B

$2.50

9

LOCK WASHER This part replaces 08321-21084.

08321-0108A

$1.84

10

WASHER This part replaces 08322-11084.

08322-0108A

$1.92

11

HOSE, OIL COOLER LH

16460-00A00

Unavailable

12

HOSE, OIL COOLER RH

16470-00A00

Unavailable

13

CLAMP

16631-00A00

Unavailable

14

BOLT, UNION (M:12XL:28.5) This part replaces 09360-12004.

09360-12006

$14.73

15

UNION BOLT, ENGINE SIDE

09360-14005

Unavailable

16

GASKET

09168-14011

$1.85

17

BOLT This part replaces 01107-06125.

01500-0612A

$1.78

18

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84
