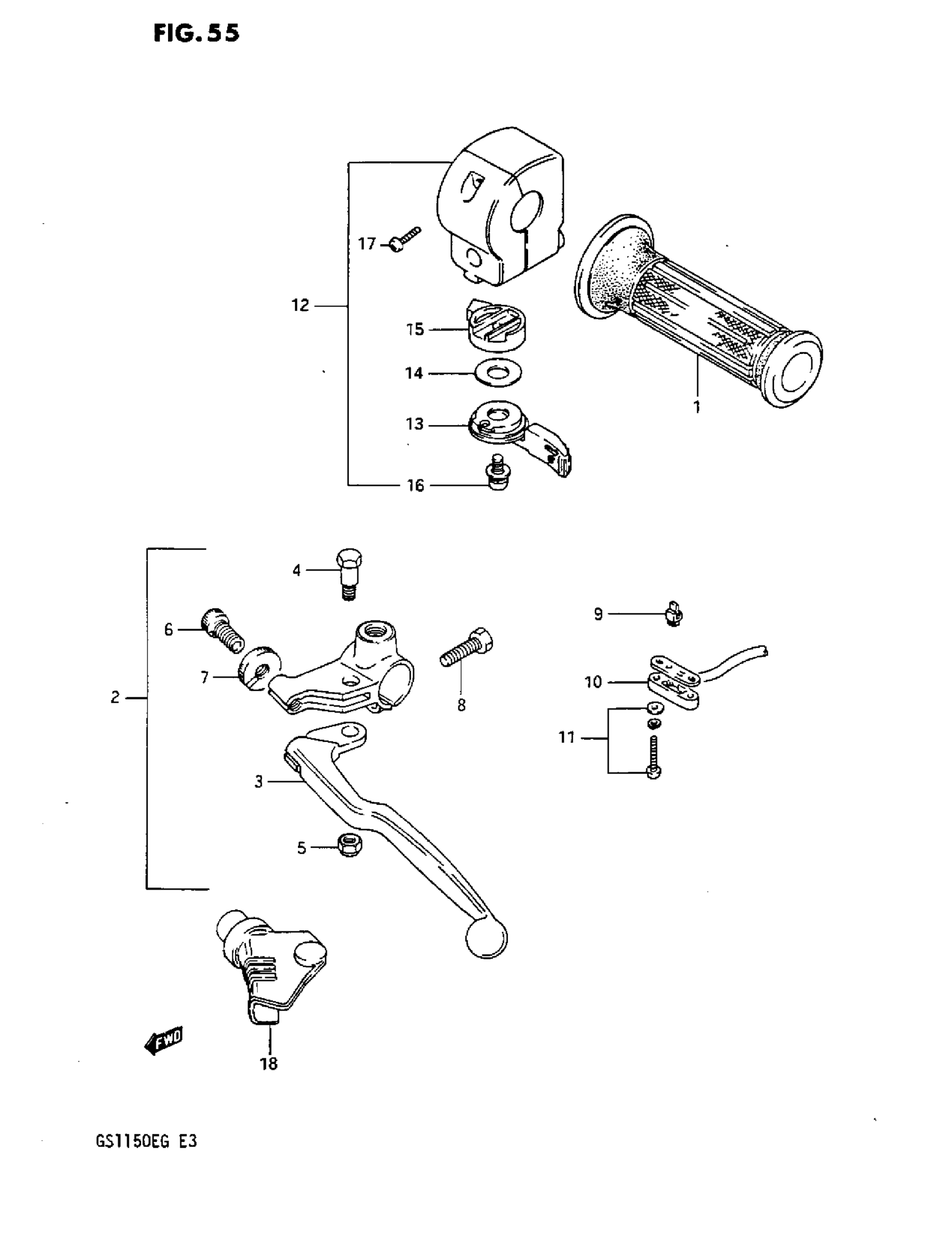

Suzuki GS1150 (1984) LEFT HANDLE SWITCH (GS1150EF/EF2/EG) Diagram

#

Description
Price

1

GRIP, LH

57211-49500

$13.95

2

LEVER, CLUTCH

57500-33430

Unavailable

3

LEVER, CLUTCH

57620-33410

Unavailable

4

BOLT This part replaces 57431-33450.

57531-14A00

$7.46

5

.NUT This part replaces 08319-21065.

08319-2106B

$2.32

6

ADJUSTER, CABLE

57441-11010

$5.62

7

NUT

57442-11010

$2.79

8

BOLT, GEAR SHIFT LINK This part replaces 01107-06205.

01500-0620A

$1.78

9

HOLDER

57465-18601

$4.34

10

COVER

57481-33010

$5.84

11

SCREW

57484-49110

$1.98

12

SWITCH ASSY,HAN This part replaces 37400-49530.

37400-45373

Unavailable

13

LEVER, STARTER

58721-27503

$7.51

14

WASHER

58722-03010

$3.71

15

BODY

37572-49441

$13.74

16

SCREW This part replaces 37574-49440.

02112-7516A

$2.41

17

SCREW This part replaces 02112-05165.

02112-05164

$2.63

18

COVER, CLUTCH LEVER

57661-33400

$8.12
