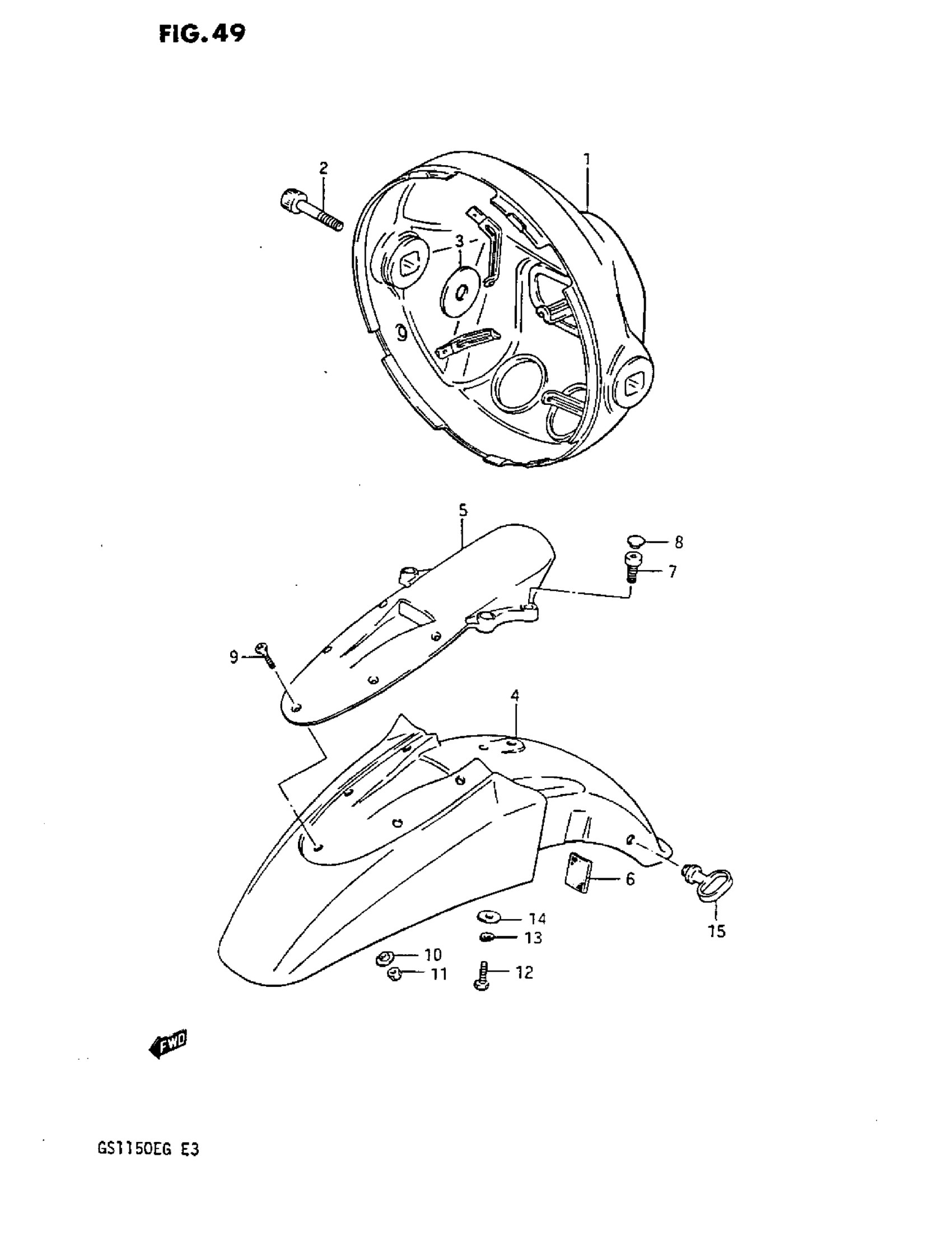

Suzuki GS1150 (1984) HOUSING HEADLAMP-FRONT FENDER (GS1150EF/EF2/EG) Diagram

#

Description
Price

1

HOUSING, HEADLAMP (BLACK)

51810-45900-019

Unavailable

2

BOLT This part replaces 07110-08307.

07130-08307

$3.89

3

WASHER, EXHAUST SUPPORT This part replaces 09160-08002.

09160-08135

$2.35

4

NO DESCRIPTION AVAILABLE | GS1150EF This part replaces 53111-00A00-019.

53111-00A20-13L

Unavailable

4

NO DESCRIPTION AVAILABLE | GS1150EF This part replaces 53111-00A00-12F.

53111-00A20-13L

Unavailable

4

NO DESCRIPTION AVAILABLE | GS1150EF2/EG This part replaces 53111-00A00-22R.

53111-00A20-13L

Unavailable

4

NO DESCRIPTION AVAILABLE | GS1150EG This part replaces 53111-00A00-22P.

53111-00A20-13L

Unavailable

5

BRACE, FRONT FENDER

53114-00A00

Unavailable

6

CUSHION This part replaces 53431-00A00.

61374-08010

Unavailable

7

BOLT This part replaces 07110-08165.

07130-0816A

$3.16

8

CAP

09250-06004

$1.49

9

SCREW This part replaces 02132-05164.

02122-0516B

Unavailable

10

WASHER This part replaces 09169-05011.

09169-05024

$2.06

11

.NUT This part replaces 08319-21055.

08319-2105A

$2.19

12

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

13

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

14

WASHER This part replaces 09160-06007.

09160-06084

$1.78

15

GUIDE, METER CABLE This part replaces 58621-21203.

58621-21204

$6.68
