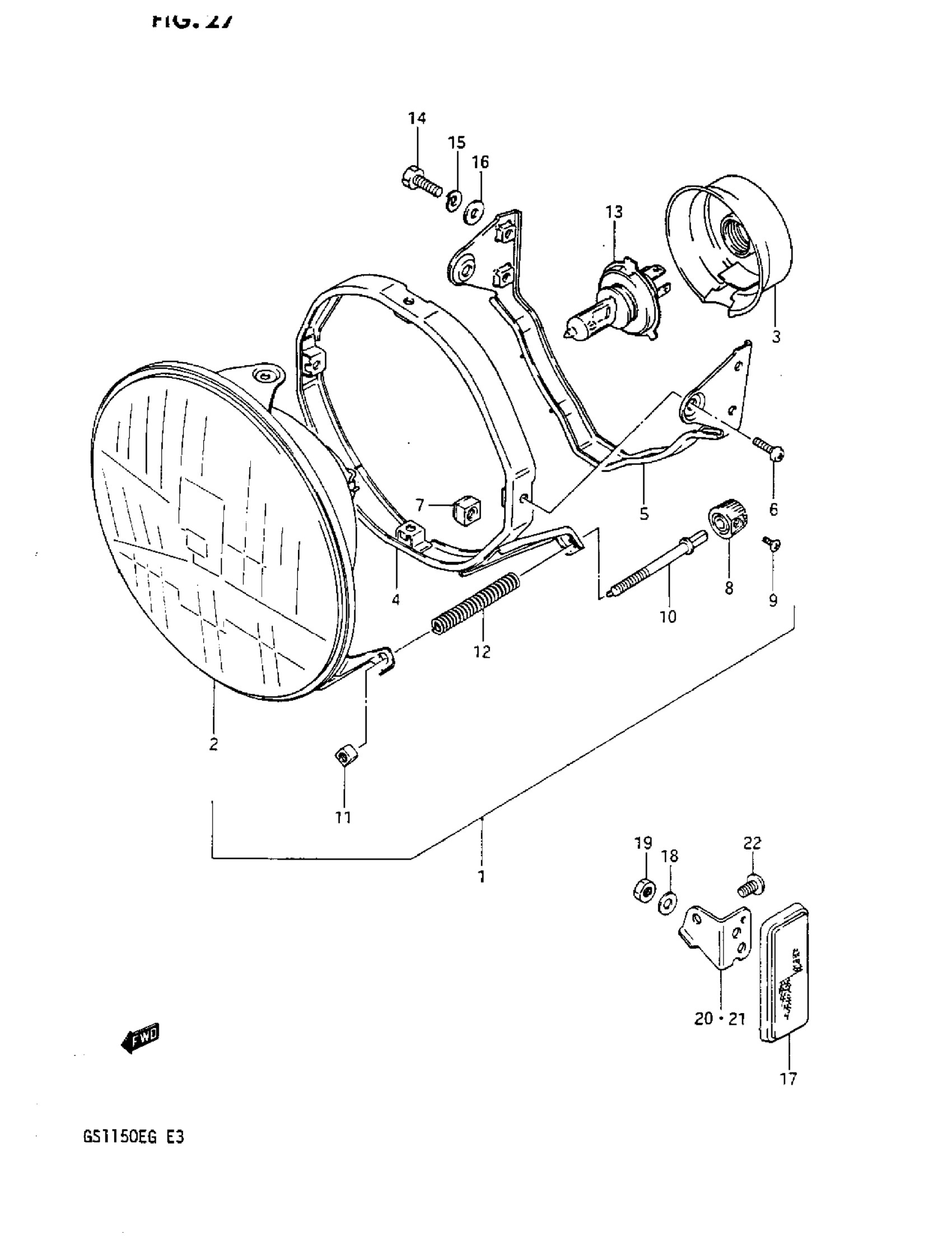

Suzuki GS1150 (1984) HEADLAMP (GS1150ES3/ESE/ESF) Diagram

#

Description
Price

1

HEADLAMP ASSY

35100-00A60-999

Unavailable

2

UNIT

35121-00A60

Unavailable

3

COVER, SOCKET This part replaces 35173-49200.

35173-38A00

$16.87

4

RING, MOUNTING

35130-00A60

Unavailable

5

HOUSING

35141-00A60

Unavailable

6

SCREW This part replaces 02112-05125.

02112-0512A

$1.49

7

NUT

35135-45900

$3.25

8

NO DESCRIPTION AVAILABLE This part replaces 35161-49320.

35136-49331

Unavailable

9

SCREW This part replaces 02112-03108.

02112-03107

$1.49

10

ADJUST SCREW, RH This part replaces 35151-49500.

35151-49320

Unavailable

11

NUT

35152-49500

Unavailable

12

SPRING

35154-49500

Unavailable

13

BULB (12V, 60/55W, H4)

09471-12060

$25.15

14

BOLT This part replaces 01107-06165.

01500-0616A

$1.78

15

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

16

.WASHER This part replaces 08322-21064.

08322-0106B

$2.26

17

REFLEX REFLECTOR, FRONT SIDE

35950-43431

$17.83

18

WASHER, FRONT This part replaces 08322-21055.

08322-0105A

$1.84

19

NUT This part replaces 08310-12055.

08310-0005A

$1.84

20

BRACKET, RH

35956-00A00

Unavailable

21

BRACKET, LH

35957-00A00

Unavailable

22

SCREW This part replaces 02142-05085.

02142-0508A

$1.49
