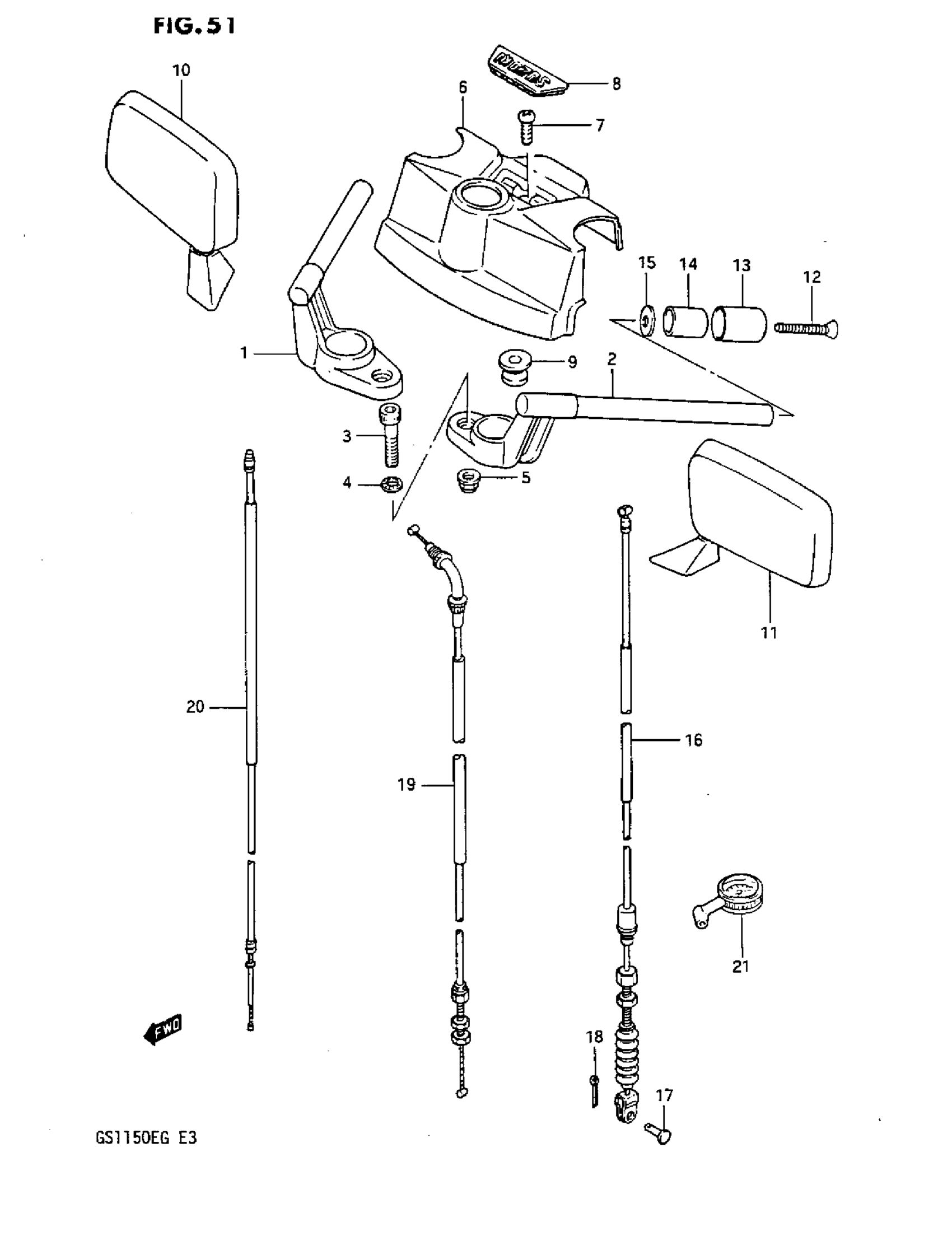

Suzuki GS1150 (1984) HANDLEBAR (GS1150ES3/ESE/ESF) Diagram

#

Description
Price

1

HANDLEBAR, RH

56111-00A31

Unavailable

2

HANDLEBAR, LH

56151-00A31

Unavailable

3

BOLT

09106-10023

$5.78

4

WASHER This part replaces 09164-10005.

09164-10010

$4.83

5

NUT This part replaces 08319-31105.

08319-3110A

$2.73

6

PAD, HANDLE

56170-00A10

Unavailable

7

SCREW This part replaces 02112-06168.

02112-06167

$1.49

8

CAP, HANDLE PAD

56174-00A00

Unavailable

9

CUSHION, HANDLE PAD

34956-31001

$4.37

10

MIRROR, REAR VIEW RH

56500-00A50

Unavailable

11

MIRROR, REAR VIEW LH

56600-00A50

Unavailable

12

SCREW | GS1150ES3/ESE This part replaces 02132-06655.

02122-0665B

$2.76

12

SCREW, LOWER | GS1150ESF This part replaces 02132-06505.

02122-0650B

$2.75

13

CAP | GS1150ES3/ESE This part replaces 56274-00A10.

56274-00A11

Unavailable

13

CAP | GS1150ESF This part replaces 56274-05350.

56274-31300

Unavailable

14

BALANCER (0D:32.2, L:45.5) | GS1150ES3/ESE

56271-00A00

Unavailable

14

BALANCER (0D:27.2, L:30) | GS1150ESF

56271-49400

Unavailable

15

SPACER This part replaces 56275-34400.

56275-34401

$4.02

16

CABLE, CLUTCH (FLAT TYPE)

58200-00A20

Unavailable

17

PIN, CLUTCH CABLE

09200-06011

Unavailable

18

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

19

CABLE,THROTTLE This part replaces 58300-00A20.

58300-00A00

Unavailable

20

NO DESCRIPTION AVAILABLE This part replaces 58410-00A20.

58410-00X02

Unavailable

21

GAUGE, FRONT FORK AIR

96200-41330

Unavailable
