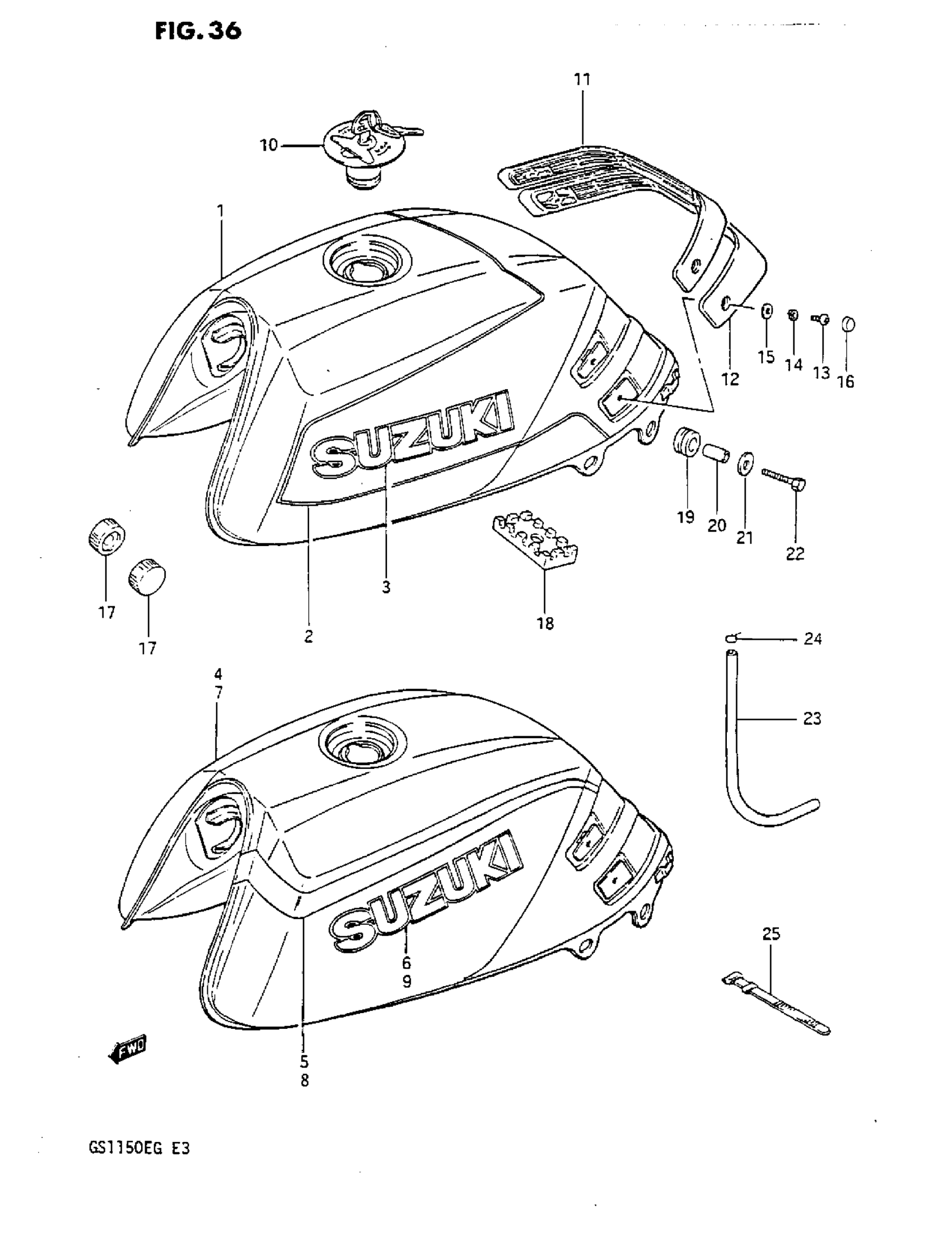

Suzuki GS1150 (1984) FUEL TANK (GS1150EF/EF2/EG) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | OTHER THAN CALIFORNIA This part replaces 44100-00A70-7JK.

44110-00A01-13L

Unavailable

1

NO DESCRIPTION AVAILABLE | GS1150EF CALIFORNIA ONLY This part replaces 44100-00A80-7JK.

44110-00A10-13L

Unavailable

1

NO DESCRIPTION AVAILABLE | OTHER THAN CALIFORNIA This part replaces 44100-00A70-7JH.

44110-00A01-13L

Unavailable

1

NO DESCRIPTION AVAILABLE | GS1150EF CALIFORNIA ONLY This part replaces 44100-00A80-7JH.

44110-00A10-13L

Unavailable

2

TAPE SET, FUEL TANK | FOR 7JK

68110-00A10-7JL

Unavailable

2

TAPE SET, FUEL TANK | FOR 7JH

68110-00A10-7JF

Unavailable

3

EMBLEM (SILVER) | FOR 7JK

68111-00A20-742

Unavailable

3

EMBLEM | FOR 7JH This part replaces 68111-00A20-019.

68111-29320-019

Unavailable

4

NO DESCRIPTION AVAILABLE | GS1150EF2 CALIFORNIA ONLY This part replaces 49100-00A60-7JH.

44110-00A10-13L

Unavailable

4

NO DESCRIPTION AVAILABLE | GS1150EF2 CALIFORNIA ONLY This part replaces 49100-00A60-7VZ.

44110-00A10-13L

Unavailable

5

(CA)TAPE, FUEL TANK (BLACK) | GS1150EF2 CALIFORNIA ONLY

68110-00A50-019

Unavailable

6

EMBLEM (BLACK) | GS1150EF2, FOR 7JH CALIFORNIA ONLY This part replaces 68111-31300-60K.

68181-17D00-019

Unavailable

6

NO DESCRIPTION AVAILABLE | GS1150EF2, FOR 7VZ CALIFORNIA ONLY This part replaces 68111-31300-73H.

68111-00A10-66P

Unavailable

7

TANK ASSY, FUEL | MODEL G

49100-00A80-7JH

Unavailable

7

NO DESCRIPTION AVAILABLE | MODEL G This part replaces 49100-00A80-7JK.

44110-00A01-13L

Unavailable

8

TAPE SET, FUEL TANK (BLACK) | MODEL G, FOR 7JH

68110-00A50-019

Unavailable

8

TAPE SET, FUEL TANK (WHITE) | MODEL G, FOR 7JK

68110-00A50-064

Unavailable

9

EMBLEM (RED) | MODEL G, FOR 7JH

68111-33200-07G

Unavailable

9

EMBLEM (WHITE) | MODEL G, FOR 7JK

68111-33200-22R

Unavailable

10

CAP ASSY, FUEL TANK | OTHER THAN CALIFORNIA

44200-43410-KEY

Unavailable

10

CAP, FUEL | CALIFORNIA ONLY This part replaces 44200-06A21-KEY.

44200-14830

Unavailable

11

KNEE GRIP, UPPER (BLACK)

44251-00A00-58R

Unavailable

12

KNEE GRIP, FUEL This part replaces 44252-00A00-58R.

44252-00A00-57S

Unavailable

13

SCREW This part replaces 02112-05088.

02112-05087

$1.49

14

LOCK WASHER This part replaces 08321-21057.

08321-0105A

$1.84

15

WASHER This part replaces 08322-21057.

08322-01057

$2.13

16

CAP, KNEE GRIP This part replaces 44253-00A00-58R.

44253-00A00-57S

Unavailable

17

CUSHION, FRONT

09329-10016

$3.10

18

CUSHION,FUEL TA This part replaces 44541-34500.

44541-34501

$12.87

19

CUSHION, REAR

09320-09017

$4.60

20

SPACER,6.5X9X20 This part replaces 09180-06107.

09180-06308

Unavailable

21

WASHER This part replaces 09160-06030.

09160-06136

$1.84

22

BOLT, REAR This part replaces 01107-06307.

01500-06307

$2.48

23

HOSE This part replaces 09343-05165.

09352-50005-00B

$13.93

24

CLIP

09401-08402

$1.49

25

CLAW

09407-18401

$2.07
