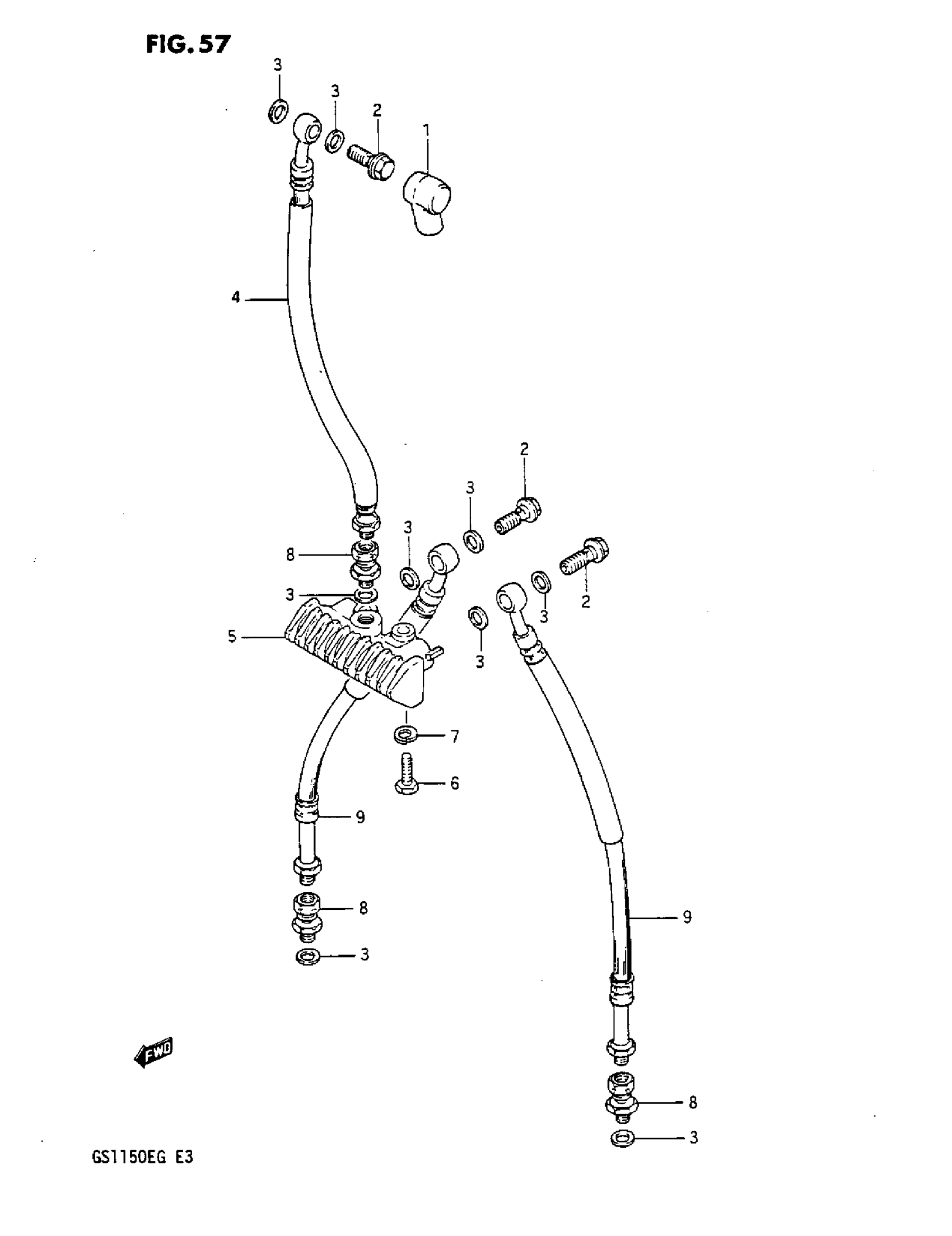

Suzuki GS1150 (1984) FRONT BRAKE HOSE Diagram

#

Description

Price

1

BOOT,MASTER CYL | GS1150ES3/ESE/ESF This part replaces 59711-04700.

59711-04701

$20.62

1

BOOT | GS1150EF/EF2/EG

59711-49001

$7.51

2

BOLT

09360-10017

$3.42

3

WASHER (10X15X1.5)

09161-10009

$1.84

4

HOSE, NO.1 (L:340) | GS1150ES3/ESE/ESF

59480-00A22

Unavailable

4

HOSE, NO.1 (L:420) | GS1150EF/EF2/EG

59480-00A02

Unavailable

5

JOINT

59490-00A00

Unavailable

6

BOLT, GEAR SHIFT LINK This part replaces 01107-06205.

01500-0620A

$1.78

7

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

8

ADAPTOR

59290-43500

$36.17

9

HOSE NO.2

59240-00A02

Unavailable
