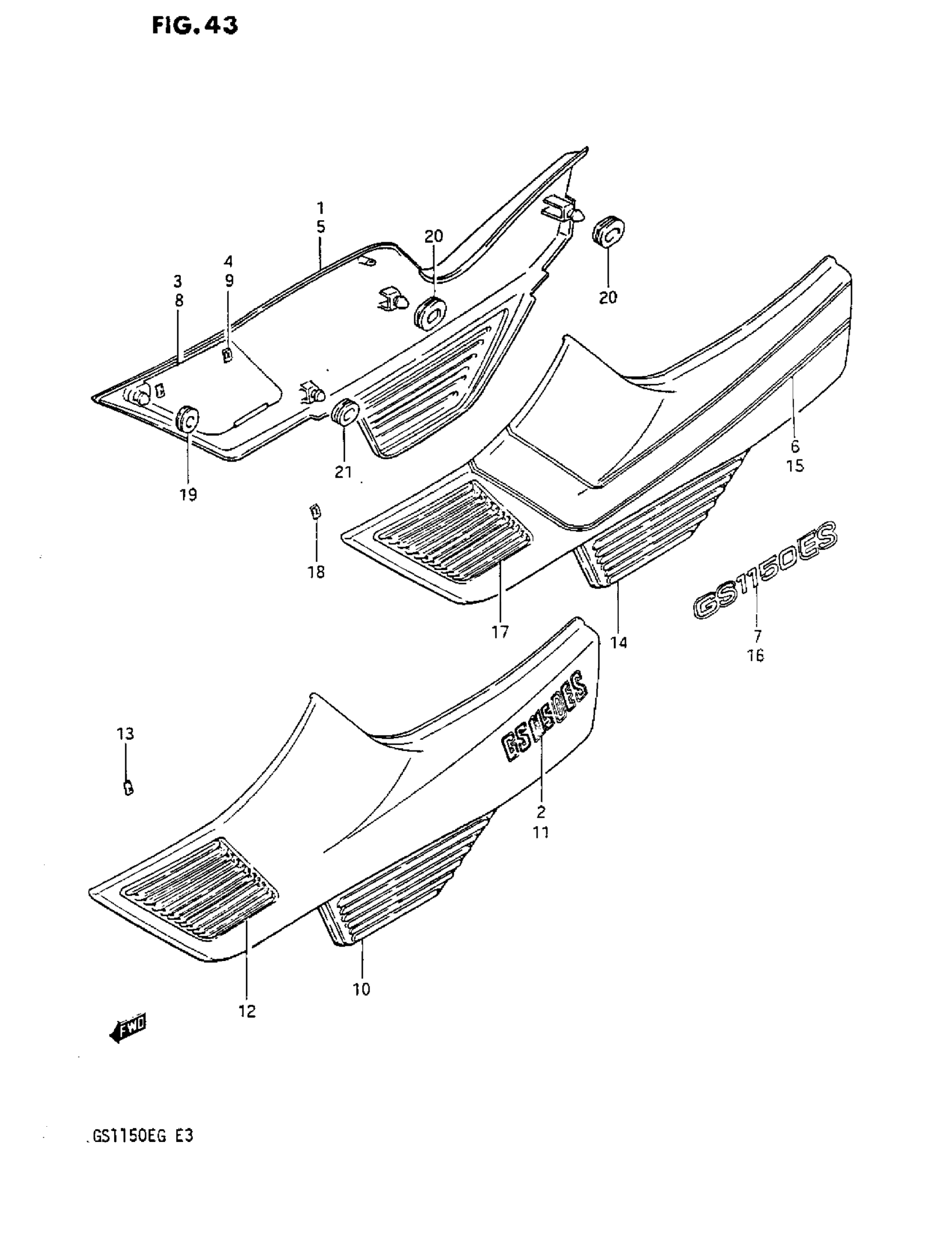

Suzuki GS1150 (1984) FRAME COVER (GS1150ES3/ESE/ESF) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | GS1150ES3/ESE This part replaces 47100-00A30-17R.

47110-00A00

Unavailable

1

NO DESCRIPTION AVAILABLE | GS1150ES3/ESE This part replaces 47100-00A30-04Y.

47110-00A00

Unavailable

2

EMBLEM | GS1150ES3/ESE, FOR 17R

68131-00A10-60K

Unavailable

2

EMBLEM | GS1150ES3/ESE, FOR 04Y

68131-00A10-71L

Unavailable

3

NO DESCRIPTION AVAILABLE | GS1150ES3/ESE This part replaces 47112-00A00-019.

47112-00A00

Unavailable

4

NUT | GS1150ES3/ESE

09148-03002

$2.15

5

NO DESCRIPTION AVAILABLE | MODEL F This part replaces 47600-00A00-7JH.

47110-00A00

Unavailable

5

NO DESCRIPTION AVAILABLE | MODEL F This part replaces 47600-00A00-7JJ.

47110-00A00

Unavailable

6

TAPE SET, FRAME COVER RH | MODEL F, FOR 7JH

68130-00A20-7JF

Unavailable

6

TAPE SET, FRAME COVER RH | MODEL F, FOR 7JJ

68130-00A20-7JG

Unavailable

7

EMBLEM | MODEL F, FOR 7JH

68131-00A30-7JH

Unavailable

7

EMBLEM | MODEL F, FOR 7JJ

68131-00A30-7JJ

Unavailable

8

NO DESCRIPTION AVAILABLE | MODEL F, FOR 7JH This part replaces 47112-00A00-12F.

47112-00A00

Unavailable

8

COVER, FRAME RH NO.1 (RED) | MODEL F, FOR 7JJ

47112-00A00-22P

Unavailable

9

NUT | MODEL F

09148-03002

$2.15

10

NO DESCRIPTION AVAILABLE | GS1150ES3/ESE This part replaces 47200-00A30-17R.

47210-00A00

Unavailable

10

NO DESCRIPTION AVAILABLE | GS1150ES3/ESE This part replaces 47200-00A30-04Y.

47210-00A00

Unavailable

11

EMBLEM | GS1150ES3/ESE, FOR 17R

68131-00A10-60K

Unavailable

11

EMBLEM | GS1150ES3/ESE, FOR 04Y

68131-00A10-71L

Unavailable

12

NO DESCRIPTION AVAILABLE | GS1150ES3/ESE This part replaces 47212-00A00-019.

47212-00A00

Unavailable

13

NUT | GS1150ES3/ESE

09148-03002

$2.15

14

NO DESCRIPTION AVAILABLE | MODEL F This part replaces 47700-00A00-7JH.

47210-00A00

Unavailable

14

NO DESCRIPTION AVAILABLE | MODEL F This part replaces 47700-00A00-7JJ.

47210-00A00

Unavailable

15

TAPE SET, FRAME COVER LH | MODEL F, FOR 7JH

68140-00A20-7JF

Unavailable

15

TAPE SET, FRAME COVER LH | MODEL F, FOR 7JJ

68140-00A20-7JG

Unavailable

16

EMBLEM | MODEL F, FOR 7JH

68131-00A30-7JH

Unavailable

16

EMBLEM | MODEL F, FOR 7JJ

68131-00A30-7JJ

Unavailable

17

NO DESCRIPTION AVAILABLE | MODEL F, FOR 7JH This part replaces 47212-00A00-12F.

47212-00A00

Unavailable

17

NO DESCRIPTION AVAILABLE | MODEL F, FOR 7JJ This part replaces 47212-00A00-22P.

47212-00A00

Unavailable

18

NUT | MODEL F

09148-03002

$2.15

19

CUSHION, FRONT

09320-08018

$3.04

20

CUSHION

09329-08003

$3.16

21

CUSHION, REAR

09320-07007

Unavailable
