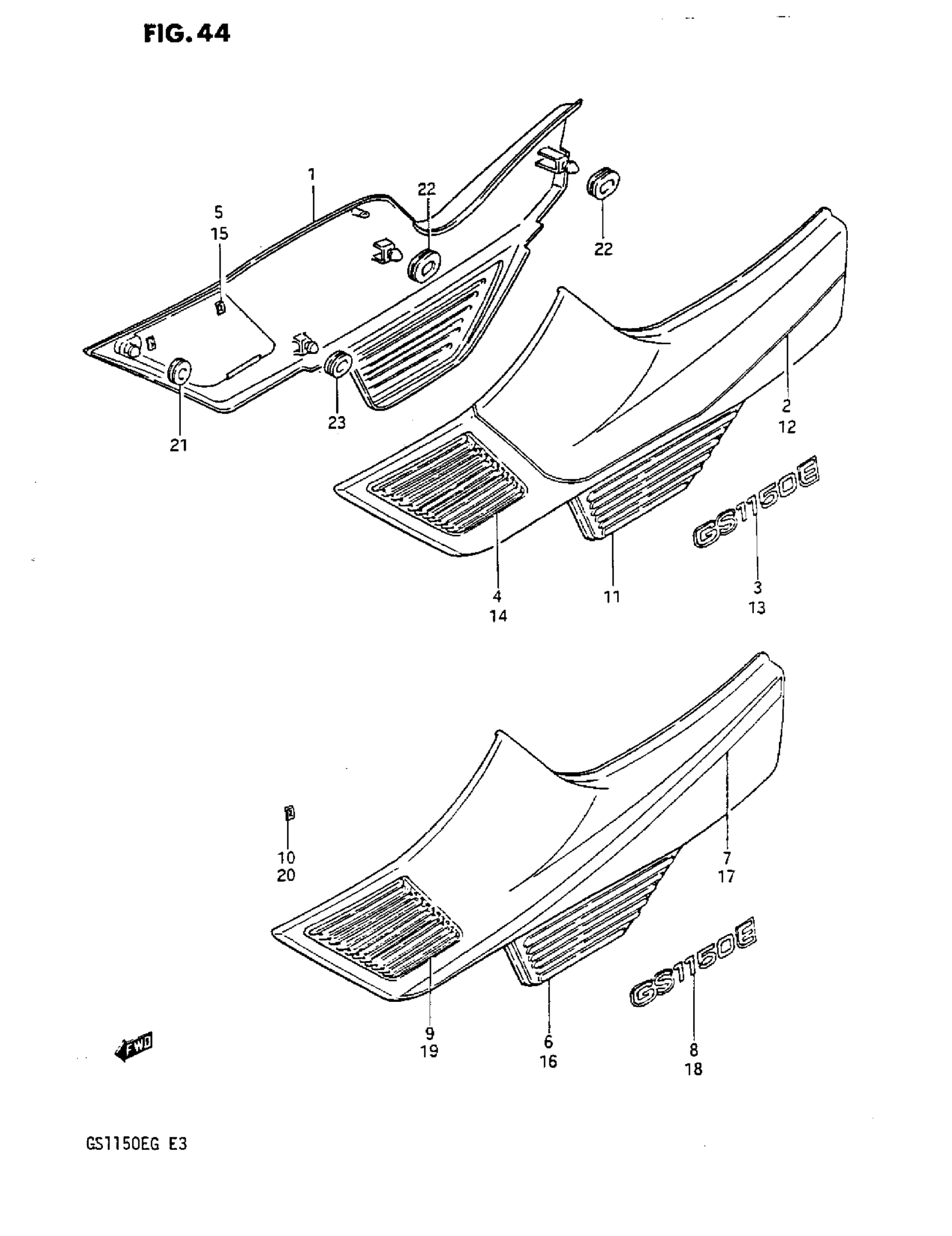

Suzuki GS1150 (1984) FRAME COVER (GS1150EF/EF2/EG) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | GS1150EF This part replaces 47100-00A80-7JK.

47110-00A00

Unavailable

1

NO DESCRIPTION AVAILABLE | GS1150EF This part replaces 47100-00A80-7JH.

47110-00A00

Unavailable

2

TAPE SET, FRAME COVER RH | GS1150EF, FOR 7JK

68130-00A10-7JL

Unavailable

2

TAPE SET, FRAME COVER RH | GS1150EF, FOR 7JH

68130-00A10-7JF

Unavailable

3

EMBLEM | GS1150EF, FOR 7JK

68131-00A20-7JS

Unavailable

3

NO DESCRIPTION AVAILABLE | GS1150EF, FOR 7JH This part replaces 68131-00A20-7JT.

68131-00A90-8EJ

Unavailable

4

NO DESCRIPTION AVAILABLE | GS1150EF, FOR 7JK This part replaces 47112-00A00-019.

47112-00A00

Unavailable

4

NO DESCRIPTION AVAILABLE | GS1150EF, FOR 7JH This part replaces 47112-00A00-12F.

47112-00A00

Unavailable

5

NUT | GS1150EF

09148-03002

$2.15

6

NO DESCRIPTION AVAILABLE | GS1150EF2/EG This part replaces 47600-00A50-7JH.

47110-00A00

Unavailable

6

NO DESCRIPTION AVAILABLE | GS1150EG This part replaces 47600-00A50-7JK.

47110-00A00

Unavailable

6

NO DESCRIPTION AVAILABLE | GS1150EF2 CALIFORNIA ONLY This part replaces 47600-00A50-7VZ.

47110-00A00

Unavailable

7

TAPE SET, RH (BLACK) | GS1150EF2/EG, FOR 7JH, 7VZ

68130-00A70-019

Unavailable

7

TAPE SET, RH (WHITE) | GS1150EG, FOR 7JK

68130-00A70-064

Unavailable

8

EMBLEM | GS1150EF2/EG

68131-00A20-7JH

Unavailable

8

EMBLEM | GS1150EG, FOR 7JK

68131-00A20-60K

Unavailable

8

(CA)EMBLEM | GS1150EF2 CALIFORNIA ONLY

68131-00A20-7VZ

Unavailable

9

COVER, RH NO.1 (WHITE) | GS1150EF2/EG, FOR 7JH, 7VZ

47112-00A00-22R

Unavailable

9

COVER, RH NO.1 (RED) | GS1150EG

47112-00A00-22P

Unavailable

10

NUT | GS1150EF2/EG

09148-03002

$2.15

11

NO DESCRIPTION AVAILABLE | GS1150EF This part replaces 47200-00A80-7JK.

47210-00A00

Unavailable

11

NO DESCRIPTION AVAILABLE | GS1150EF This part replaces 47200-00A80-7JH.

47210-00A00

Unavailable

12

TAPE SET, FRAME COVER LH | GS1150EF, FOR 7JK

68140-00A10-7JL

Unavailable

12

TAPE SET, FRAME COVER LH | GS1150EF, FOR 7JH

68140-00A10-7JF

Unavailable

13

EMBLEM | GS1150EF, FOR 7JK

68131-00A20-7JS

Unavailable

13

NO DESCRIPTION AVAILABLE | GS1150EF, FOR 7JH This part replaces 68131-00A20-7JT.

68131-00A90-8EJ

Unavailable

14

NO DESCRIPTION AVAILABLE | GS1150EF, FOR 7JK This part replaces 47212-00A00-019.

47212-00A00

Unavailable

14

NO DESCRIPTION AVAILABLE | GS1150EF, FOR 7JH This part replaces 47212-00A00-12F.

47212-00A00

Unavailable

15

NUT | GS1150EF

09148-03002

$2.15

16

NO DESCRIPTION AVAILABLE | GS1150EF2/EG This part replaces 47700-00A50-7JH.

47210-00A00

Unavailable

16

NO DESCRIPTION AVAILABLE | GS1150EG This part replaces 47700-00A50-7JK.

47210-00A00

Unavailable

16

NO DESCRIPTION AVAILABLE | GS1150EF2 CALIFORNIA ONLY This part replaces 47700-00A50-7VZ.

47210-00A00

Unavailable

17

TAPE SET, LH (BLACK) | GS1150EF2/EG, FOR 7JH, 7VZ

68140-00A70-019

Unavailable

17

TAPE SET, LH (WHITE) | GS1150EG

68140-00A70-064

Unavailable

18

EMBLEM | GS1150EF2/EG

68131-00A20-7JH

Unavailable

18

EMBLEM | GS1150EG, FOR 7JK

68131-00A20-60K

Unavailable

18

(CA)EMBLEM | GS1150EF2 CALIFORNIA ONLY

68131-00A20-7VZ

Unavailable

19

COVER, LH NO.1 (WHITE) | GS1150EF2/EG, FOR 7JH, 7VZ

47212-00A00-22R

Unavailable

19

NO DESCRIPTION AVAILABLE | GS1150EG, FOR 7JK This part replaces 47212-00A00-22P.

47212-00A00

Unavailable

20

NUT | GS1150EF2/EG

09148-03002

$2.15

21

CUSHION, FRONT

09320-08018

$3.04

22

CUSHION

09329-08003

$3.16

23

CUSHION, REAR

09320-07007

Unavailable
