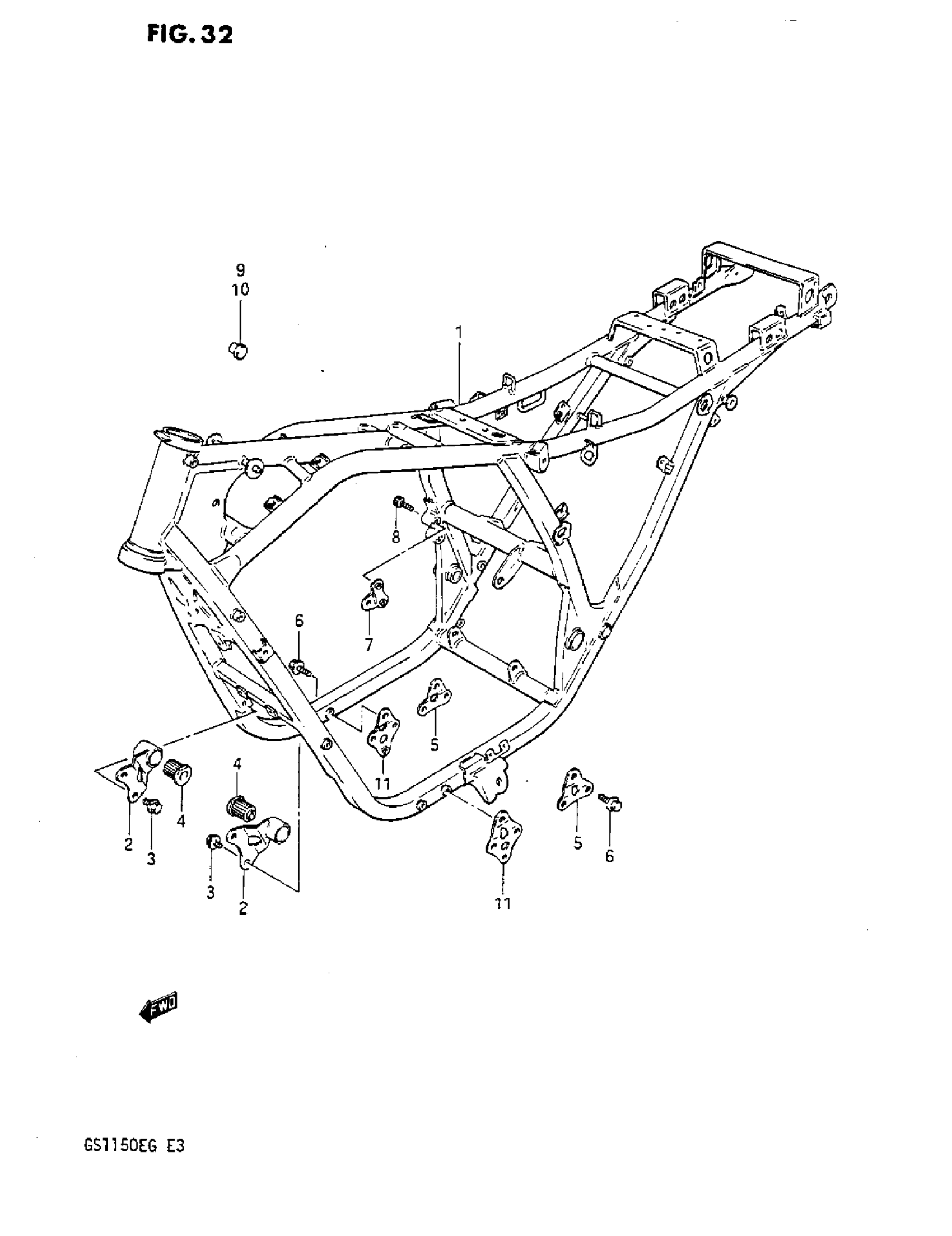

Suzuki GS1150 (1984) FRAME Diagram

#

Description
Price

1

FRAME (SILVER) | GS1150ES3/ESE/MODEL F/F2 This part replaces 41100-00A01-13L.

41100-00A02-13L

Unavailable

1

FRAME (SILVER) | MODEL G

41100-00A02-13L

Unavailable

2

PLATE, NO.1 (BLACK) | GS1150ES3/ESE This part replaces 41910-00A00-15T.

41910-00A01-15T

Unavailable

2

PLATE, NO.1 (BLACK) | MODEL F/F2/G

41910-00A01-15T

Unavailable

3

BOLT This part replaces 01517-08128.

01550-08127

$2.85

3

BOLT (8X12) | MODEL F2 This part replaces 01517-08125.

01550-0812A

$2.32

4

BUSH

09319-10042

$17.50

5

PLATE, NO.2 (SILVER) | GS1150ES3/ESE This part replaces 41921-00A00-13L.

41921-00A01-13L

Unavailable

5

PLATE, NO.2 (SILVER) | MODEL F/F2/G

41921-00A01-13L

Unavailable

6

BOLT This part replaces 01517-08128.

01550-08127

$2.85

6

BOLT (8X12) | MODEL F2 This part replaces 01517-08125.

01550-0812A

$2.32

7

PLATE, NO.4 (BLACK) | GS1150ES3/ESE This part replaces 41940-00A00-15T.

41940-00A01-15T

Unavailable

7

PLATE, NO.4 (BLACK) | MODEL F/F2/G

41940-00A01-15T

Unavailable

8

BOLT This part replaces 07110-08258.

07130-08257

$3.43

8

BOLT | MODEL F2 This part replaces 07110-08255.

07130-0825B

$3.37

9

CAP This part replaces 09250-06008.

09250-06016

$1.96

10

PLUG | GS1150EF/EF2/EG This part replaces 09250-06007.

09250-06005

$2.15

11

PLATE, NO.2 (SILVER) | OPT

41920-00A11-13L

Unavailable
