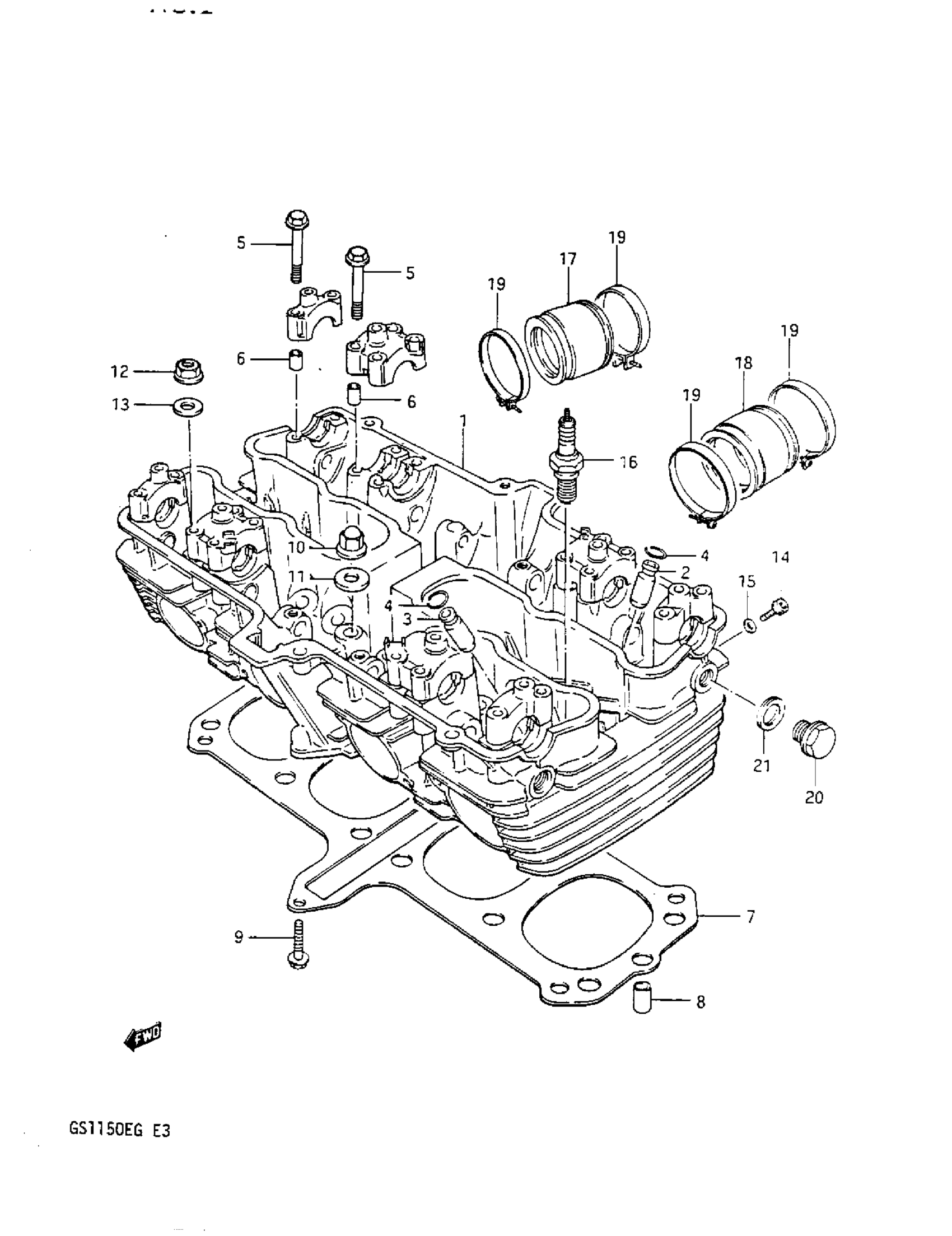

Suzuki GS1150 (1984) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER

11100-00A03

Unavailable

2

GUIDE, INTAKE VALVE

11115-49290

Unavailable

3

GUIDE, EXHAUST VALVE

11115-49290

Unavailable

4

.RING (10X85)

09381-10004

$1.50

5

BOLT (6X39)

09103-06026

$1.98

6

PIN

09206-08001

$1.78

7

GASKET, CYLINDER HEAD

11141-00A03

$145.53

8

PIN

04211-11189

$1.78

9

BOLT This part replaces 01517-06305.

01550-0630A

$2.32

10

NUT

09159-10026

$6.20

11

GASKET

09168-10017

$3.04

12

NUT, WHEEL SET This part replaces 08316-16108.

08316-10107

$2.39

13

WASHER

09160-10039

$2.26

14

NO DESCRIPTION AVAILABLE This part replaces 07110-05085.

07130-05083

Unavailable

15

GASKET

09168-05010

$1.71

16

SPARK PLUG (NGK,DR9EA) This part replaces 09482-00184.

09482-00400

$5.24

16

SPARK PLUG (ND, X27ES-U)

09482-00185

Unavailable

17

PIPE,INTAKE,R This part replaces 13111-00A00.

13111-00A01

$18.22

18

PIPE,INTAKE,R This part replaces 13121-00A00.

13111-00A01

$18.22

19

CLAMP

09402-52306

$4.91

20

PLUG This part replaces 09247-14012.

09247-14026

$3.76

21

GASKET

09168-14004

$1.83
