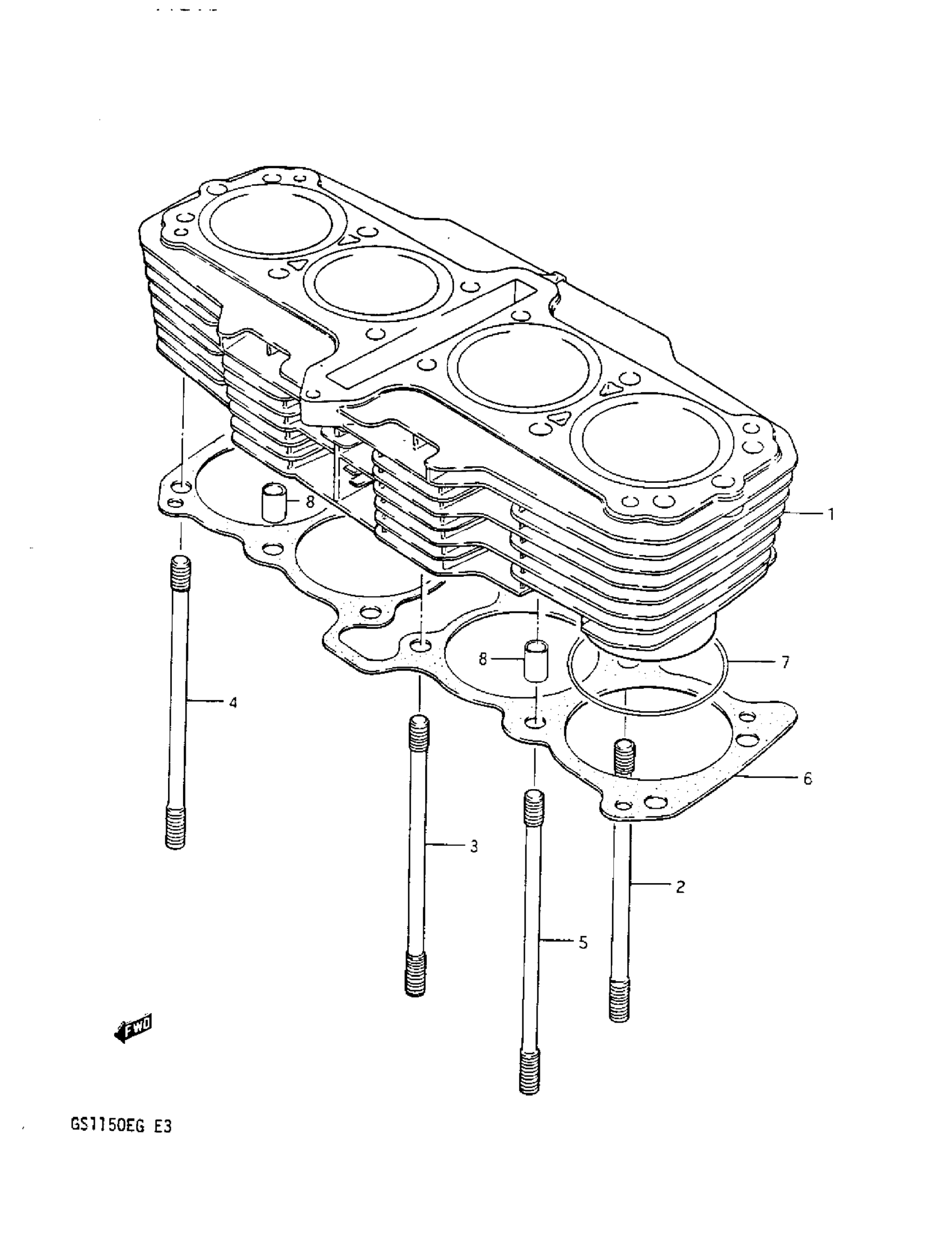

Suzuki GS1150 (1984) CYLINDER (GS1150ES3/ESE -101424) Diagram

#

Description

Price

1

CYLINDER This part replaces 11210-00A05.

11210-00A06

Unavailable

2

STUD BOLT (L:161)

09108-10060

Unavailable

3

STUD BOLT (L:161) This part replaces 09108-10057.

09108-10069

Unavailable

4

STUD BOLT (L:168) This part replaces 09108-10028.

09108-10112

$12.49

5

STUD BOLT (L:176)

09108-10068

Unavailable

6

GASKET, CYLINDER

11241-00A02

Unavailable

7

O-RING

09280-77002

Unavailable

8

PIN This part replaces 09206-13006.

09206-13017

$7.61
