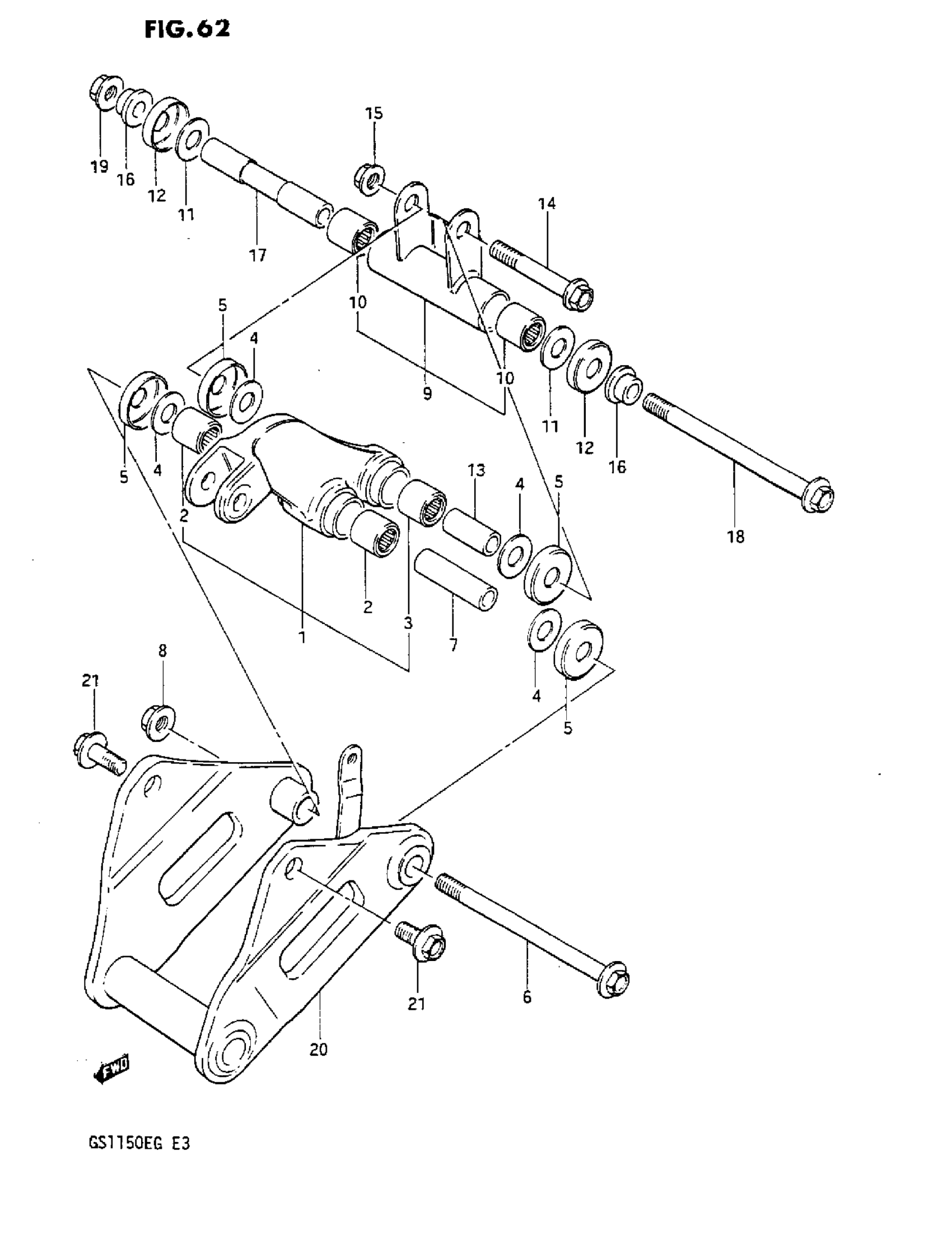

Suzuki GS1150 (1984) CUSHION LEVER Diagram

#

Description
Price

1

LEVER SET, CUSHION

62600-00810

Unavailable

2

BEARING, CENTER (17X24X20) This part replaces 09263-17011.

09263-17027

$19.48

3

.BEARING (17X24X25) This part replaces 09263-17020.

09263-17053

$21.66

4

THRUST WASHER

08211-12281

$2.53

5

COVER This part replaces 61262-41500.

61262-41501

Unavailable

6

SHAFT

62657-31301

Unavailable

7

SPACER

62623-00A00

Unavailable

8

NUT This part replaces 08319-31125.

08319-3112B

$5.00

9

ROD SET, CUSHION

62600-00820

Unavailable

10

BEARING, CENTER (17X24X20) This part replaces 09263-17011.

09263-17027

$19.48

11

THRUST WASHER

08211-12281

$2.53

12

COVER This part replaces 61262-41500.

61262-41501

Unavailable

13

SPACER, UPPER

62646-15500

Unavailable

14

BOLT, LOWER This part replaces 62648-15500.

62668-42A02

$10.67

15

NUT This part replaces 08319-31125.

08319-3112B

$5.00

16

SPACER, LOWER

62626-00A00

Unavailable

17

SPACER, LOWER

62656-15500

Unavailable

18

BOLT

62657-31301

Unavailable

19

NUT This part replaces 08319-31125.

08319-3112B

$5.00

20

BRACKET

62410-00A00

Unavailable

21

BOLT

62413-00A00

Unavailable
