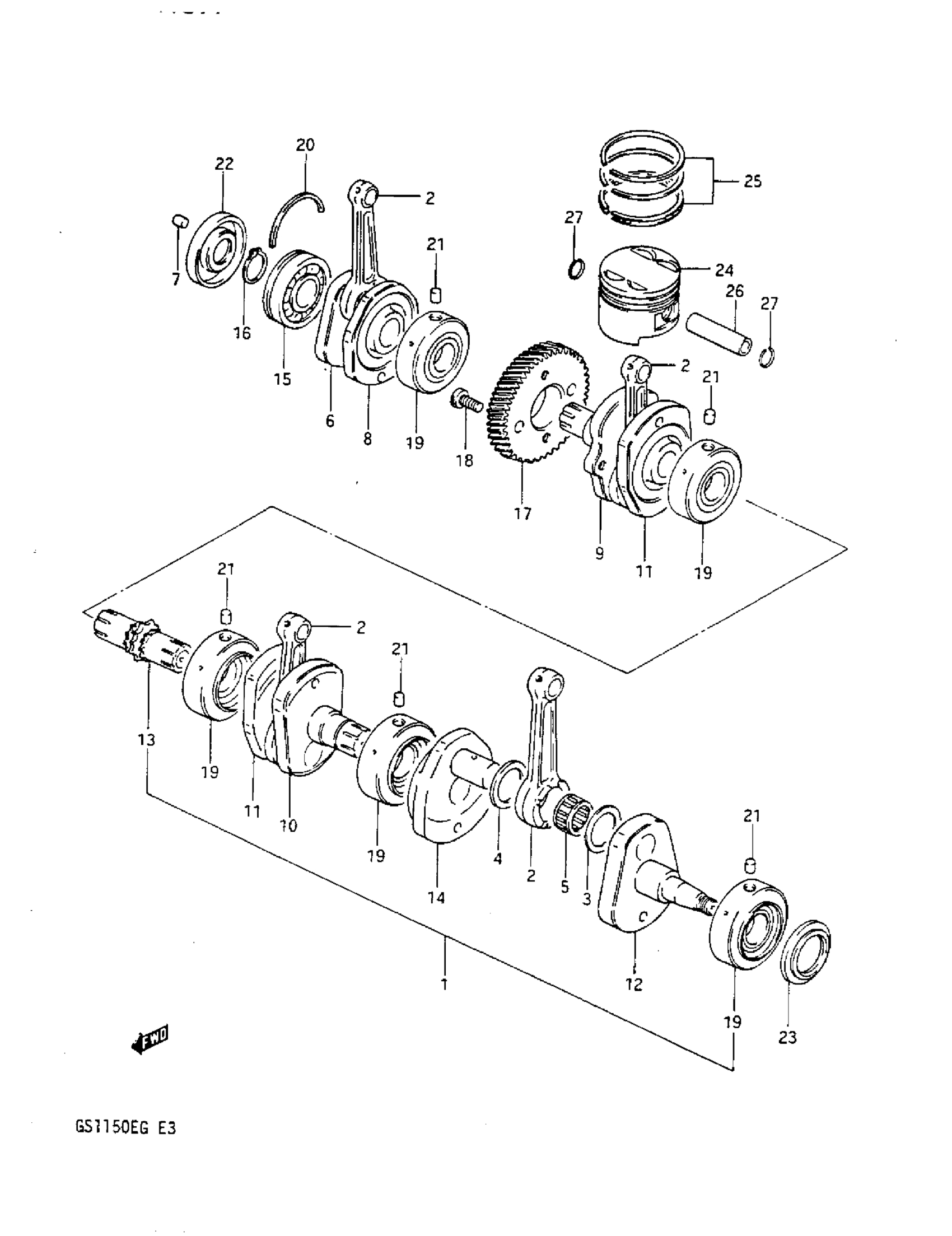

Suzuki GS1150 (1984) CRANKSHAFT Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 12200-00A07.

12200-00A08

Unavailable

2

ROD, CONNECTING

12161-00A03

Unavailable

3

WASHER

09160-31002

$7.82

4

WASHER

09160-31003

Unavailable

5

BEARING

09263-31004

$64.62

6

CRANKSHAFT, RH

12220-49202

Unavailable

7

PIN (4X13.8)

04221-04089

$1.49

8

NO DESCRIPTION AVAILABLE This part replaces 12230-49201.

12230-49202

Unavailable

9

NO DESCRIPTION AVAILABLE This part replaces 12241-49202.

12241-49203

Unavailable

10

NO DESCRIPTION AVAILABLE This part replaces 12271-49202.

12271-49203

Unavailable

11

NO DESCRIPTION AVAILABLE This part replaces 12250-49201.

12250-49202

Unavailable

12

CRANKSHAFT, LH

12261-49601

Unavailable

13

SHAFT, CHAIN DRIVE (NT:15)

12281-49200

Unavailable

14

NO DESCRIPTION AVAILABLE This part replaces 12290-49201.

12290-49202

Unavailable

15

BEARING, RH

09262-30033

Unavailable

16

CIRCLIP This part replaces 08331-11308.

08331-31309

$2.57

17

NO DESCRIPTION AVAILABLE This part replaces 21111-00A00.

21111-00A02

Unavailable

18

BOLT This part replaces 09106-08043.

07130-0816A

$3.16

19

BEARING

09264-32009

$201.55

20

C RING, BEARING RH

09390-72004

Unavailable

21

PIN

04221-07129

$1.86

22

OIL SEAL, RH

09283-30021

$19.20

23

OIL SEAL, LH

09289-48002

$10.77

24

PISTON (STD)

12111-00A07

Unavailable

24

NO DESCRIPTION AVAILABLE | OPT This part replaces 12111-00A07-050.

12103-00820-050

Unavailable

24

PISTON (OS:1.0) | OPT

12111-00A07-100

Unavailable

25

RING SET, PISTON (STD)

12140-00A24

Unavailable

25

RING SET, PISTON (OS:0.5) | OPT

12140-00A24-050

Unavailable

25

RING SET, PISTON (OS:1.0) | OPT

12140-00A24-100

Unavailable

26

PIN,PISTON This part replaces 12151-00A10.

12151-05A00

$15.61

27

CIRCLIP

09381-20004

$1.65
