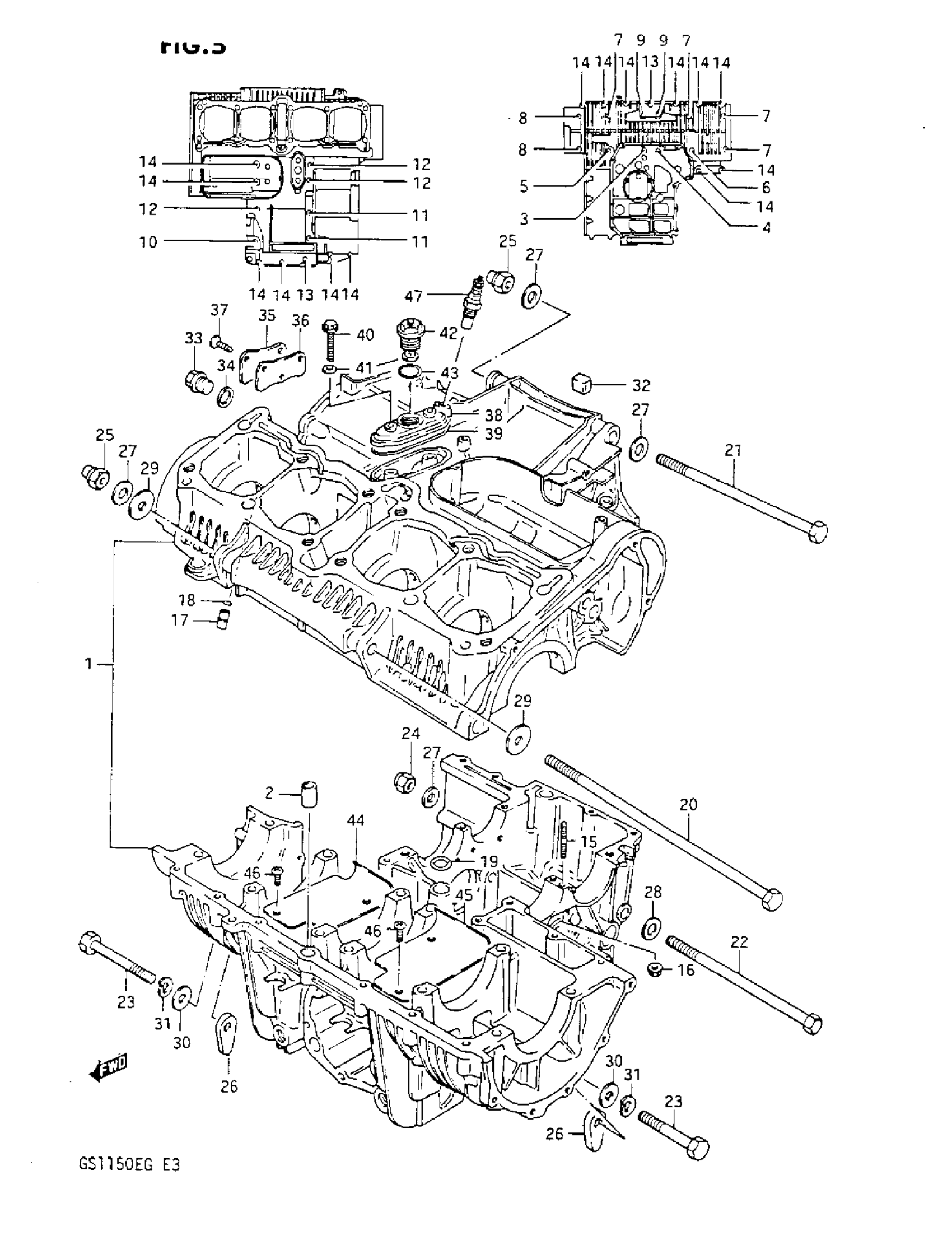

Suzuki GS1150 (1984) CRANKCASE (GS1150ES3/ESE -102247) Diagram

#

Description
Price

1

CRANKCASE SET This part replaces 11300-00812.

11300-00817

Unavailable

2

PIN This part replaces 09206-13001.

04211-13189

$2.19

3

BOLT (8x170)

09103-08137

Unavailable

4

BOLT (8x135)

09103-08038

Unavailable

5

BOLT (8X115)

09103-08098

$3.29

6

BOLT (8X100)

09103-08070

$5.57

7

BOLT This part replaces 01517-08905.

01550-0890B

$5.37

8

BOLT This part replaces 01517-08655.

01550-0865A

$3.51

9

BOLT This part replaces 01517-08605.

01550-0860A

$4.17

10

BOLT This part replaces 01517-08504.

01550-0850B

$4.17

11

BOLT This part replaces 01517-06855.

01550-0685B

$4.25

12

BOLT This part replaces 01517-06755.

01550-0675A

Unavailable

13

BOLT This part replaces 01517-06555.

01550-0655B

$3.30

14

BOLT This part replaces 01517-06404.

01550-0640A

$2.42

15

STUD BOLT

01421-06508

Unavailable

16

NUT This part replaces 09159-06017.

08319-31067

$2.03

17

NOZZLE, OIL GALLERY

09364-05005

$3.73

18

O-RING

09280-03003

$1.91

19

O-RING

09280-13001

$2.72

20

BOLT (10x290)

09104-10028

Unavailable

21

BOLT (10x180)

09104-10025

Unavailable

22

BOLT (10x165)

09100-10078

$12.70

23

BOLT (10x60)

09104-10015

Unavailable

24

NUT

09159-10028

Unavailable

25

NUT This part replaces 09159-10039.

09159-10064

$10.08

26

NUT

09159-10020

$5.18

27

WASHER, KNUCKLE END This part replaces 08322-11105.

08322-0110A

$1.84

28

WASHER This part replaces 08322-11108.

08322-01107

$2.15

29

WASHER This part replaces 09160-10084.

09160-10094

$3.16

30

WASHER This part replaces 09160-10063.

09160-10005

$1.87

31

LOCK WASHER This part replaces 08321-31108.

08321-01107

$1.84

32

RUBBER PAD, CRANKCASE

11252-25000

$4.52

33

PLUG This part replaces 09247-14012.

09247-14026

$3.76

34

GASKET

09168-14004

$1.83

35

CAP, OIL GALLERY

11394-45000

Unavailable

36

GASKET,OIL GALL This part replaces 11497-45000.

11497-45000-H17

Unavailable

37

SCREW This part replaces 02122-06168.

02122-06167

$1.49

38

HOUSING, SWITCH

16445-49010

Unavailable

39

O-RING

16448-45000

$8.89

40

BOLT This part replaces 01517-06254.

01550-0625A

$1.97

41

GASKET (5.8X13X1.2) This part replaces 09168-06015.

09168-06023

$2.35

42

SWITCH ASSY,OIL This part replaces 37820-45060.

37820-45061

$31.65

43

O-RING

09280-19001

$1.49

44

PLATE, OIL SEPARATER RH This part replaces 11521-49200.

11521-49201

Unavailable

45

PLATE, OIL SEPARATER LH This part replaces 11522-49200.

11522-49201

Unavailable

46

SCREW This part replaces 02112-06088.

02112-06087

$1.49

47

NO DESCRIPTION AVAILABLE This part replaces 34870-31300.

34870-31301

Unavailable
