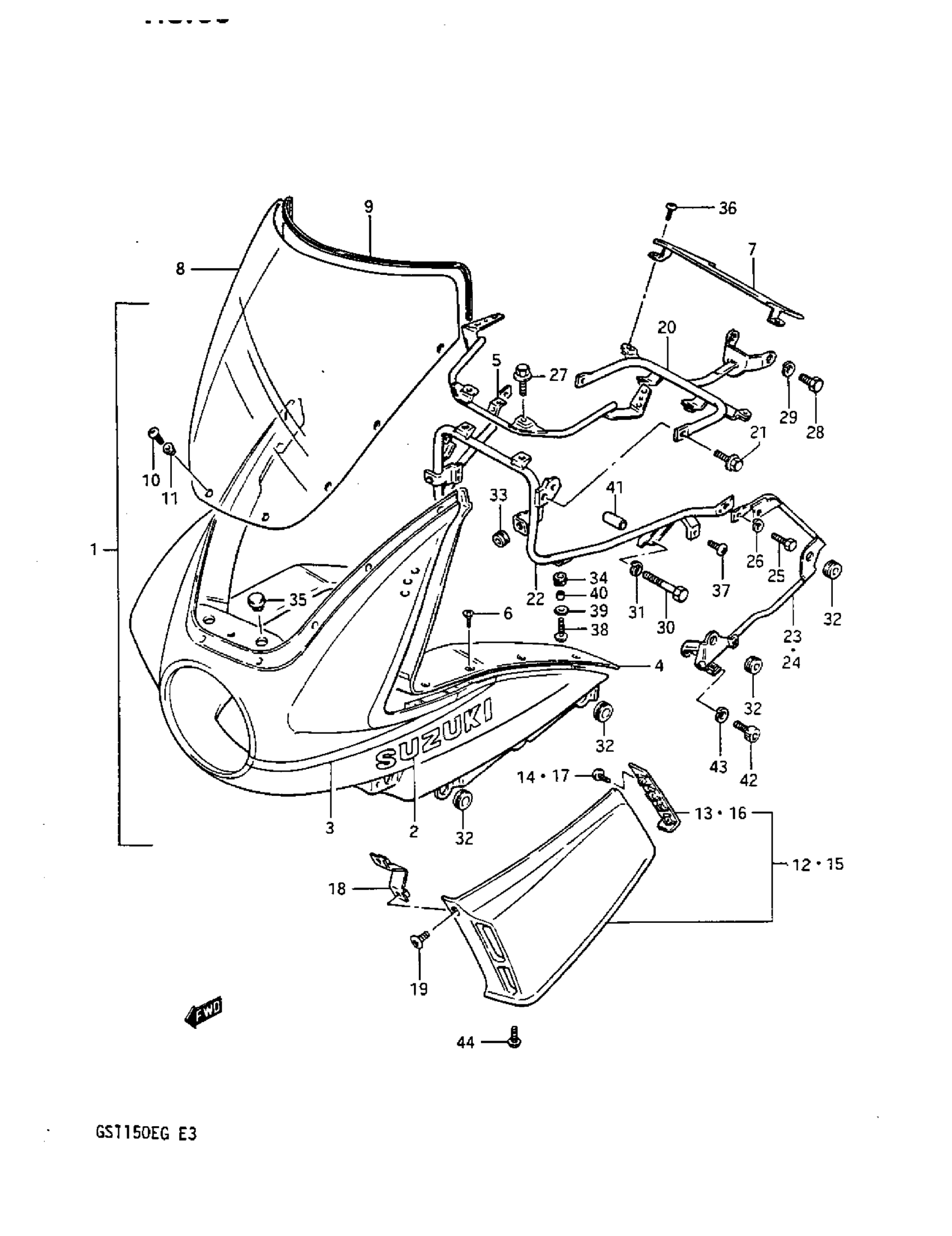

Suzuki GS1150 (1984) COWLING (F/F2) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 94400-00A31-7JH.

94400-00A01

Unavailable

1

NO DESCRIPTION AVAILABLE This part replaces 94400-00A31-7JJ.

94400-00A01

Unavailable

2

EMBLEM This part replaces 68193-00A40-22R.

68111-32B10-22R

Unavailable

3

TAPE SET

68190-00A30-019

Unavailable

4

NO DESCRIPTION AVAILABLE This part replaces 94420-00A00.

94420-00A01

Unavailable

5

BRACE

94560-00A00

Unavailable

6

SCREW This part replaces 03231-04104.

03221-0410A

$2.50

7

NO DESCRIPTION AVAILABLE This part replaces 94426-00A00.

94426-00A01

Unavailable

8

SCREEN

94611-00A10

Unavailable

9

MOLDING This part replaces 94631-00A00.

94631-44110

$41.58

10

SCREW

09139-05023

$1.67

11

CUSHION(5.5X11X This part replaces 09320-05008.

09320-05021

$2.57

12

NO DESCRIPTION AVAILABLE | FOR 7JH This part replaces 94430-00A50-12F.

94430-00A01-13L

Unavailable

12

NO DESCRIPTION AVAILABLE | FOR 7JJ This part replaces 94430-00A50-22P.

94430-00A01-13L

Unavailable

13

PANEL, RH

94432-00A00

Unavailable

14

SCREW (4x12) This part replaces 03541-04126.

03541-0412A

$1.37

15

NO DESCRIPTION AVAILABLE | FOR 7JH This part replaces 94440-00A50-12F.

94440-00A01-13L

Unavailable

15

NO DESCRIPTION AVAILABLE | FOR 7JJ This part replaces 94440-00A50-22P.

94440-00A01-13L

Unavailable

16

PANEL, LH

94442-00A00

Unavailable

17

SCREW (4x12) This part replaces 03541-04126.

03541-0412A

$1.37

18

BRACE, JOINT

94550-00A00

Unavailable

19

SCREW

02142-06167

$1.37

20

BRACE, FRONT

94510-00A00

Unavailable

21

BOLT This part replaces 01517-06163.

01550-0616A

$1.97

22

BRACE, REAR

94520-00A00

Unavailable

23

BRACE, SIDE, RH

94530-00A01

Unavailable

24

BRACE, SIDE, LH

94540-00A01

Unavailable

25

BOLT This part replaces 01107-06165.

01500-0616A

$1.77

26

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.83

27

BOLT This part replaces 01517-06163.

01550-0616A

$1.97

28

PLUG, DRAIN This part replaces 01107-08165.

01500-0816B

$2.50

29

LOCK WASHER This part replaces 08321-21084.

08321-0108A

$1.83

30

BOLT This part replaces 01107-08505.

01500-0850B

$4.10

31

LOCK WASHER This part replaces 08321-21084.

08321-0108A

$1.83

32

CUSHION, COVER

09320-08018

$2.80

33

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

$1.91

34

CUSHION, LOWER FRONT

09320-09016

$1.97

35

PLUG, PANEL

09250-18003

$2.67

36

SCREW This part replaces 02142-05105.

02142-0510B

$1.77

37

SCREW This part replaces 02142-06125.

02142-0612A

$1.37

38

SCREW This part replaces 02142-06205.

02142-0620A

$1.38

39

WASHER

09160-06056

$1.73

40

SPACER (6.5X9X9) This part replaces 09180-06011.

09180-06263

$1.68

41

NO DESCRIPTION AVAILABLE This part replaces 09180-08091.

09180-08207

Unavailable

42

BOLT This part replaces 07110-08165.

07130-0816A

$2.90

43

LOCK WASHER This part replaces 08321-21084.

08321-0108A

$1.83

44

SCREW

09139-05029

$1.98
