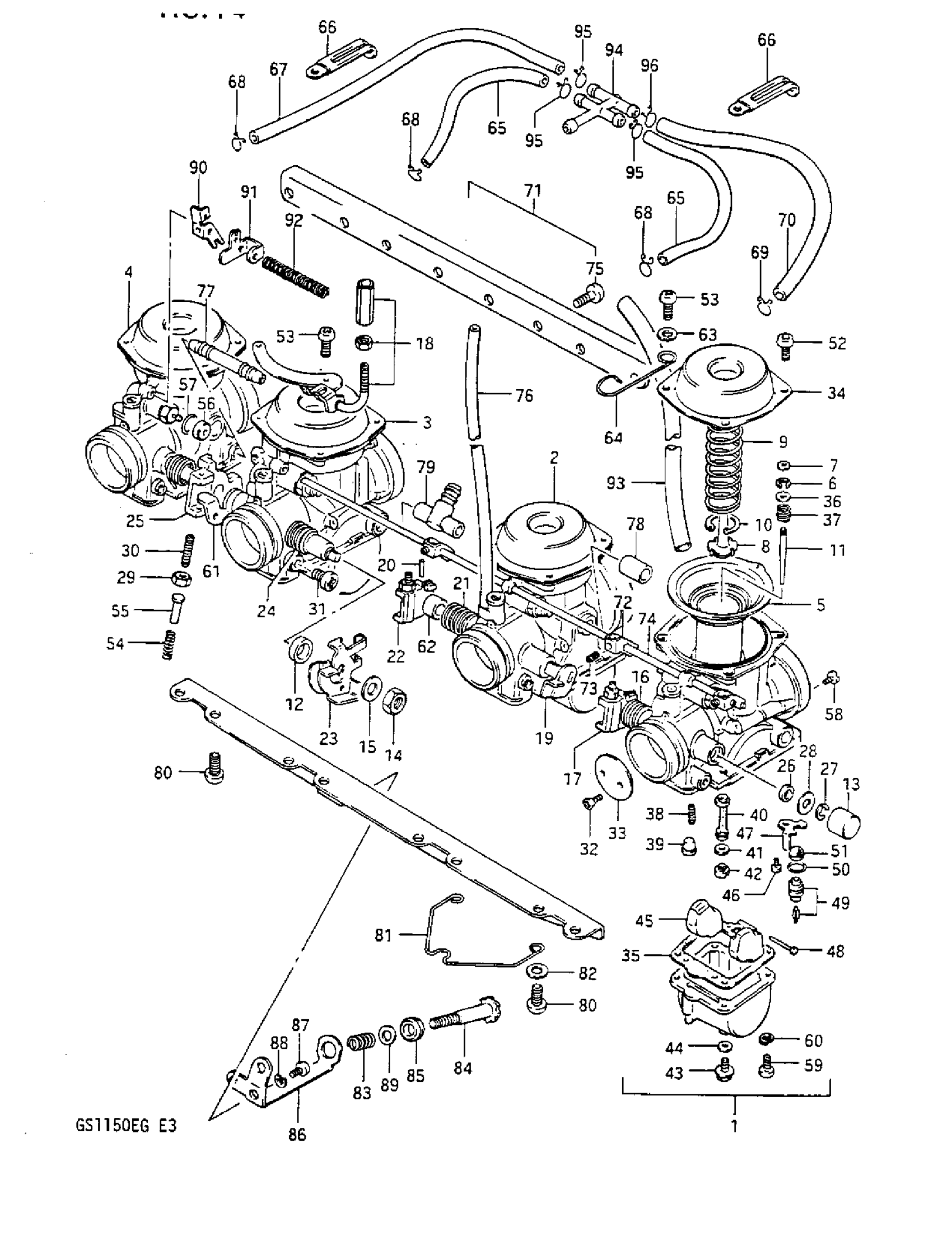

Suzuki GS1150 (1984) CARBURETOR (for F/F2 of CALIFORNIA) Diagram

#

Description
Price

1

CARBURETOR, LH

13201-00A40

Unavailable

2

CARBURETOR, ML

13202-00A40

Unavailable

3

CARBURETOR, MR

13203-00A40

Unavailable

4

CARBURETOR, RH

13204-00A40

Unavailable

5

DIAPHRAGM

13500-00A10

Unavailable

6

E RING

13394-31210

$4.64

7

RING

13387-44030

$5.83

8

GUIDE HOLDER

13389-44030

Unavailable

9

SPRING

13503-37100

Unavailable

10

CLIP

13581-44030

$6.78

11

NEEDLE, JET (5014)

13383-00A10

Unavailable

12

GASKET | MR

13557-49200

Unavailable

13

CAP | LH, RH This part replaces 13578-45530.

13578-47070

$4.52

14

NUT | MR This part replaces 08310-22088.

08310-00087

$2.13

15

WASHER | MR

13606-47070

Unavailable

16

SPRING | LH

13573-47070

Unavailable

17

SHAFT | LH

13550-00A10

Unavailable

18

BRACKET | MR This part replaces 13621-00A10.

13621-49220

Unavailable

19

SHAFT | ML

13550-00A20

Unavailable

20

PIN | ML

13563-47070

Unavailable

21

SPRING | ML

13573-45110

Unavailable

22

LEVER | ML

13553-47070

Unavailable

23

LEVER | MR

13555-47070

Unavailable

24

SPRING | MR, RH

13573-47080

Unavailable

25

SHAFT | RH

13550-00A40

Unavailable

26

SEAL This part replaces 13556-31210.

13651-51011

$2.20

27

E RING | LH, RH

13617-44080

$2.90

28

GASKET

13557-47070

$3.59

29

NUT | LH, ML, RH

13607-47070

$3.13

30

SCREW | LH, ML, RH

13605-47080

$7.77

31

SCREW | MR

13605-73000

$11.95

32

SCREW

13604-44080

$2.92

33

VALVE, THROTTLE (130)

13551-00A10

Unavailable

34

COVER, DIAPHRAGM

13502-00A20

Unavailable

35

GASKET,FLOAT CH This part replaces 13251-44080.

13251-44081-H17

$8.68

36

WASHER

13382-44030

$3.71

37

SPRING

13388-44030

$8.12

38

JET, PILOT (45)

09492-45016

$9.69

39

PLUG

13357-44080

$5.10

40

JET, NEEDLE (X-3)

09494-00468

Unavailable

41

WASHER, NEEDLE JET This part replaces 13332-44080.

13382-03110

$2.80

42

JET, MAIN (120) | LH, RH

09491-24016

$11.38

42

JET, MAIN (122.5) | ML, MR

09491-24013

$11.38

43

SCREW

13247-44080

$7.97

44

O-RING

13246-44080

$2.80

45

FLOAT

13250-44080

$28.49

46

SCREW This part replaces 02112-04068.

02112-0406B

$1.55

47

PLATE

13373-11400

$7.05

48

PIN

13254-92311

$2.07

49

VALVE ASSY, NEEDLE (2.0) This part replaces 13370-11400.

13370-44500

$50.98

50

O RING This part replaces 13374-44080.

13374-35C00

$5.99

51

FILTER This part replaces 13376-65010.

13376-19F00

$10.28

52

SCREW, THROTTLE | LH:3, ML:4, MR:2, RH:4 This part replaces 02112-05105.

02112-0510A

$1.49

53

SCREW | LH:1, MR:2 This part replaces 02112-05125.

02112-0512A

$1.49

54

SPRING | LH, ML, RH

13268-44010

Unavailable

55

PIN | LH, ML, RH

13575-47070

Unavailable

56

.CAP, STARTER VALVE

13682-31210

$4.37

57

.O RING (16) This part replaces 13278-47090.

13278-47091

$1.90

58

JET, PILOT AIR (120)

09493-24005

Unavailable

59

SCREW This part replaces 02112-05165.

02112-05164

$2.63

60

LOCK WASHER This part replaces 08321-21055.

08321-0105A

$1.84

61

SHAFT | MR

13550-00A30

Unavailable

62

RING | ML

13387-44210

Unavailable

63

WASHER, FRONT | LH This part replaces 13606-00A10.

08322-0105A

$1.84

64

CLIP | LH

13692-00A20

Unavailable

65

NO DESCRIPTION AVAILABLE | ML, MR This part replaces 13683-00A50.

13683-06A10

Unavailable

66

CLAMP | LH, MR This part replaces 09404-06401.

09404-06039

$1.74

67

NO DESCRIPTION AVAILABLE | RH This part replaces 13683-00A60.

13683-06A10

Unavailable

68

CLIP | ML, MR, RH

13671-11300

Unavailable

69

CLIP | LH

13671-05A40

$3.71

70

HOSE (5X9X270) | LH This part replaces 13683-00A70.

13683-06A00

Unavailable

71

FLANGE ASSY

13210-00A10

Unavailable

72

LEVER This part replaces 13422-49330.

13422-44080

Unavailable

73

SCREW This part replaces 13605-49330.

13605-47070

Unavailable

74

SHAFT

13410-49200

Unavailable

75

SCREW This part replaces 02112-05125.

02112-0512A

$1.49

76

HOSE(4.5X8.5X60 This part replaces 13683-45110.

09355-45001-600

$9.48

77

NIPPLE

13685-49210

$17.09

78

HOSE(6.5X11.5X6 | L:254->18 This part replaces 13683-44080.

09355-65001-600

$12.00

79

NIPPLE

13685-49200

Unavailable

80

SCREW This part replaces 02112-06125.

02112-0612A

$1.49

81

CLIP

13619-49210

Unavailable

82

WASHER

13615-49200

Unavailable

83

SPRING

13271-93011

$5.32

84

ADJUSTER, SLOW This part replaces 13267-43420.

13267-34390

Unavailable

85

BUSH

13276-34390

Unavailable

86

BRACKET This part replaces 13627-00A10.

13627-44120

Unavailable

87

SCREW, THROTTLE This part replaces 02112-05105.

02112-0510A

$1.49

88

LOCK WASHER This part replaces 08321-21055.

08321-0105A

$1.84

89

WASHER This part replaces 13432-34390.

13427-38300

$1.92

90

LEVER This part replaces 13413-49360.

13413-49220

Unavailable

91

LEVER This part replaces 13421-49360.

13421-49220

Unavailable

92

SPRING

13437-49360

Unavailable

93

HOSE | LH L:1000->900, MR L:1000 This part replaces 13683-00A40.

09352-50005-00B

$13.93

94

NIPPLE

17271-05A00

Unavailable

95

CLIP

13671-11300

Unavailable

96

CLIP

13671-05A40

$3.71
