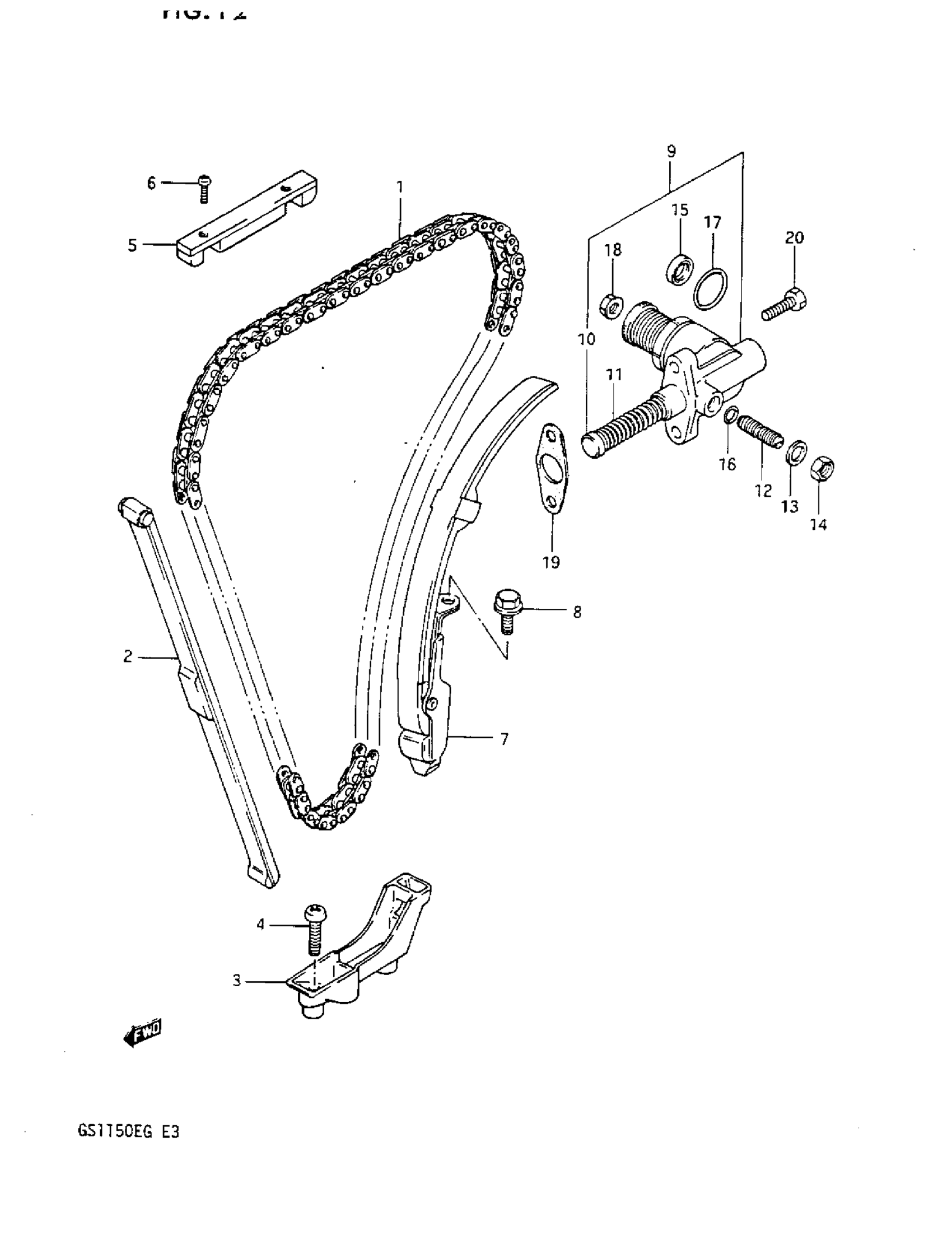

Suzuki GS1150 (1984) CAM CHAIN Diagram

CHAIN, CAM SHAFT DRIVE (120L) This part replaces 12760-49011.

12760-45040

$149.60

GUIDE,CAM CHAIN This part replaces 12771-45052.

12771-45053

$40.00

HOLDER, GUIDE

12776-49000

Unavailable

SCREW This part replaces 02112-06208.

02112-06207

$1.78

GUIDE, CAM CHAIN (H:10)

12782-49200

$44.07

SCREW This part replaces 02112-05128.

02112-05127

$1.97

TENSIONER,CAM C This part replaces 12810-49250.

12810-49251

Unavailable

BOLT M8X16 This part replaces 01517-08168.

01550-08167

$2.85

ADJUSTER ASSY,T This part replaces 12830-47011.

12830-0930V

Unavailable

PUSH ROD

12833-47001

Unavailable

SPRING

09440-12017

$2.45

SCREW This part replaces 12838-45010.

12838-45001

$8.42

WASHER This part replaces 08322-11085.

08322-0108A

$1.92

NUT This part replaces 08310-11085.

08310-0008A

$1.84

OIL SEAL

09284-10006

$3.42

.O RING (D:1.9,ID:5.7)

09280-06005

$1.49

O-RING

09280-21013

$2.28

NUT This part replaces 08316-16064.

08316-1006B

$2.50

GKT,TENSIONER A This part replaces 12837-31310.

12837-47010

$4.22

BOLT, STARTING MOTOR This part replaces 09128-06022.

09103-06212

$2.47
