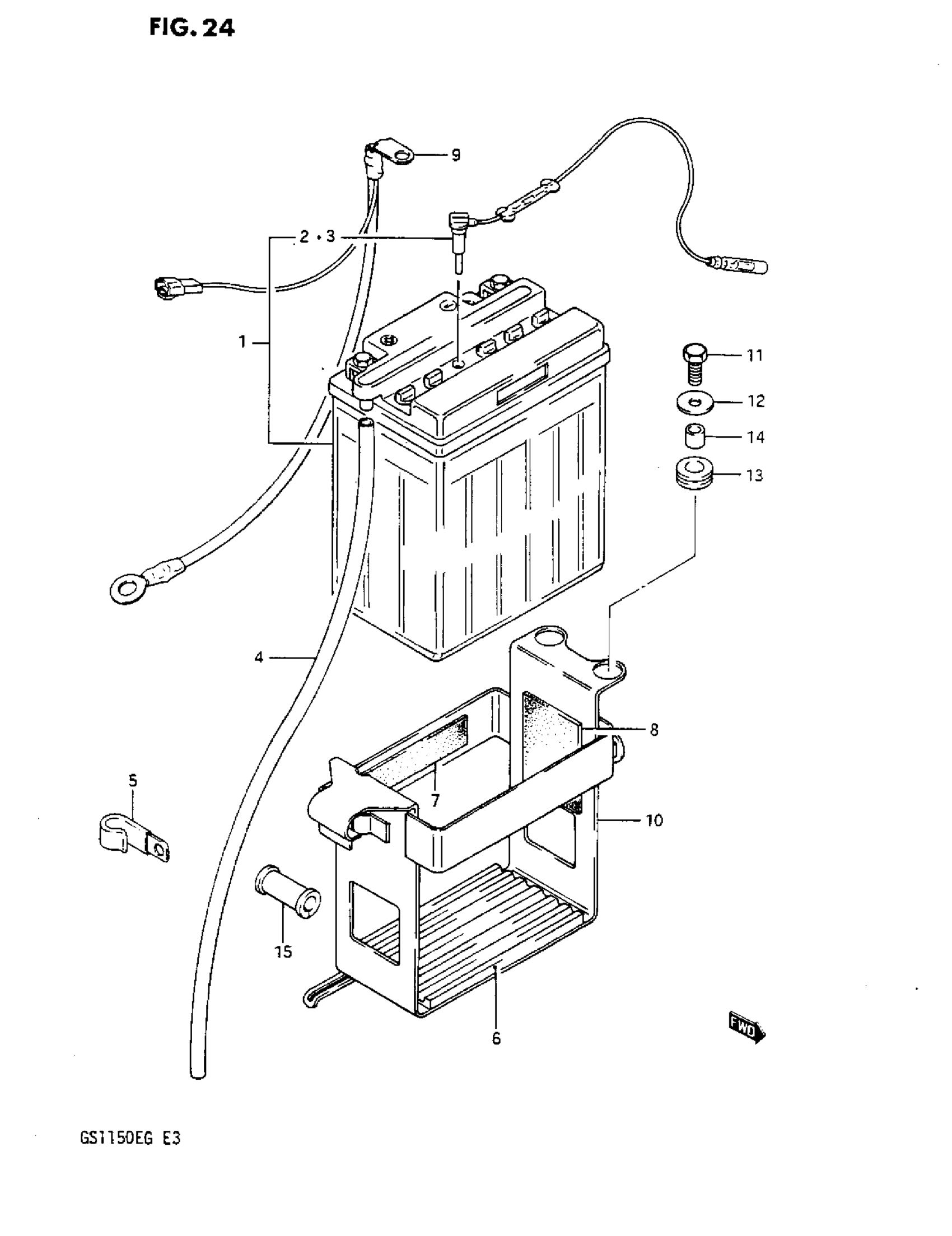

Suzuki GS1150 (1984) BATTERY Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | YUASA This part replaces 33610-00A30.

33610-00A10

Unavailable

2

SENSOR, BATTERY LEVEL | YUASA

33617-00A10

Unavailable

3

SENSOR, BATTERY LEVEL | FB

33617-00A20

Unavailable

4

HOSE,BATTERY EX This part replaces 33680-31003.

33680-16A11

$6.78

5

CLAMP This part replaces 09403-09303.

09403-09003

$2.20

6

CUSHION

33651-31000

$18.02

7

PROTECTOR | CUT AS REQUIRED PROFILE

33651-37000

$4.48

8

CUSHION, REAR FENDER REAR This part replaces 33652-08410.

33651-37000

$4.48

9

LEAD WIRE,

33850-38420

$17.93

10

HOLDER, BATTERY

41540-00A00

Unavailable

11

BOLT This part replaces 01107-06166.

01500-0616A

$1.78

12

WASHER (6.5X20X1.6) This part replaces 09160-06020.

09160-06066

$1.89

13

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.97

14

SPACER (6.1X9X7.5)

09180-06038

$1.98

15

CUSHION This part replaces 09320-08022.

09320-08522

$2.57
