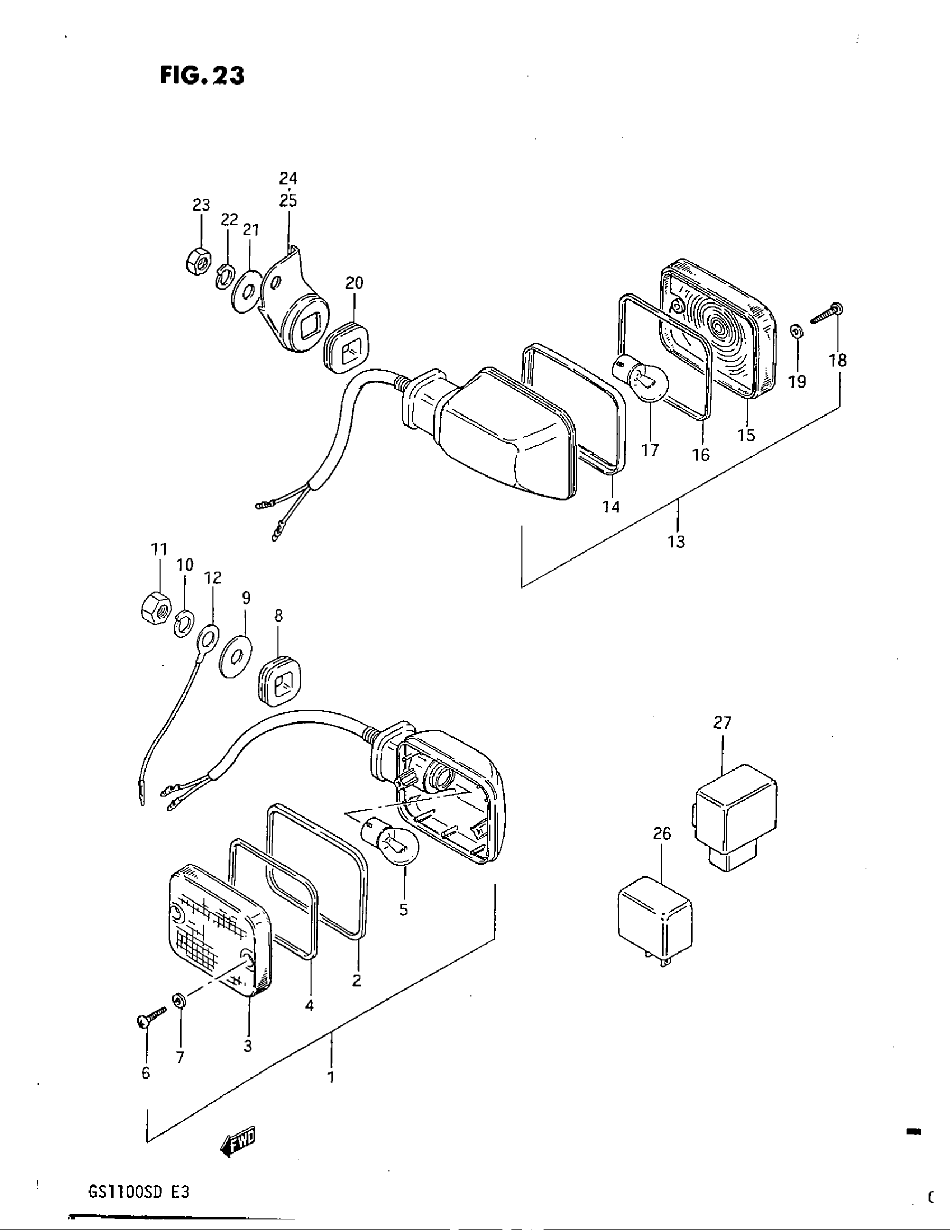

Suzuki GS1100S (1983) TURN SIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY,FRT T This part replaces 35601-45510.

35601-44490-999

$111.78

1

LAMP, FRONT TURN SIGNAL | OPT; Includes Item(s) 2 - 7

35601-49330

Unavailable

2

RIM

35611-49230

$13.28

3

LENS

35612-49231

$17.75

3

LENS | OPT

35612-49010

Unavailable

4

GASKET

35613-49230

$5.38

5

BULB (12V,23W)

09471-12006

$3.98

5

BULB (12V,23/8W) | OPT

09471-12035

$4.49

6

SCREW This part replaces 03211-04208.

03211-04207

$1.49

7

GASKET

35627-43010

$2.28

8

CUSHION

09320-15005

$4.92

9

WASHER, UPPER, OUTER This part replaces 09160-10006.

09160-10501

$2.33

10

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

11

NUT This part replaces 08310-12108.

08310-00107

$2.19

12

LEAD WIRE, EARTH | OPT This part replaces 36851-49500.

36851-49000

Unavailable

13

NO DESCRIPTION AVAILABLE | Includes Item(s) 14 - 19 This part replaces 35601-45530.

35601-45570-999

Unavailable

14

RIM

35611-49230

$13.28

15

LENS

35612-49231

$17.75

16

GASKET

35613-49230

$5.38

17

BULB (12V,23W)

09471-12006

$3.98

18

SCREW This part replaces 03211-04208.

03211-04207

$1.49

19

GASKET

35627-43010

$2.28

20

CUSHION

09320-15002

$4.11

21

WASHER, UPPER, OUTER This part replaces 09160-10006.

09160-10501

$2.33

22

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

23

NUT This part replaces 08310-12108.

08310-00107

$2.19

24

BRACKET, REAR RH

35620-49300

Unavailable

25

BRACKET, REAR LH

35640-49300

Unavailable

26

RELAY, TURN SIGNAL

38610-49231

Unavailable

27

UNIT,TURN SIG C This part replaces 38830-49500.

38830-49X00

Unavailable
